REAR FENDER CX500D

CX500D DELUXE 1980 (A) USA

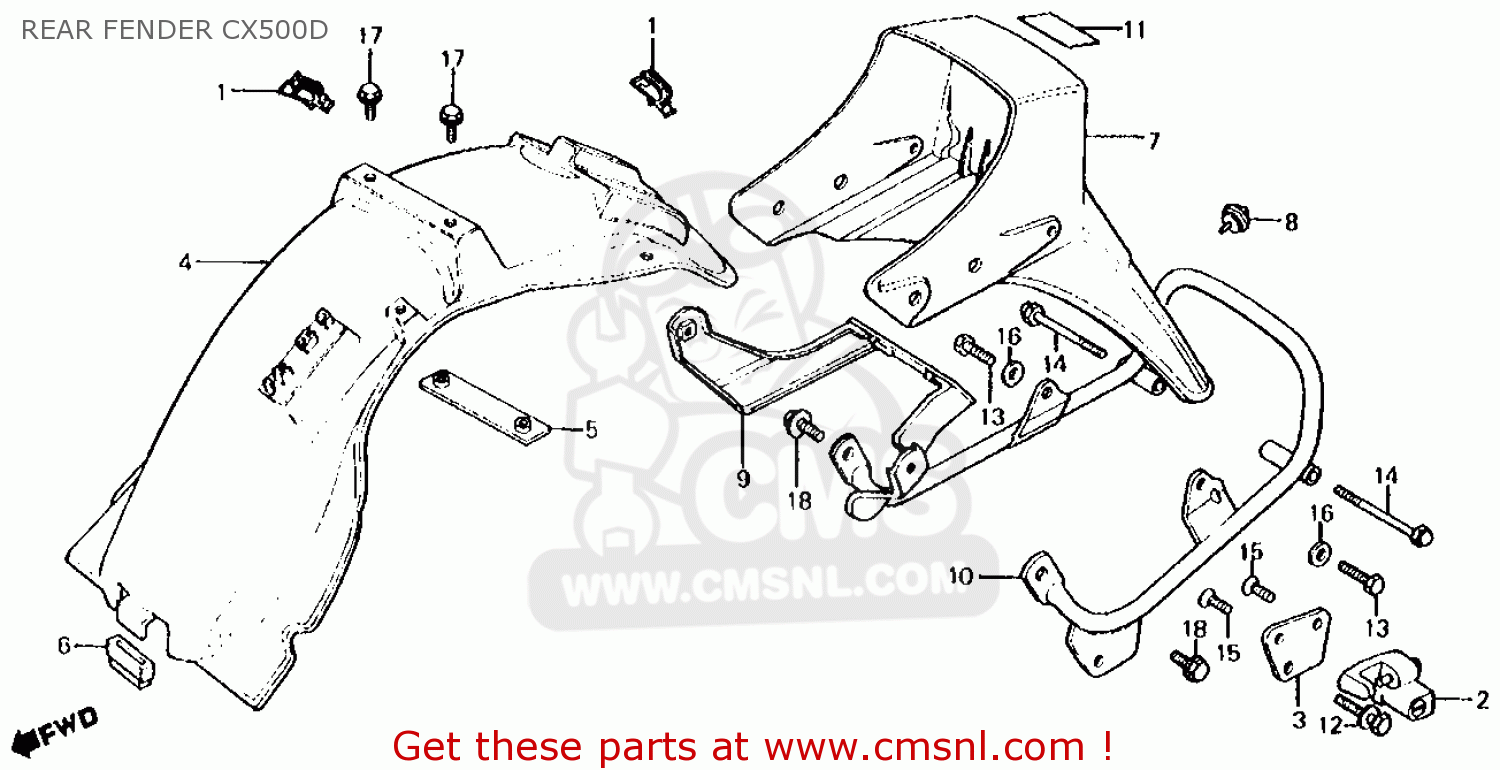

Rear fender cx500d schéma CX500D DELUXE 1980 (A) USA

REAR FENDER CX500D CX500D DELUXE 1980 (A) USA
REAR FENDER CX500D CX500D DELUXE 1980 (A) USA
les prix sont en EUR
ref
pièce #
description
quantité
1
32161393003
ref: 1
CLIP, WIRE HARNES
32161393003
€ 4.50
2
50710086007
ref: 2
HOLDER,HELMET
50710086007
€ 33.50
2
50710371007
ref: 2
HOLDER,HELMET
€ 33.50
3
50715415000
ref: 3
PLATE,HELMET HOL.
50715415000
€ 8.50
4
80100415880
ref: 4
FENDER,REAR
80100415880
€ 202.00
5
80110415000
ref: 5
PLATE,RR.FENDER
80110415000
€ 5.00
6
80115415000
ref: 6
RUBB,FENDERCUSHON
80115415000
€ 3.50
7
80500415000ZE
ref: 7
COWL,RR.*R-8C-S*
80500415000ZE
€ 171.50
8
80501415000
ref: 8
PLUG,RR.COWL
80501415000
€ 4.00
9
80510415000
ref: 9
STAY,RR.COWL
80510415000
€ 22.50
10
84101415000
ref: 10
BUMPER,RR.
84101415000
€ 126.50
11
87505415880
ref: 11
MARK,TIRE CAUTION
€ 5.00
12
90105413000
ref: 12
BOLT, SPEC. 8X16
90105413000
€ 10.00
13
92000080200B
ref: 13
BOLT,HEX.8X20
92000080200B
€ 1.50
14
92600060700B
ref: 14
BOLT HEX CAP 6X70
92600060700B
€ 4.50
15
9360006010
ref: 15
SCREW CROSS 6X10
9360006010
€ 1.00
15
93600060100A
ref: 15
SCREW,FLAT,6X10
93600060100A
€ 1.00
16
9410108200
ref: 16
WASHER 8MM
9410108200
€ 1.00
17
957000601608
ref: 17
BOLT,FLANGE,6X16
957000601608
€ 1.00
17
957010601608
ref: 17
BOLT,FLANGE,6X16
957010601608
€ 1.00
17
959000601608
ref: 17
BOLT,FLANGE,6X16
€ 1.00
18
957000801600
ref: 18
BOLT,FLANGE,8X16
957000801600
€ 1.00
18
957010801600
ref: 18
BOLT FLANGE 8X16
957010801600
€ 1.00
