REAR BRAKE PANEL

CX500D DELUXE 1980 (A) USA

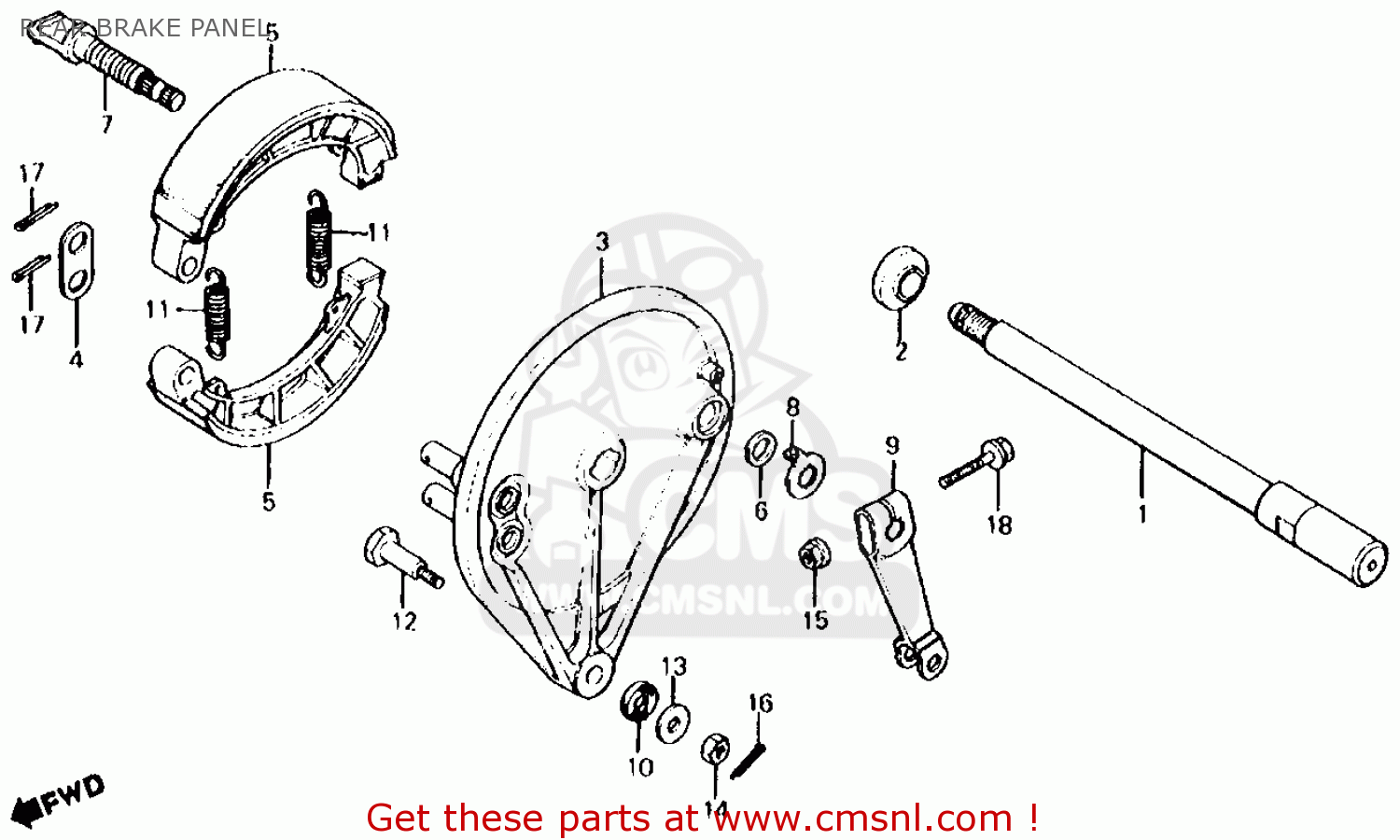

Rear brake panel schéma CX500D DELUXE 1980 (A) USA

REAR BRAKE PANEL CX500D DELUXE 1980 (A) USA
REAR BRAKE PANEL CX500D DELUXE 1980 (A) USA
les prix sont en EUR
ref
pièce #
description
quantité
1
42301415000
ref: 1
AXLE,RR.WHEEL
42301415000
€ 52.00
2
42311415000
ref: 2
COLLAR,PANEL SIDE
42311415000
€ 7.50
3
43100415010
ref: 3
PANEL COMP.,RR.
43100415010
€ 189.00
4
43102319000
ref: 4
WASHER,ANCHER PIN
43102319000
€ 3.50
4
43106222300
ref: 4
WASHER BRAKE PIN
43106222300
€ 3.50
5
43120MW3671
ref: 5
SHOE COMP.,RR.BRA (NAS)
43120MW3671
€ 50.50
6
43134300000
ref: 6
SEAL BRAKE CAM
43134300000
€ 2.00
7
43141415000
ref: 7
CAM,RR.BRAKE
43141415000
€ 21.00
8
43145415000
ref: 8
INDICATOR,BRAKE
43145415000
€ 5.00
9
43410415000
ref: 9
4104710
ARM,RR BRAKE
43410415000
€ 21.00
9
43410415750
ref: 9
ARM,RR.BRAKE
43410415750
€ 17.00
10
43434286000
ref: 10
RUBBER CUSHION
43434286000
€ 2.50
11
45133329000
ref: 11
SPRING,FR.BRAKE
45133329000
€ 3.50
12
90127393000
ref: 12
BOLT,RR.BRAKE
90127393000
€ 4.50
13
90505425000
ref: 13
WASHER,8MM
90505425000
€ 3.00
13
90524030000
ref: 13
WASHER, HANDLE
90524030000
€ 2.00
16
9420120180
ref: 16
PIN,SPLIT, 2.0
9420120180
€ 1.00
16
9420120200
ref: 16
PIN COTTER 2.0MM
9420120200
€ 1.00
16
9420120220
ref: 16
PIN,SPLIT, 2.0
9420120220
€ 1.00
16
9420120250
ref: 16
PIN,SPLIT, 2.0
9420120250
€ 1.00
16
9420120280
ref: 16
PIN,SPLIT, 2.0
9420120280
€ 1.00
16
9420120320
ref: 16
PIN COTTER 2.0MM
€ 1.00
16
9420120350
ref: 16
PIN COTTER 2.0MM
9420120350
€ 1.00
16
9420129220
ref: 16
PIN SPLIT 2,0 X 22
€ 1.00
17
9420125200
ref: 17
PIN COTTER 2.5MM
9420125200
€ 1.00
17
9420125250
ref: 17
PIN COTTER 2.5MM
9420125250
€ 1.00
17
9420125300
ref: 17
PIN COTTER 2.5MM
9420125300
€ 1.00
18
957000804000
ref: 18
BOLT,FLANG,8X40
957000804000
€ 1.50
18
957010804000
ref: 18
BOLT,FLANGE,8X40
957010804000
€ 1.50
