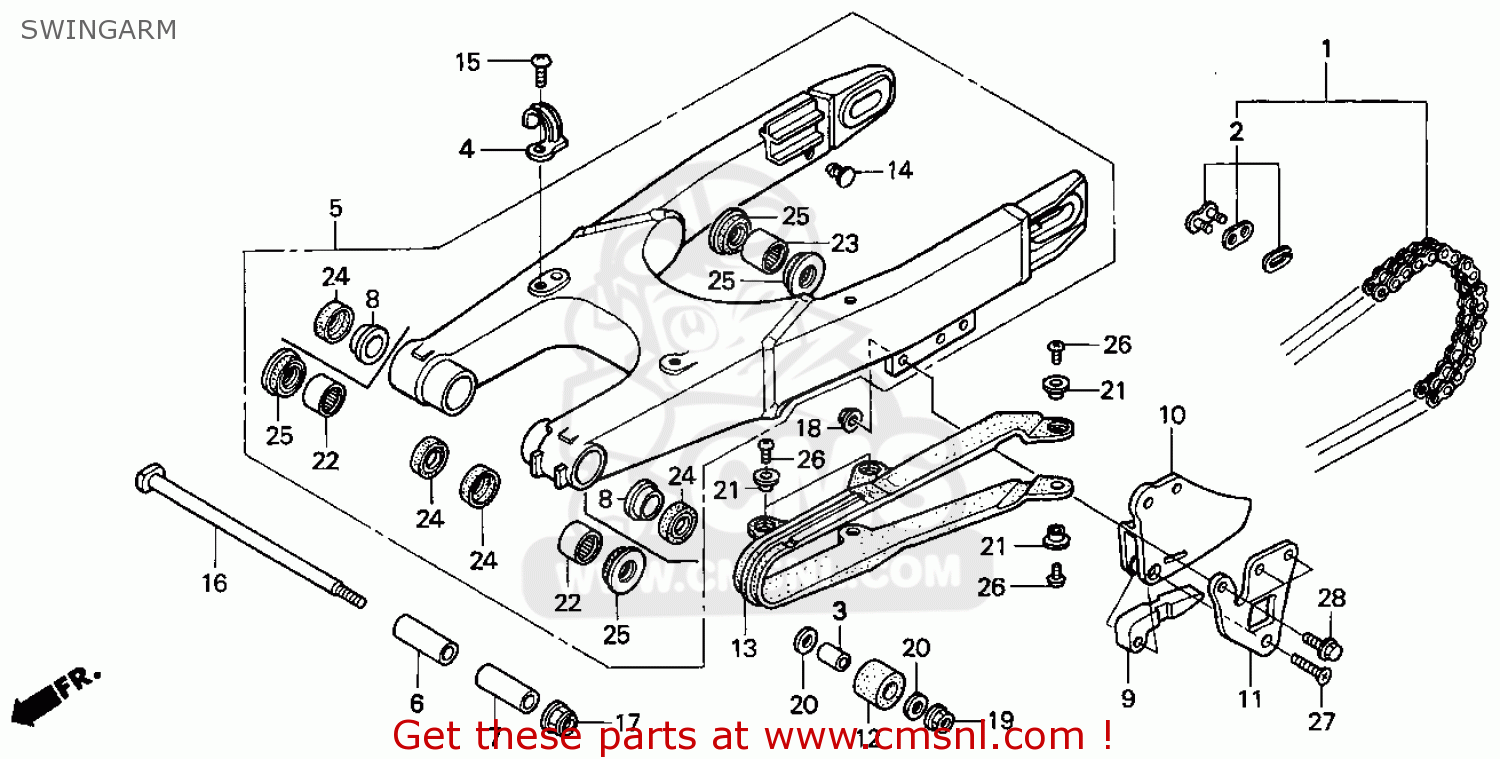

SWINGARM

ref

pièce #

description

quantité

1

405W3GC5505
ref: 1

CHAIN,DRIVE

€ 29.00

1

40530GW6003
ref: 1

CHAIN,DRIVE (420M

€ 29.00

2

40531GT5003
ref: 2

JOINT,DRIVE CHAIN

€ 4.00

3

43435392000
ref: 3

COLLAR,LINK

€ 7.50

4

43468KAE000
ref: 4

GUIDE,RR BRK HOSE

€ 5.00

5

52100GBF830
ref: 5

SWINGARM ASSY,RR

€ 446.00

6

52141GBF830
ref: 6

COLLAR,SWINGARM R

€ 15.00

7

52142GBF830
ref: 7

COLLAR,SWINGARM L

€ 13.00

9

52147GM7701
ref: 9

SLIDER,CHAIN GUID

€ 14.00

10

52156GM7700
ref: 10

GUIDE

€ 23.50

11

52157GS2770
ref: 11

PLATE,CHAIN GUIDE

€ 20.00

12

52158GBF830
ref: 12

ROLLAR,CHAIN TENS

€ 21.00

13

52170GBF831
ref: 13

SLIDER,CHAIN

€ 35.50

14

80103192600
ref: 14

PLUG,RR.FENDER

€ 2.50

15

90104ML7920
ref: 15

SCREW,PAN,5X10

€ 3.00

16

90121GBF830
ref: 16

BOLT,SWINGARM PIV

€ 31.50

17

90201GC4000
ref: 17

NUT,FLANGE,14MM

€ 4.00

18

90301473003
ref: 18

NUT,U.,6MM

€ 4.00

19

90309KF0003
ref: 19

NUT,FLANGE 8MM

€ 4.50

19

90309428731
ref: 19

NUT,FLANGE,8MM

€ 4.50

20

90485040000
ref: 20

WASHER 8MM

€ 3.00

21

90520134000
ref: 21

WASHER,HDLP.SET

€ 3.00

22

91070GC4601
ref: 22

NEEDLE BRG

€ 14.00

23

91075GBF831
ref: 23

BRG,NEEDLE,20X26X

€ 17.50

24

91254KS6003
ref: 24

DUST SEAL,20X26X4

€ 9.50

25

91262GBF831
ref: 25

DUST SEAL,20X26X4

€ 7.50

26

93500050120G
ref: 26

SCREW,CROSS 5X12

€ 0.50

27

93600060350A
ref: 27

SCREW,FLAT,6X35

€ 1.00

28

960010602200
ref: 28

BOLT,FLANGE,6X22

€ 1.50
