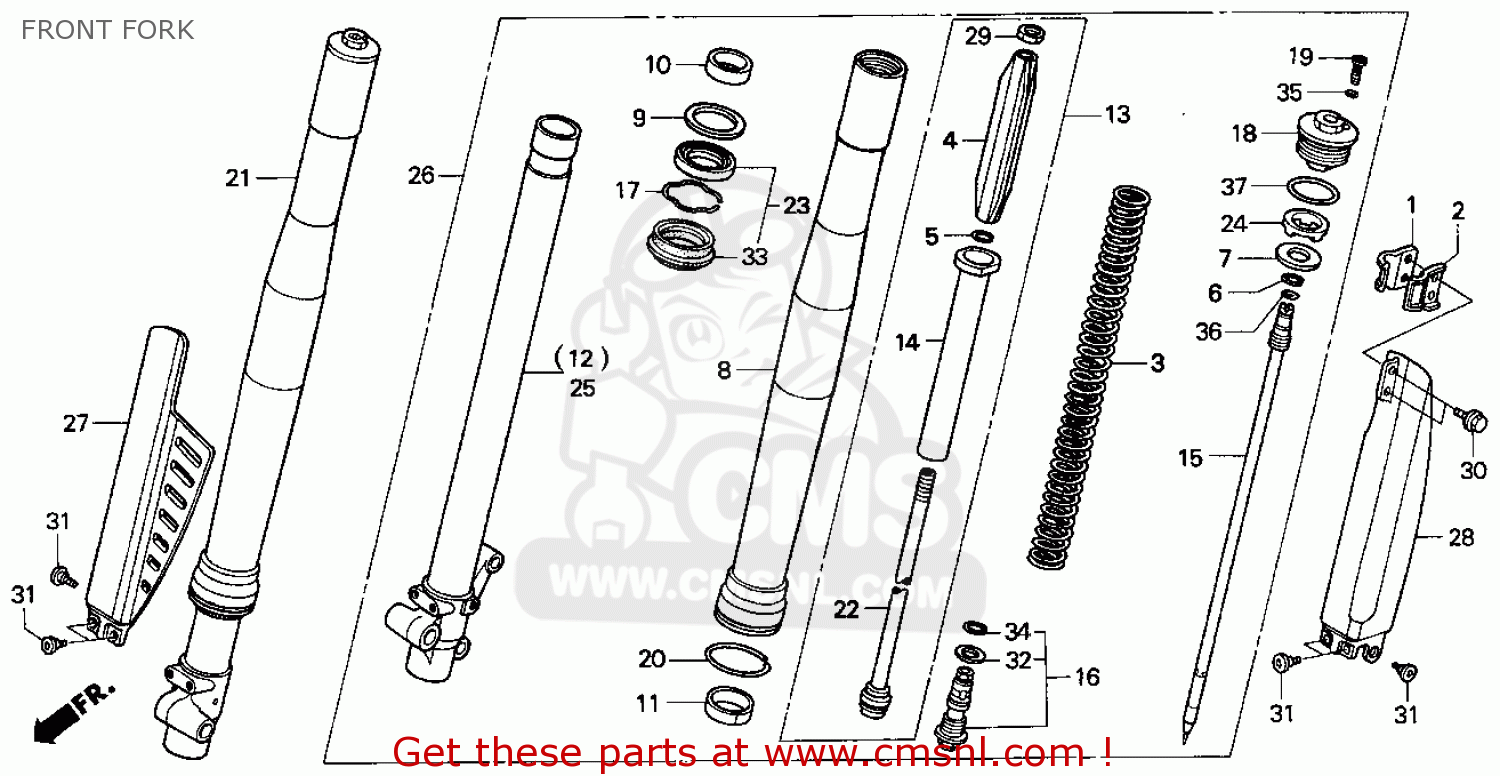

FRONT FORK

ref

pièce #

description

quantité

1

45461MG3650
ref: 1

CLAMPER A,BRK.

€ 7.50

2

45462MG3650
ref: 2

CLAMPER B,BRK.

€ 8.00

3

51401GBF831
ref: 3

SPRING,FR FORK (0

€ 30.50

3

51402GBF831
ref: 3

SPRG,FR FRK (0.2)

€ 26.00

3

51401GBF861
ref: 3

SPRING,FR FORK (0

€ 32.00

4

51404GBF831
ref: 4

GUIDE,SPRING

€ 32.50

5

51405GBF831
ref: 5

RING,STOPPER

€ 5.50

6

51405MC7003
ref: 6

RING,STOPPER

€ 3.00

7

51408GBF831
ref: 7

SEAT,SPRING

€ 5.50

8

51410GBF831
ref: 8

TUBE,OUTER

€ 339.50

9

51412461003
ref: 9

RING,BACK UP

€ 5.50

10

51414GBF831
ref: 10

BUSH,GUIDE

€ 14.50

11

51415GBF831
ref: 11

BUSH,SLIDE

€ 12.50

12

51420GBF831
ref: 12

PIPE COMP,R SLIDE

€ 287.50

13

51430GBF831
ref: 13

DAMPER COMP,FR

€ 234.00

14

51431GBF831
ref: 14

DAMPER SUB COMP,F

€ 199.50

15

51436GBF831
ref: 15

NEEDLE COMP,REBOU

€ 27.00

15

51436GBFJ01
ref: 15

NEEDLE COMP,REBOU

€ 27.00

16

51441GBF831
ref: 16

BOLT COMP,CENTER

€ 85.00

17

51447KR6003
ref: 17

RING,OIL SEAT STO

€ 3.50

18

51450GBF831
ref: 18

BOLT,FR FORK

€ 66.50

19

51456KZ3731
ref: 19

BOLT,PLUG (SHOWA)

€ 8.00

20

51476GBF831
ref: 20

RING,WEAR

€ 4.00

21

51480GBF831
ref: 21

FORK SUB ASSY,R F

€ 683.00

22

51481GBF831
ref: 22

ROD COMP,PISTON

€ 66.50

23

51490GBF831
ref: 23

SEAL SET,FR FORK

€ 24.50

24

51517GBF831
ref: 24

RUBBER,STOPPER

€ 5.50

25

51520GBF831
ref: 25

PIPE COMP,L SLIDE

€ 287.50

26

51580GBF831
ref: 26

FORK SUB ASSY,L F

€ 683.00

27

51610GBF830ZA
ref: 27

PROTECTOR,*R177R*

€ 45.00

28

51620GBF830ZA
ref: 28

PROTECTOR,*R177R*

€ 45.00

29

52482GBF831
ref: 29

NUT,HEX

€ 2.00

30

90113KZ3000
ref: 30

BOLT,FLANGE,6MM

€ 3.00

31

90113MAC680
ref: 31

BOLT,PROTECTOR

€ 4.00

32

90544KZ3003
ref: 32

WASHER,SPECIAL

€ 3.00

33

91254GBF831
ref: 33

SEAL,DUST

€ 10.00

34

91256GC5003
ref: 34

O RING,15.5X1.5

€ 3.00

35

91301KZ3731
ref: 35

O-RING,2.8X1.9 (S

€ 1.50

36

91310MJ0003
ref: 36

O-RING

€ 2.00

37

91356MW0003
ref: 37

O-RING,37.2X2.4

€ 3.00
