RADIATOR (CBF600N/NA)

CBF600NA 2004 (4) ENGLAND / MPH

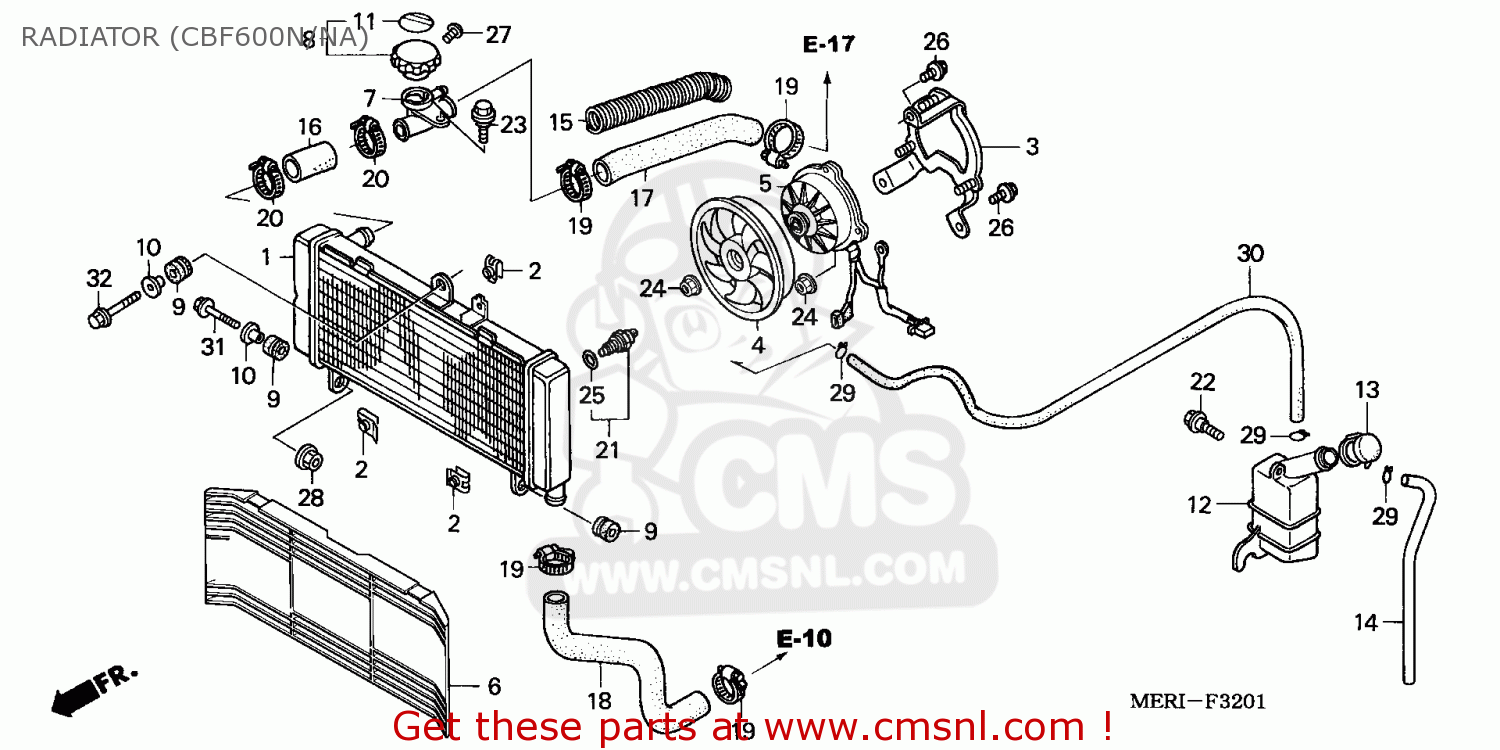

Radiator (cbf600n/na) schéma CBF600NA 2004 (4) ENGLAND / MPH

RADIATOR (CBF600N/NA) CBF600NA 2004 (4) ENGLAND / MPH
RADIATOR (CBF600N/NA) CBF600NA 2004 (4) ENGLAND / MPH
les prix sont en EUR
ref
pièce #
description
quantité
1
19010MERD11
ref: 1
RADIATOR COMP
€ 689.50
2
19014KEA003
ref: 2
SET,NUT
19014KEA003
€ 3.50
3
19015MERD01
ref: 3
SHROUD COMP
19015MERD01
€ 91.50
4
19020MCF013
ref: 4
FAN COMP,COOLING
19020MCF013
€ 61.50
5
19030MERD01
ref: 5
MOTOR ASSY,FAN
19030MERD01
€ 435.50
6
19032MCZ010
ref: 6
GRILL,RADIATOR
€ 88.50
7
19039MERD10
ref: 7
FILLER NECK
€ 13.50
8
19045MY3621
ref: 8
CAP COMP.RAD.
19045MY3621
€ 41.00
9
19051KA3830
ref: 9
RUBBER,RAD.MOUNT
19051KA3830
€ 5.00
10
19052MN8000
ref: 10
COLLAR,RAD MT
19052MN8000
€ 4.50
11
19055MV9881
ref: 11
SEAL,RAD.CAP
19055MV9881
€ 7.50
12
19101MERD00
ref: 12
TANK,RESERVE
19101MERD00
€ 42.50
13
19104MB0700
ref: 13
CAP,RESERVE TANK
19104MB0700
€ 8.50
14
19105MERD00
ref: 14
TUBE,5.3X1500
19105MERD00
€ 12.50
15
19120MBZG00
ref: 15
PROTECTOR,RAD.UP
19120MBZG00
€ 19.50
16
19501MERD10
ref: 16
HOSE,RAD UPPER A
19501MERD10
€ 5.00
17
19502MERD10
ref: 17
HOSE,RAD UPPER B
19502MERD10
€ 8.50
18
19503MERD00
ref: 18
HOSE RAD.LWR.
19503MERD00
€ 21.50
19
19516GAG003
ref: 19
CLAMP,HOSE,3037
19516GAG003
€ 8.50
20
19516MERD10
ref: 20
CLAMP,HOSE 30-37
19516MERD10
€ 12.50
21
37760MT2003
ref: 21
SWITCH ASSY.,THER
37760MT2003
€ 83.00
22
90111162000
ref: 22
BOLT,FLANGE,6MM
90111162000
€ 3.00
23
90111187000
ref: 23
BOLT,FLANGE 6MM
90111187000
€ 4.00
24
90315MK3003
ref: 24
NUT,SERRAT,5MM
90315MK3003
€ 3.00
25
91307611000
ref: 25
O-RING 13.5X1.4
91307611000
€ 3.00
26
934010601408
ref: 26
BOLT,WASH,6X14
€ 2.00
27
9390122180
ref: 27
SCREW,TAPPING 3X8
9390122180
€ 0.50
28
9405006070
ref: 28
NUT,FLANGE,6MM
9405006070
€ 1.50
30
950055555020
ref: 30
TUBE 5.5X550
€ 15.50
31
960010602500
ref: 31
BOLT,FLANGE,SH,6X25
960010602500
€ 1.50
32
960010602807
ref: 32
BOLT,FLANGE,6X28
960010602807
€ 1.50
