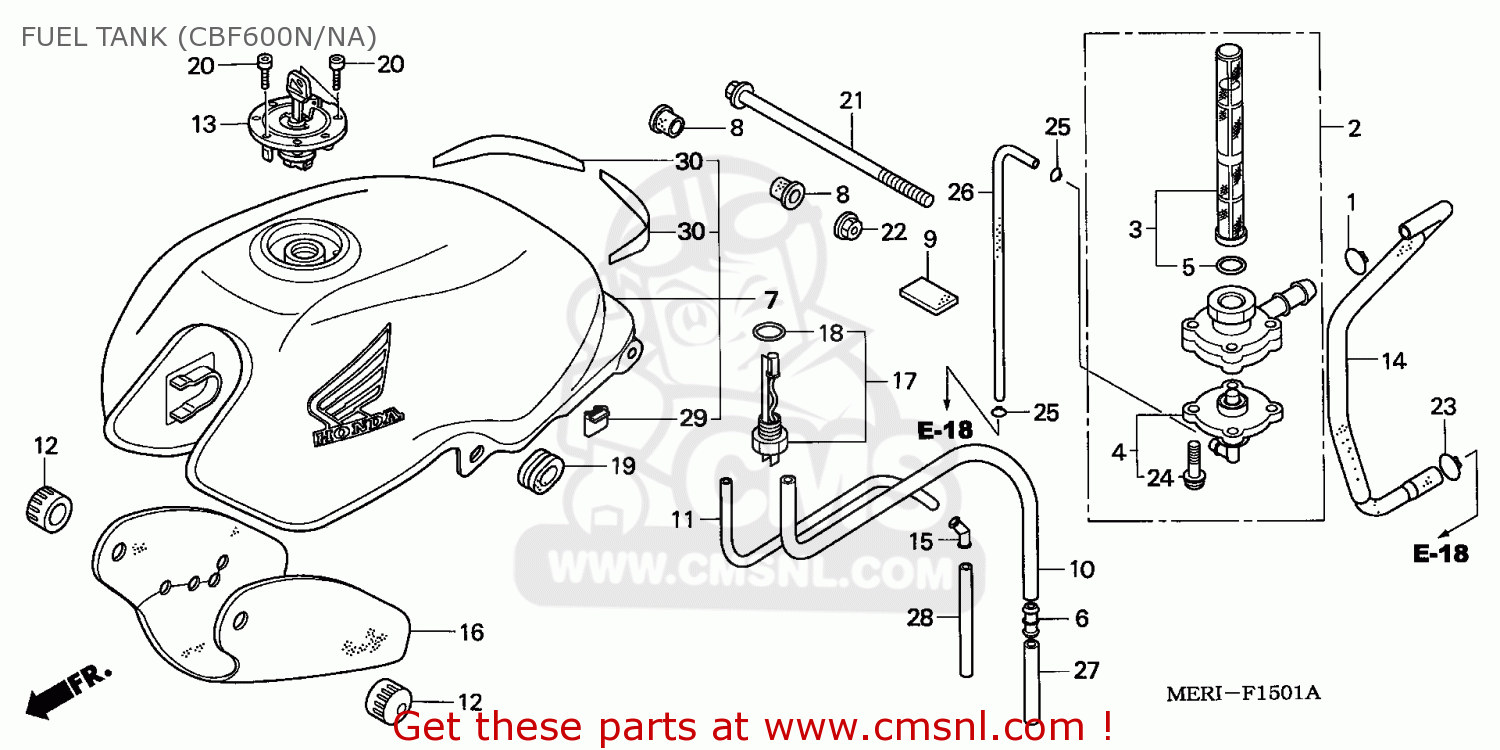

FUEL TANK (CBF600N/NA)

ref

pièce #

description

quantité

1

15707634000
ref: 1

CLIP, OIL DRAIN TUBE

€ 3.50

2

16950MERD01
ref: 2

AUTO COCK ASSY FU

€ 101.50

3

16952MBT611
ref: 3

SCREEN SET,FUEL S

€ 24.50

4

16953KEA000
ref: 4

COVER SET,COCK

€ 57.50

5

16958KM9005
ref: 5

O-RING

€ 4.00

6

17359419670
ref: 6

JOINT,TUBE

€ 3.00

7

17500MERD10ZA
ref: 7

TANK SET, FUEL (WL)

€ 936.50

7

17500MERD10ZB
ref: 7

TANK SET, FUEL (WL)

€ 856.00

7

17500MERD10ZC
ref: 7

TANK SET, FUEL (WL)

€ 936.50

8

17506MERD00
ref: 8

CUSH,FUEL TANK RR

€ 2.00

9

17520MBZK00
ref: 9

CUSH FUEL TANK RR

€ 5.00

10

17543MCZ000
ref: 10

TUBE,DRAIN

€ 18.50

11

17544MBG000
ref: 11

TUBE,BREATHER

€ 9.00

12

17611425000
ref: 12

CUSHION,FUEL TANK

€ 7.00

13

17620MASE02
ref: 13

CAP COMP,FUEL FIL

€ 218.50

14

17681MERD00
ref: 14

TUBE,FUEL

€ 10.00

15

19103ML7000
ref: 15

JOINT,TUBE

€ 6.00

16

19126MERD00
ref: 16

RUBBER,HEAT GUARD

€ 10.00

17

37810MERD00
ref: 17

FUEL RES SENSOR

€ 124.00

18

37811MB1008
ref: 18

PKG,FUEL.RESERVE

€ 2.50

19

83551300000
ref: 19

CASE,GROMET

€ 3.00

20

90074MT4000
ref: 20

BOLT,SOCKET 4X21

€ 3.00

21

90135MERD00
ref: 21

BOLT,TANK HINGE

€ 7.00

22

90301473003
ref: 22

NUT,U.,6MM

€ 4.00

23

90652MB1000
ref: 23

CLIP,AIR/C BASE

€ 2.00

24

938920401618
ref: 24

SCREW-WASHER,4X16

€ 1.50

25

9500202070
ref: 25

CLIP B7,TUBE

€ 1.00

26

950053513020
ref: 26

TUBE,3.5X130

€ 2.00

27

950058022050
ref: 27

TUBE,8X220

€ 2.50

28

950058040020
ref: 28

TUBE,8X400

€ 12.00

29

17535MERD00
ref: 29

RUBBER, PROTECTOR

€ 5.00

30

17536MERD00
ref: 30

TAPE,TANK GUARD

€ 6.50
