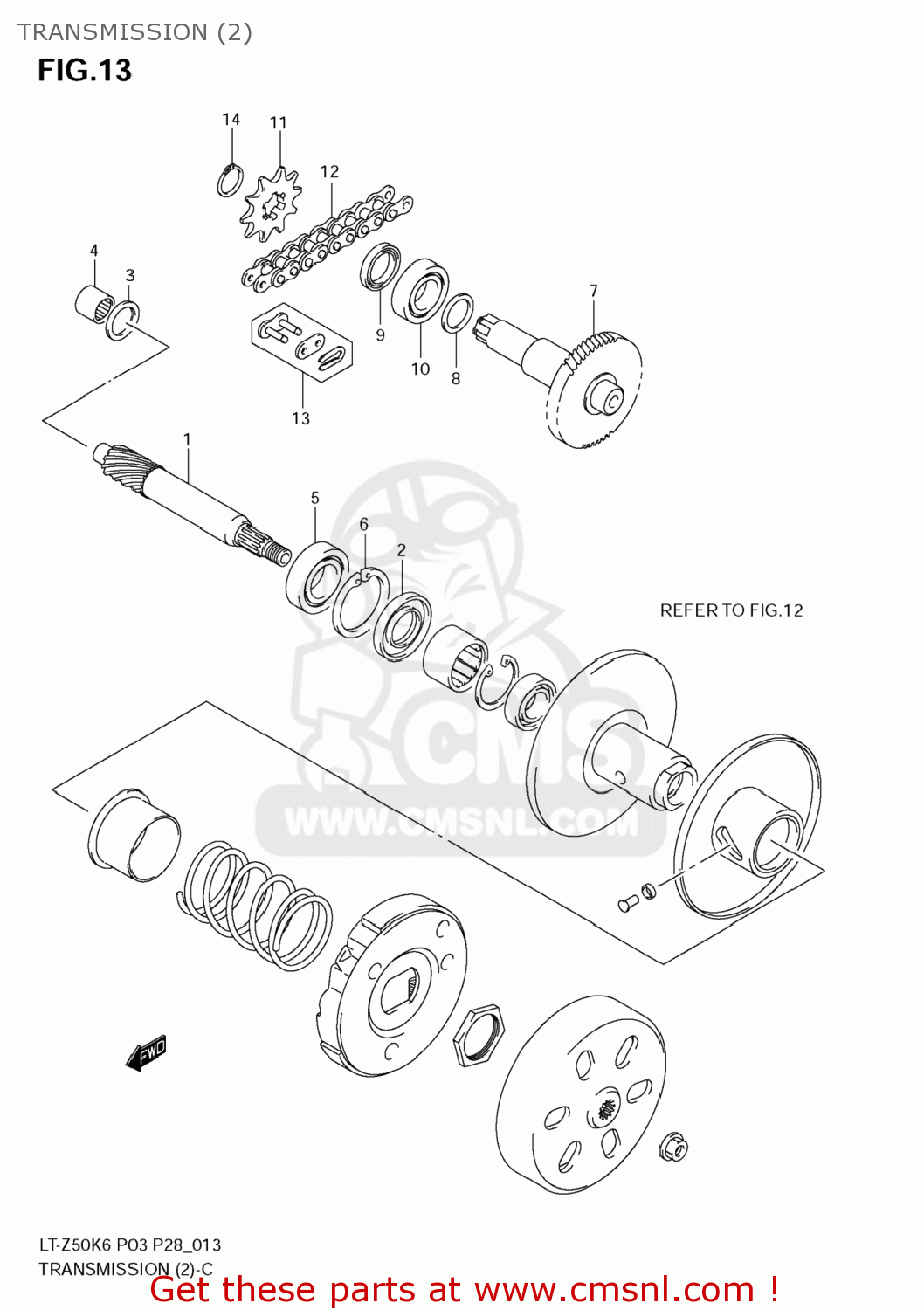

TRANSMISSION (2)

LT-Z50 QUAD SPORT 2009 (K9) USA (E03) QUADSPORT QUAD-SPORT

Transmission (2) diagrama LT-Z50 QUAD SPORT 2009 (K9) USA (E03) QUADSPORT QUAD-SPORT

los precios están en EUR

ref

parte #

descripción

cantidad

2412122G00
ref: 1

SHAFT,COUNTER

€ 51.00

0928317016
ref: 2

SEAL,OIL(17X40X5)

€ 4.50

0918113002
ref: 3

SHIM(13X22X0.5)

€ 1.50

0926312024
ref: 4

BEARING(12X16X10)

€ 8.50

0811062030
ref: 5

BEARING

€ 13.00

0833141406
ref: 6

CIRCLIP

€ 4.00

2413122G10
ref: 7

SHAFT,DRIVE

€ 85.50

0918117139
ref: 8

SHIM(17X24X1)

€ 3.00

0928317026
ref: 9

SEAL,OIL(17X27X6)

€ 5.50

0811062030
ref: 10

BEARING

€ 13.00

2751143G00
ref: 11

SPROCKET,ENGINE

€ 11.00

2760022G00082
ref: 12

CHAIN,DRIVE

€ 27.50

2762022G00
ref: 13

JOINT SET,CHAIN

€ 5.50

0833131166
ref: 14
08331-3116A

CIRCLIP 16MM

€ 2.00
