REAR WHEEL

LT-Z50 QUAD SPORT 2009 (K9) USA (E03) QUADSPORT QUAD-SPORT

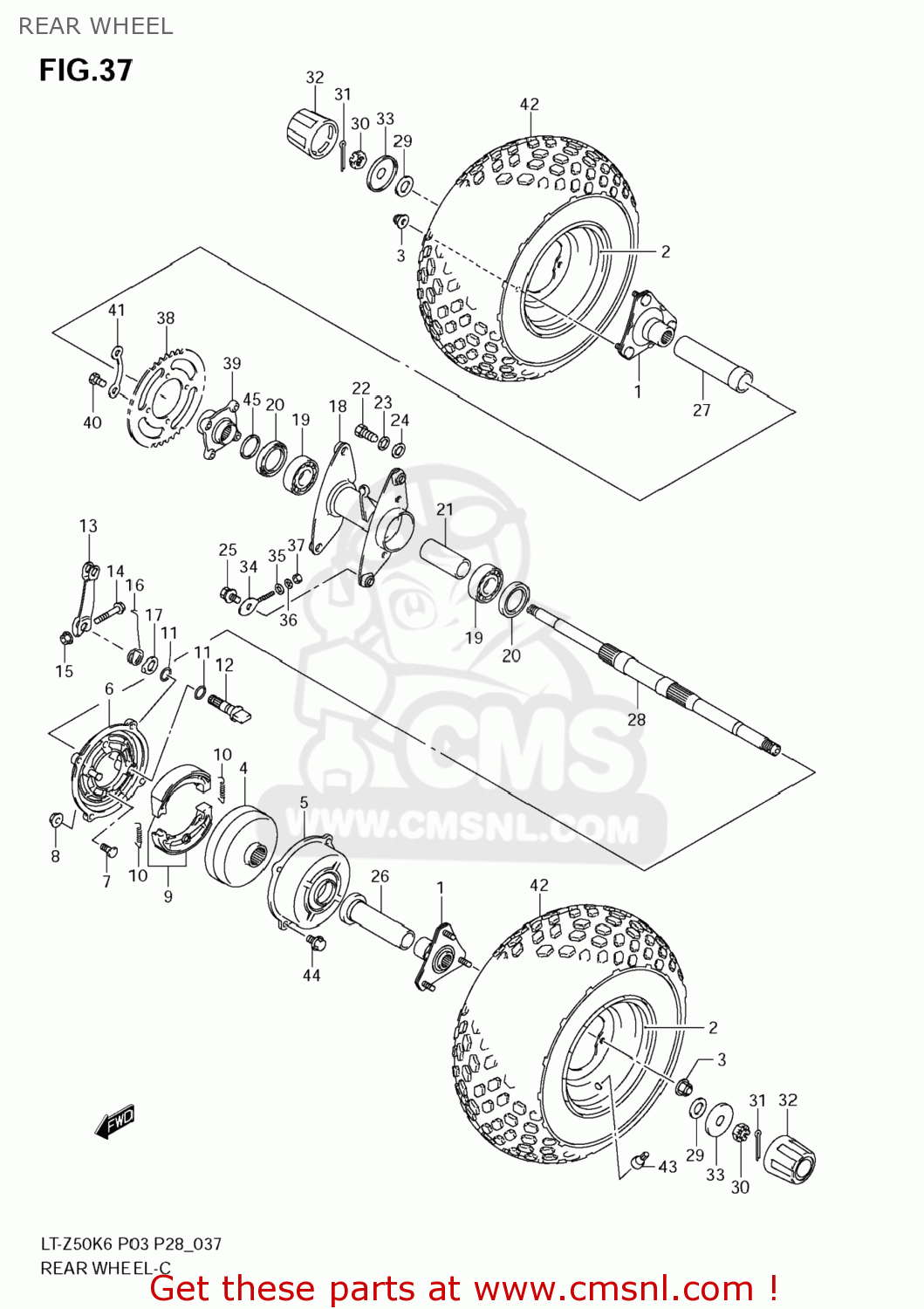

Rear wheel diagrama LT-Z50 QUAD SPORT 2009 (K9) USA (E03) QUADSPORT QUAD-SPORT

REAR WHEEL LT-Z50 QUAD SPORT 2009 (K9) USA (E03) QUADSPORT QUAD-SPORT
REAR WHEEL LT-Z50 QUAD SPORT 2009 (K9) USA (E03) QUADSPORT QUAD-SPORT
los precios están en EUR
ref
parte #
descripción
cantidad
1
6411043F00
ref: 1
HUB,RR WHEEL
6411043F00
€ 68.00
2-1
6531043F0013L
ref: 2-1
RIM,RR WHEEL(7X6.0AT)(SILVER)
6531043F0013L
€ 94.00
2-1
6531043F0013L
ref: 2-1
RIM,RR WHEEL(7X6.0AT)(SILVER)
6531043F0013L
€ 94.00
2-2
6531043F00W4P
ref: 2-2
RIM,RR WHEEL(7X6.0AT)
€ 106.00
2-2
6531043F00W4P
ref: 2-2
RIM,RR WHEEL(7X6.0AT)
€ 106.00
3
083193108A
ref: 3
NUT
083193108A
€ 2.00
4
6412143F00
ref: 4
DRUM,RR BRAKE
€ 74.00
5
6412343F00
ref: 5
COVER,RR BRAKE DRUM
€ 31.50
6
6421043G00
ref: 6
PANEL,RR BRAKE ANCHOR
6421043G00
€ 40.00
7
0911908091
ref: 7
BOLT
0911908091
€ 11.00
8
083193108A
ref: 8
NUT
083193108A
€ 2.00
9
5440143840
ref: 9
SHOE SET,BRAKE (NAS)
5440143840
€ 22.50
10
0944307044
ref: 10
SPRING
0944307044
€ 3.00
11
0928012012
ref: 11
O RING(D:2.4,ID:11.8)
0928012012
€ 4.00
12
6444143G00
ref: 12
CAM,RR BRAKE
6444143G00
€ 12.50
13
6445143F01
ref: 13
LEVER,RR BRAKE CAM
6445143F01
€ 10.50
14
0910306135
ref: 14
BOLT(6X32)
0910306135
€ 1.50
15
083161006B
ref: 15
NUT
083161006B
€ 2.00
16
6448443G00
ref: 16
SPRING,RR BRAKE CAM LEVER
6448443G00
€ 6.00
17
6449243F00
ref: 17
PLATE,BRAKE LINING INDICATOR
6449243F00
€ 7.50
18
6472043G00
ref: 18
HOUSING,RR AXLE BEARING
6472043G00
€ 104.50
19
0926228043
ref: 19
BEARING(28X52X12)
0926228043
€ 19.50
20
0928335005
ref: 20
SEAL,OIL(35X52X8)
0928335005
€ 5.50
21
6473143G00
ref: 21
SPACER,RR AXLE BRG
6473143G00
€ 9.00
22
015001020B
ref: 22
BOLT
015001020B
€ 3.00
23-1
0916210008
ref: 23-1
WASHER,LOCK
0916210008
€ 3.00
23-2
0916210010
ref: 23-2
WASHER,LOCK
0916210010
€ 2.00
24
083220110B
ref: 24
WASHER
083220110B
€ 2.00
25
015801025B
ref: 25
BOLT
015801025B
€ 3.50
26
6474143G00
ref: 26
SPACER,RR AXLE,R
6474143G00
€ 14.00
27
6475043G00
ref: 27
SPACER,RR AXLE,L
6475043G00
€ 16.00
28
6471143G00
ref: 28
AXLE,RR
6471143G00
€ 231.50
29
6472302410
ref: 29
WASHER,RR AXLE
6472302410
€ 2.00
30
083144016B
ref: 30
NUT
083144016B
€ 3.50
31
041114030A
ref: 31
PIN
041114030A
€ 1.50
32
5472518A00
ref: 32
CAP,WHEEL CTR
5472518A00
€ 6.00
33
6472640B00
ref: 33
HOLDER,CTR CAP
6472640B00
€ 2.00
34
6141143G00
ref: 34
ADJUSTER,CHAIN
6141143G00
€ 3.00
35
083220106B
ref: 35
WASHER
083220106B
€ 1.50
36
083210106B
ref: 36
WASHER,LOCK
083210106B
€ 2.00
37
083100006B
ref: 37
NUT
€ 1.50
38
6451143G00
ref: 38
SPROCKET,RR
6451143G00
€ 25.50
39
6461143F00
ref: 39
FLANGE,RR SPROCKET MOUNTING
€ 67.50
40
0910008284
ref: 40
BOLT(8X16)
0910008284
€ 3.50
41
0916908012
ref: 41
WASHER
0916908012
€ 1.50
42
5511043F00
ref: 42
BAND
€ 177.00
43
4313024A00
ref: 43
VALVE ASSY,WHEEL RIM(TR412)
4313024A00
€ 6.50
44
015470610B
ref: 44
BOLT
015470610B
€ 3.00
45
0938023001
ref: 45
RING,SNAP
0938023001
€ 4.00
