STARTING MOTOR

LT-A400F KING QUAD 2011 (L1) USA (E03) KINGQUAD KING-QUAD

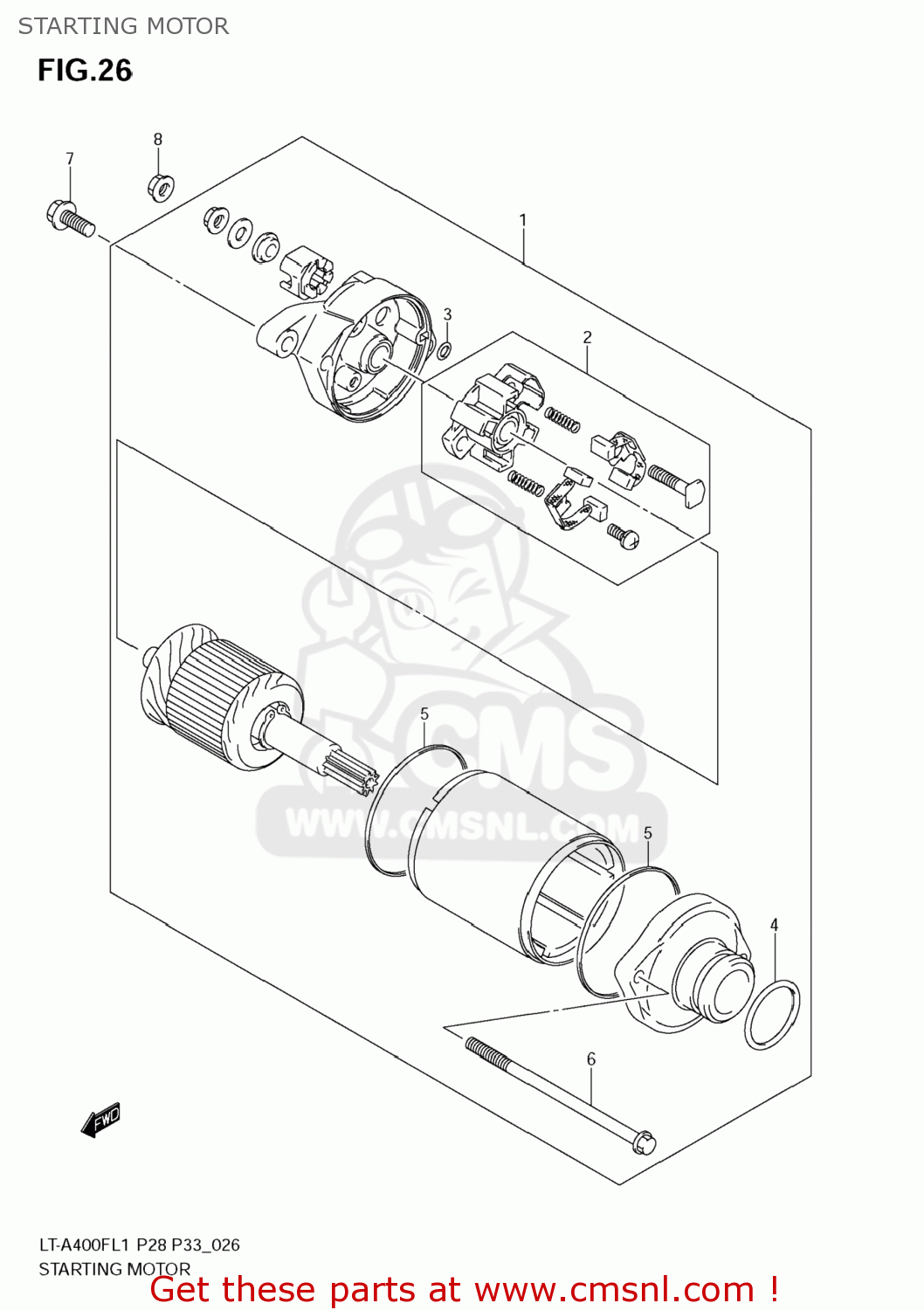

Starting motor diagrama LT-A400F KING QUAD 2011 (L1) USA (E03) KINGQUAD KING-QUAD

STARTING MOTOR LT-A400F KING QUAD 2011 (L1) USA (E03) KINGQUAD KING-QUAD

los precios están en EUR

ref

parte #

descripción

cantidad

1

3110038F10
ref: 1

MOTOR ASSY,STARTING

€ 287.00

2

3113238F10
ref: 2

BRUSH HOLDER SET

€ 30.50

3

3114349040
ref: 3

O RING

€ 3.00

4

3115698E00
ref: 4

O RING

€ 3.00

5

3126438F10
ref: 5

SQUARE RING

€ 3.50

6

3128038F10
ref: 6

BOLT

€ 9.50

7

0910306212
ref: 7

BOLT(6X25)

€ 2.00

8

083613506A
ref: 8

NUT

€ 2.00
