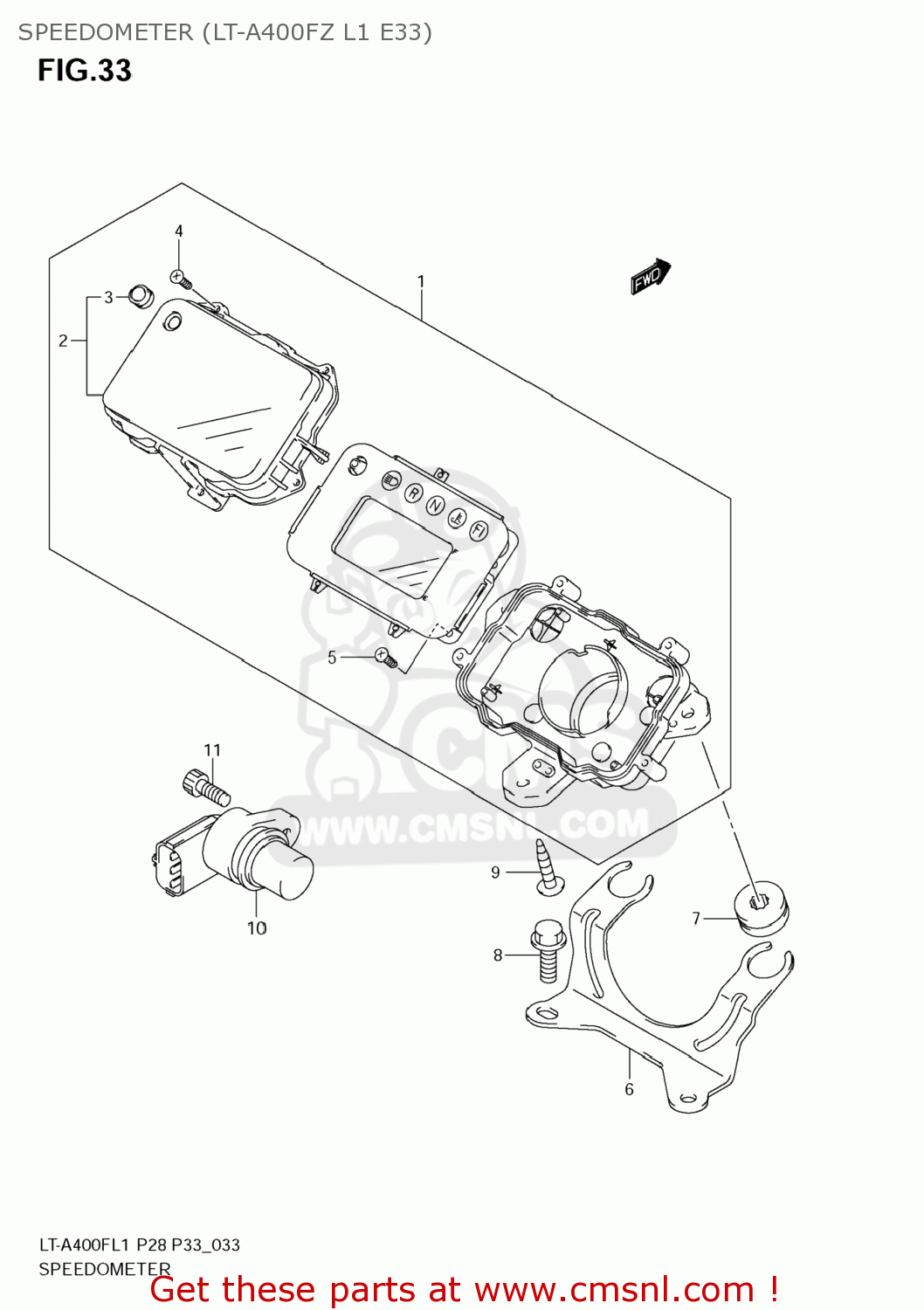

SPEEDOMETER (LT-A400FZ L1 E33)

LT-A400F KING QUAD 2011 (L1) USA (E03) KINGQUAD KING-QUAD

Speedometer (lt-a400fz l1 e33) diagrama LT-A400F KING QUAD 2011 (L1) USA (E03) KINGQUAD KING-QUAD

los precios están en EUR

ref

parte #

descripción

cantidad

3410027HB0
ref: 1

SPEEDOMETER ASS

€ 97.00

3415027HA0
ref: 2

CASE,UPR

€ 183.50

3412403GE0
ref: 3

SWITCH,RUBBER

€ 41.00

3418309F00
ref: 4

SCREW(3X12)

€ 2.00

3418427EE0
ref: 5

SCREW(3X12)

€ 2.50

3416227H00
ref: 6

BRACKET,SPEEDOMETER

€ 144.00

3495513E00
ref: 7

CUSHION

€ 3.00

015500616A
ref: 8

BOLT

€ 1.50

035410516A
ref: 9

SCREW

€ 1.00

3499027H00
ref: 10

SENSOR,SPEED

€ 64.50

071300616A
ref: 11
07130-0616B

BOLT

€ 2.50
