CRANKCASE

KLX250D2 KLX250R 1994 EUROPE UK

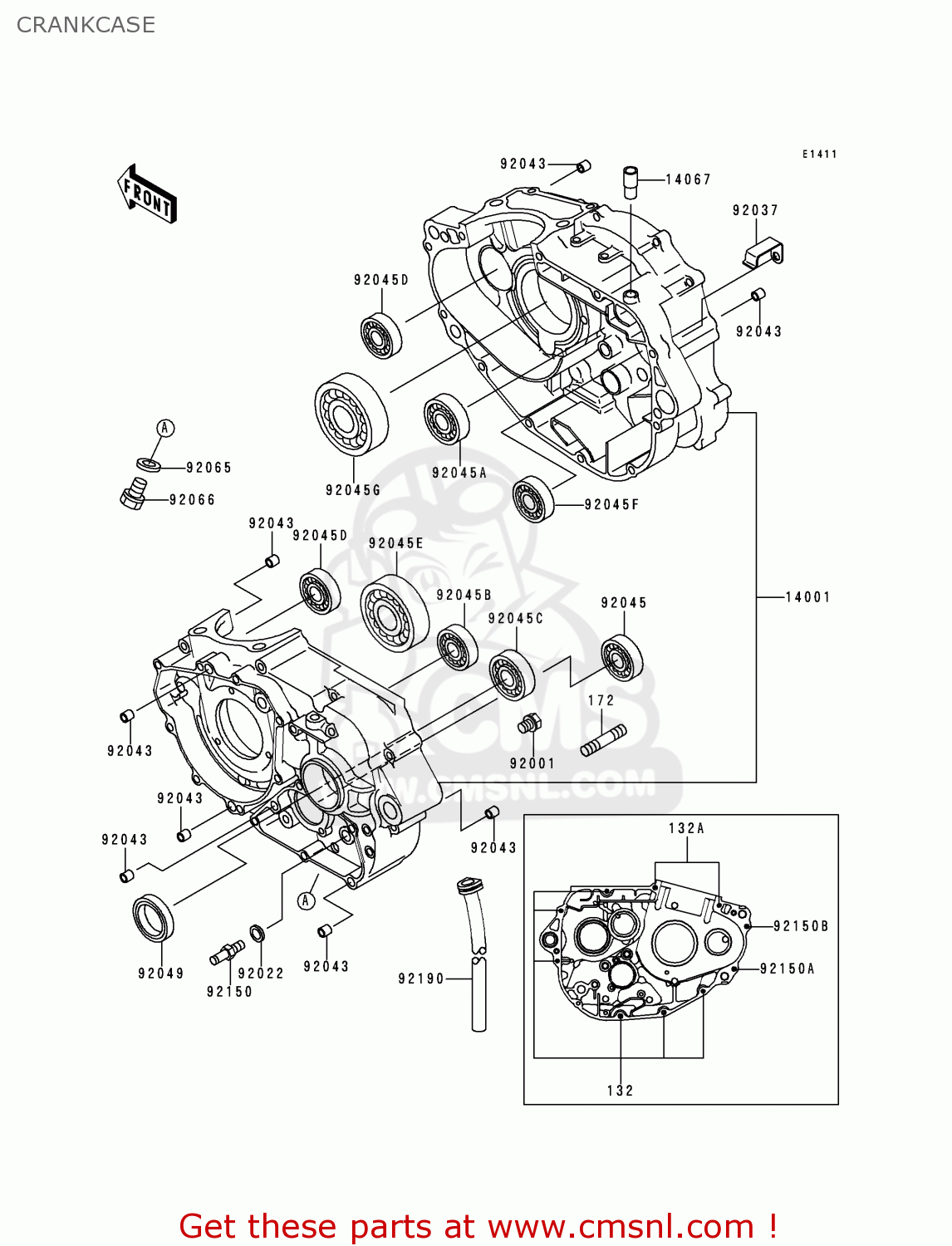

Crankcase diagrama KLX250D2 KLX250R 1994 EUROPE UK

CRANKCASE KLX250D2 KLX250R 1994 EUROPE UK
CRANKCASE KLX250D2 KLX250R 1994 EUROPE UK
los precios están en EUR
ref
parte #
descripción
cantidad
132
132Y0650
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132Y0670
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
172
172G0680
ref: 172
STUD,6X80
172G0680
€ 1.50
14001
140015318
ref: 14001
SET-CRANKCASE
€ 937.50
14067
14067006
ref: 14067
BREATHER JOINT
14067006
€ 13.00
92001
920011829
ref: 92001
BOLT,W/WASHER,6X14
920011829
€ 2.50
92022
920221973
ref: 92022
WASHER
920221973
€ 3.00
92037
920371318
ref: 92037
CLAMP,HARNESS
920371318
€ 4.00
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92045
92045036
ref: 92045
BEARING-BALL,#6905
92045036
€ 27.00
92045A
920451041
ref: 92045A
BEARING-BALL,TMB204 J
920451041
€ 30.50
92045B
920451287
ref: 92045B
BEARING-BALL,TMB203LU
920451287
€ 23.50
92045C
920451288
ref: 92045C
BEARING-BALL,TMB205LU
920451288
€ 29.50
92045D
920451289
ref: 92045D
BEARING-BALL,TMB302JR
€ 16.50
92045E
920451290
ref: 92045E
BEARING-BALL,TMB207JR
€ 37.50
92045F
920451291
ref: 92045F
BEARING-BALL,TMB203
920451291
€ 18.50
92045G
920451292
ref: 92045G
BEARING-BALL,TMB306JR
€ 37.50
92049
920491159
ref: 92049
SEAL-OIL,TC32457
920491159
€ 7.50
92065
92065058
ref: 92065
GASKET, 10,5X16X1 (NAS)
92065058
€ 2.50
92066
920661241
ref: 92066
PLUG
920661241
€ 4.00
92150
921501803
ref: 92150
BOLT,RETURN SPRING
921501803
€ 6.00
92150A
921501874
ref: 92150A
BOLT,SOCKET,6X50
€ 3.50
92150B
921501875
ref: 92150B
BOLT,SOCKET,6X35
921501875
€ 3.00
92190
921901493
ref: 92190
TUBE
921901493
€ 7.50
