CARBURETOR

KLX250D2 KLX250R 1994 EUROPE UK

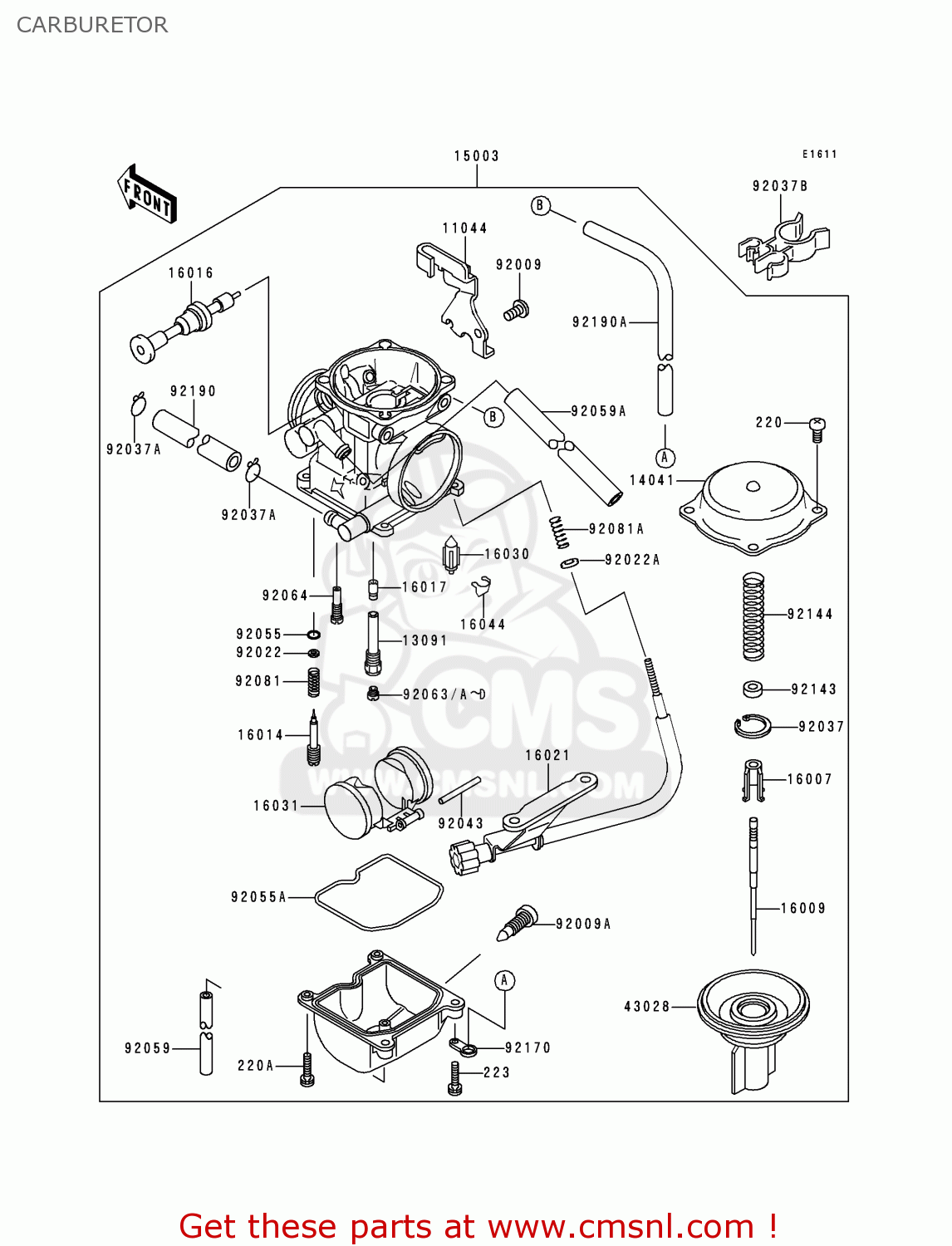

Carburetor diagrama KLX250D2 KLX250R 1994 EUROPE UK

CARBURETOR KLX250D2 KLX250R 1994 EUROPE UK
CARBURETOR KLX250D2 KLX250R 1994 EUROPE UK
los precios están en EUR
ref
parte #
descripción
cantidad
11044
110441353
ref: 11044
BRACKET,THROTTLE CABL
110441353
€ 40.50
13091
130911259
ref: 13091
HOLDER,NEEDLE JET
130911259
€ 19.00
14041
140411077
ref: 14041
TOP-CHAMBER,MIXING,IN
€ 63.00
15003
150031188
ref: 15003
CARBURETOR-ASSY
€ 366.00
16007
160071120
ref: 16007
SEAT-SPRING
160071120
€ 15.50
16009
160091790
ref: 16009
NEEDLE-JET,N1SA
€ 17.50
16014
160141054
ref: 16014
SCREW-PILOT AIR
160141054
€ 14.50
16016
160161068
ref: 16016
PLUNGER,STARTER
160161068
€ 33.00
16017
160171368
ref: 16017
JET-NEEDLE
160171368
€ 28.50
16021
160211144
ref: 16021
SCREW-THROTTLE STOP
€ 84.50
16030
160301007
ref: 16030
FLOAT VALVE ASSY
160301007
€ 34.00
16031
160311056
ref: 16031
FLOAT
160311056
€ 36.50
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
16044007
€ 3.50
43028
430281080
ref: 43028
DIAPHRAGM,VALVE
430281080
€ 156.50
92009
920091365
ref: 92009
SCREW
920091365
€ 4.00
92009A
920091551
ref: 92009A
SCREW,DRAIN
920091551
€ 6.00
92022
920221003
ref: 92022
WASHER,PLAIN
920221003
€ 2.50
92022A
920221480
ref: 92022A
WASHER,PLAIN,STOP SPR
920221480
€ 3.00
92037
920371401
ref: 92037
CLAMP,JET NEEDLE
920371401
€ 2.50
92037A
920371531
ref: 92037A
CLAMP,TUBE
920371531
€ 3.50
92037B
920371886
ref: 92037B
CLAMP
€ 4.50
92043
920431207
ref: 92043
PIN,FLOAT
920431207
€ 5.50
92055
920551002
ref: 92055
O RING,PILOT ADJUST
920551002
€ 2.50
92055A
920551222
ref: 92055A
RING-O,FLOAT CHAMBER
920551222
€ 11.50
92059
920591110
ref: 92059
TUBE,3.5X6.5X330
€ 14.50
92059A
920591237
ref: 92059A
TUBE,L=350
920591237
€ 15.00
92063
920631071
ref: 92063
JET-MAIN,#118
920631071
€ 9.00
92063A
920631072
ref: 92063A
MAIN JET 2ND #120
920631072
€ 9.00
92063B
920631114
ref: 92063B
JET-MAIN,#110
920631114
€ 9.00
92063C
920631117
ref: 92063C
JET-MAIN,#112
920631117
€ 9.00
92063D
920631118
ref: 92063D
JET-MAIN,#115
920631118
€ 9.00
92064
920641101
ref: 92064
JET-PILOT,#35
920641101
€ 10.50
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
920811002
€ 3.00
92081A
920811617
ref: 92081A
SPRING,THROTTLE STOP
920811617
€ 3.50
92143
921431667
ref: 92143
COLLAR
921431667
€ 3.50
92144
921441745
ref: 92144
SPRING,DIAPHRAGM VALV
921441745
€ 12.00
220
220B0408
ref: 220
SCREW-PAN-CROS
220B0408
€ 0.50
220A
220D0414
ref: 220A
SCREW-PAN-CROS
220D0414
€ 2.00
223
223C0416
ref: 223
SCREW-PAN-WS-CROS
223C0416
€ 2.00
92170
921701496
ref: 92170
CLAMP,TUBE
€ 9.00
92190
921901474
ref: 92190
TUBE,6.5X11.5X100
921901474
€ 20.50
92190A
921901560
ref: 92190A
TUBE,5X8X430
921901560
€ 14.00
