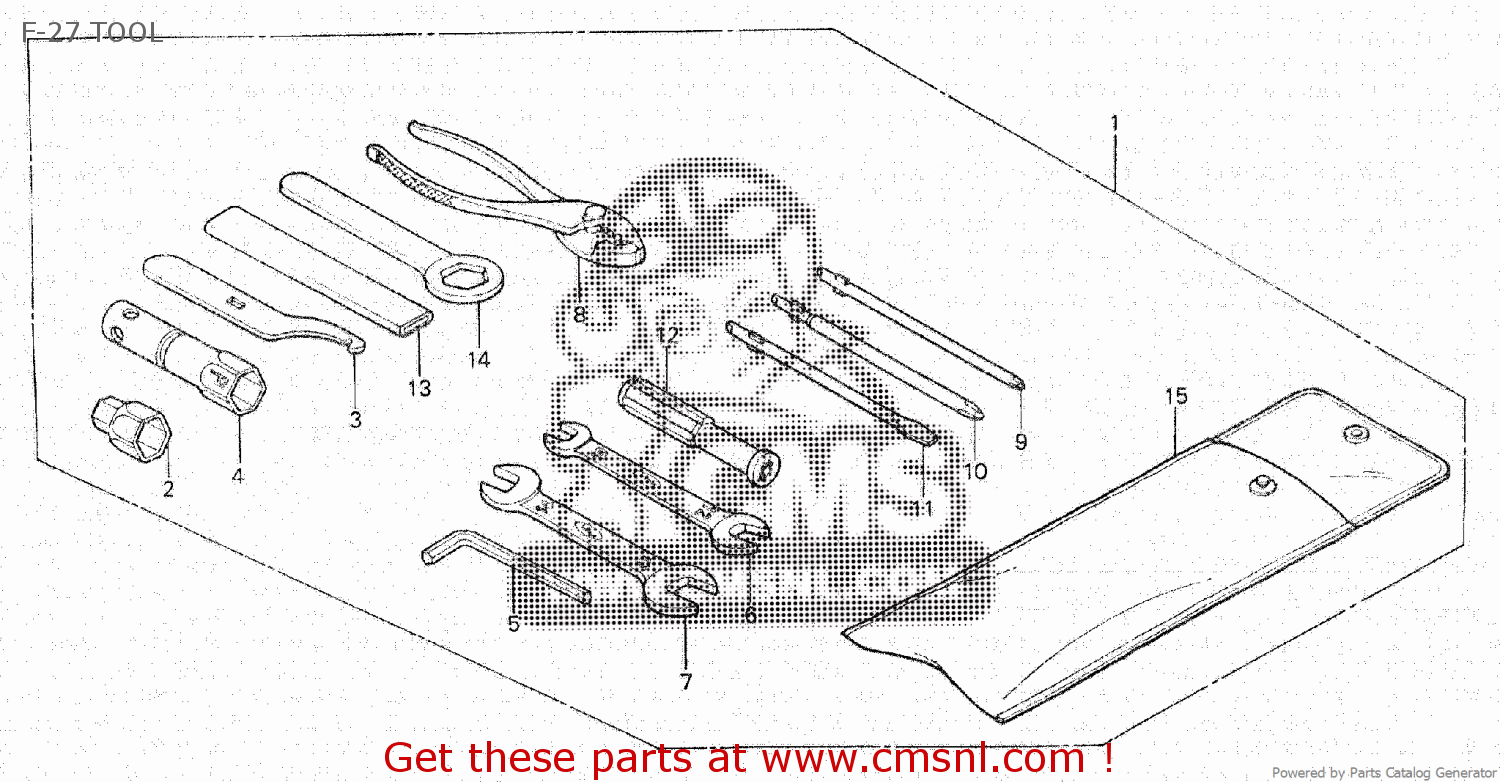

F-27 TOOL

XL500S 1979 (Z) BELGIUM

F-27 tool diagrama XL500S 1979 (Z) BELGIUM

los precios están en EUR

ref

parte #

descripción

cantidad

89010429000
ref: 1

TOOL ASSY

€ 107.50

89015428000
ref: 2

WRENCH BOX 22X17

€ 8.50

89215404670
ref: 3

SPANNER,PIN

€ 15.50

89216376000
ref: 4

WRENCH,PLUG

€ 10.50

89221429000
ref: 5

WRENCH,HEX.,5MM

€ 8.00

9900110120
ref: 6

SPANNER, 10X12

€ 6.50

9900114170
ref: 7

SPANNER, 14X17

€ 8.50

9900213500
ref: 8

PLIERS,135

€ 11.50

9900310000
ref: 9

DRIVER

€ 2.50

9900320000
ref: 10

DRIVER

€ 2.50

9900330000
ref: 11

SCREW DRIVER,3

€ 2.50

9900350000
ref: 12

GRIP,SCREW DRIVER

€ 4.00

9900612000
ref: 13

HANDLE,EYE WRENCH

€ 7.50

9900622000
ref: 14

EYE WRENCH,22

€ 11.00

9900802000
ref: 15

BAG,TOOL

€ 19.50
