F-22 WINKER

XL500S 1979 (Z) BELGIUM

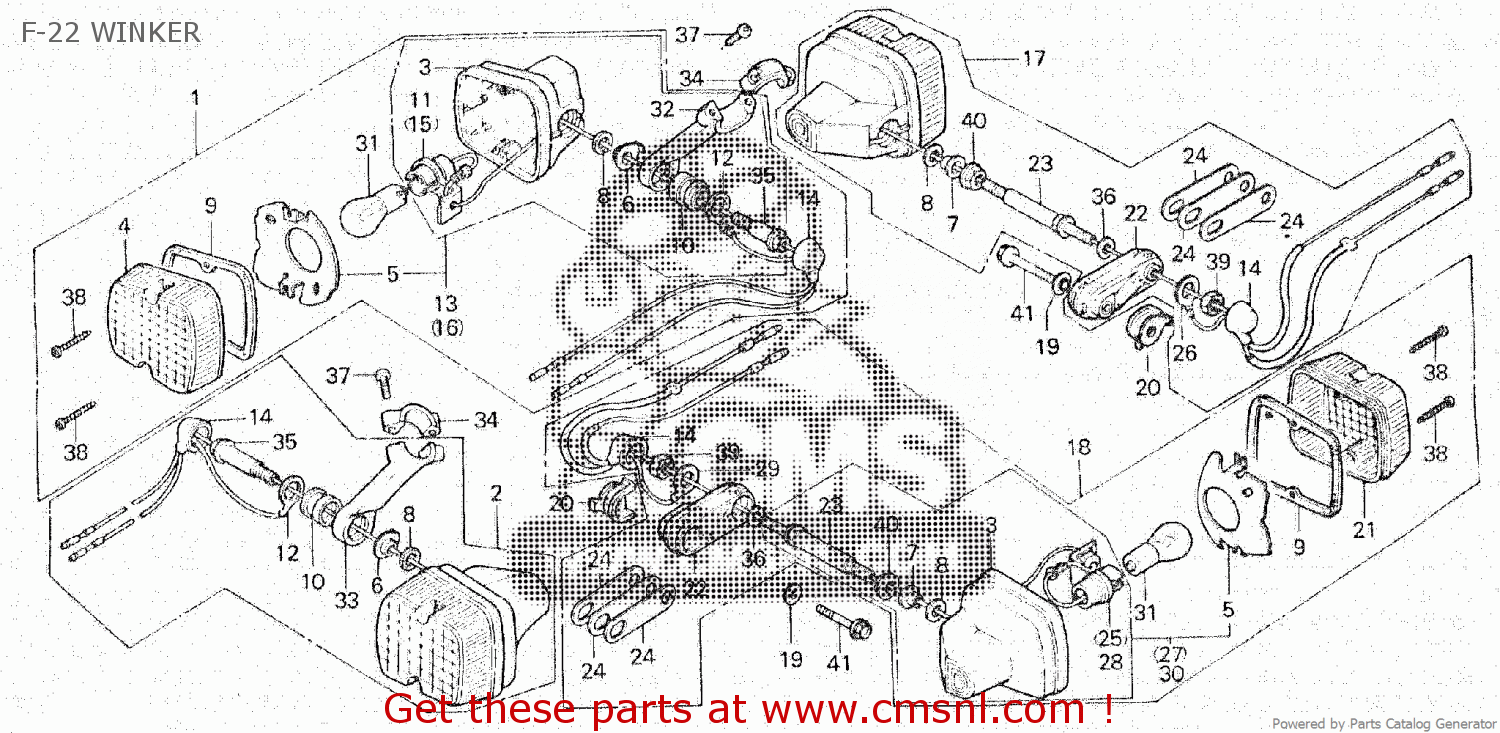

F-22 winker diagrama XL500S 1979 (Z) BELGIUM

F-22 WINKER XL500S 1979 (Z) BELGIUM
F-22 WINKER XL500S 1979 (Z) BELGIUM
los precios están en EUR
ref
parte #
descripción
cantidad
1
33300435000
ref: 1
DK,DM,SA,U
WINKER SET,R.FR.
33300435000
€ 54.50
1
33300435600
ref: 1
B,E,F
WINKER SET,R.FR.
33300435600
€ 54.50
1
33300435670
ref: 1
CM
WINKER SET,R.FR.
33300435670
€ 54.50
2
33350435000
ref: 2
DK,DM,SA,U
WINKER SET,L.FR.
33350435000
€ 54.50
2
33350435600
ref: 2
B,E,F
WINKER SET,L.FR.
33350435600
€ 54.50
2
33350435670
ref: 2
CM
WINKER SET,L.FR.
33350435670
€ 56.50
3
33401428003
ref: 3
CM,DK,DM,SA,U
BASE,WINKER
33401428003
€ 23.00
4
33402428671
ref: 4
B,CM,DK,DM,E,F,SA,U
LENS,WINKER
33402428671
€ 4.00
5
33403428671
ref: 5
CM
REFLECTOR
33403428671
€ 17.50
5
33403443003
ref: 5
DK,DM,SA,U
REFLECTOR
33403443003
€ 16.50
6
33404437000
ref: 6
B,CM,DK,DM,E,F,SA,U
STOPPER,FR.WINKER
33404437000
€ 3.00
7
33405428003
ref: 7
B,CM,DK,DM,E,F,SA,U
COLLAR,WINKERBASE
33405428003
€ 20.50
8
33406428003
ref: 8
B,CM,DK,DM,E,F,SA,U
SEAL,GASKET
33406428003
€ 3.00
9
33407428003
ref: 9
B,CM,DK,DM,E,F,SA,U
LENS,GASKET
33407428003
€ 5.00
10
33408435000
ref: 10
B,CM,DK,DM,E,F,SA,U
RUB,FR.WINKER MT.
33408435000
€ 5.00
11
33410428671
ref: 11
CM,DK,DM,SA,U
SOCKET R WINKER
33410428671
€ 22.00
12
33415428010
ref: 12
B,CM,DK,DM,E,F,SA,U
CORD,WINKER EARTH
33415428010
€ 5.50
13
33420435600
ref: 13
B,E,F
BASE,R.FR.WINKER
€ 77.50
14
33425428000
ref: 14
B,CM,DK,DM,E,F,SA,U
COVER,WINKER CORD
33425428000
€ 3.00
15
33460428671
ref: 15
CM,DK,DM,SA,U
SOCKET L WINKER
33460428671
€ 22.00
16
33470435600
ref: 16
B,E,F
BASE,L.FR.WINKER
33470435600
€ 77.50
17
33500435000
ref: 17
DK,DM,SA,U
WINKER SET,R.RR.
33500435000
€ 54.50
17
33500435600
ref: 17
B,E,F
WINKER SET,R.RR.
33500435600
€ 43.50
17
33500435670
ref: 17
CM
WINKER SET,R.RR.
33500435670
€ 54.50
18
33550435000
ref: 18
DK,DM,SA,U
WINKER SET,L.RR.
33550435000
€ 56.50
18
33550435600
ref: 18
B,E,F
WINKER SET,L.RR.
33550435600
€ 41.00
18
33550435670
ref: 18
CM
WINKER SET,L.RR.
€ 57.00
19
33601428000
ref: 19
B,CM,DK,DM,E,F,SA,U
WASHER,RR.WINKER
33601428000
€ 3.50
20
33602435000
ref: 20
B,CM,DK,DM,E,F,SA,U
STAY,RR.WINKER
33602435000
€ 5.50
21
33602443611
ref: 21
B,E,F
LENS,WINKER
33602443611
€ 2.50
21
33402428671
ref: 21
CM,DK,DM,SA,U
LENS,WINKER
33402428671
€ 4.00
22
33604428000
ref: 22
B,CM,DK,DM,E,F,SA,U
RUB RR WINKER
33604428000
€ 20.00
23
33605435000
ref: 23
B,CM,DK,DM,E,F,SA,U
BOLT,RR.WINKER
33605435000
€ 19.50
24
33607428010
ref: 24
B,CM,DK,DM,E,F,SA,U
SPRING,RR.WINKER
33607428010
€ 6.00
25
33610428671
ref: 25
CM,DK,DM,SA,U
SOCKET R RR
33610428671
€ 18.50
26
33615428000
ref: 26
B,CM,DK,DM,E,F,SA,U
CORD WINKER EARTH
33615428000
€ 9.50
27
33620435600
ref: 27
B,E,F
BASE,R.RR.WINKER
€ 67.50
28
33660428671
ref: 28
CM,DK,DM,SA,U
SOCKET L RR
33660428671
€ 18.50
29
33665428000
ref: 29
B,CM,DK,DM,E,F,SA,U
CORD WINKER EARTH
33665428000
€ 5.00
30
33670435600
ref: 30
B,E,F
BASE,L.RR.WINKER
€ 0.00
31
34905358003
ref: 31
CM,DK,DM,SA,U
BULB, WINKER LT. P25-1 6V21W
34905358003
€ 6.50
31
34905399611
ref: 31
B,E,F
BULB,WINKER
34905399611
€ 3.50
32
53101428000
ref: 32
B,CM,DK,DM,E,F,SA,U
BRKT R FR WINKER
53101428000
€ 23.50
33
53102428000
ref: 33
B,CM,DK,DM,E,F,SA,U
BRKT L FR WINKER
53102428000
€ 23.00
34
53103428000
ref: 34
B,CM,DK,DM,E,F,SA,U
HOLD,WINKER STAY
53103428000
€ 16.50
35
90129428000
ref: 35
B,CM,DK,DM,E,F,SA,U
BOLT,WINKER SET
90129428000
€ 4.50
36
90528329690
ref: 36
B,CM,DK,DM,E,F,SA,U
WASHER (10.2X20)
90528329690
€ 1.50
37
93500050160A
ref: 37
B,CM,DK,DM,E,F,SA,U
SCREW,CROSS,5X16
93500050160A
€ 0.50
38
9390124610
ref: 38
B,CM,DK,DM,E,F,SA,U
SCREW,TAPPING4X25
9390124610
€ 0.50
39
94002100000S
ref: 39
CM,DK,DM,SA,U
NUT,HEX.,10MM
94002100000S
€ 1.00
41
957000606000
ref: 41
B,CM,DK,DM,E,F,SA,U
BOLT, FLANGE,6X60
957000606000
€ 2.50
