REAR SHOCK ASORBER

VT1100C SHADOW 1100 1988 (J) USA CALIFORNIA

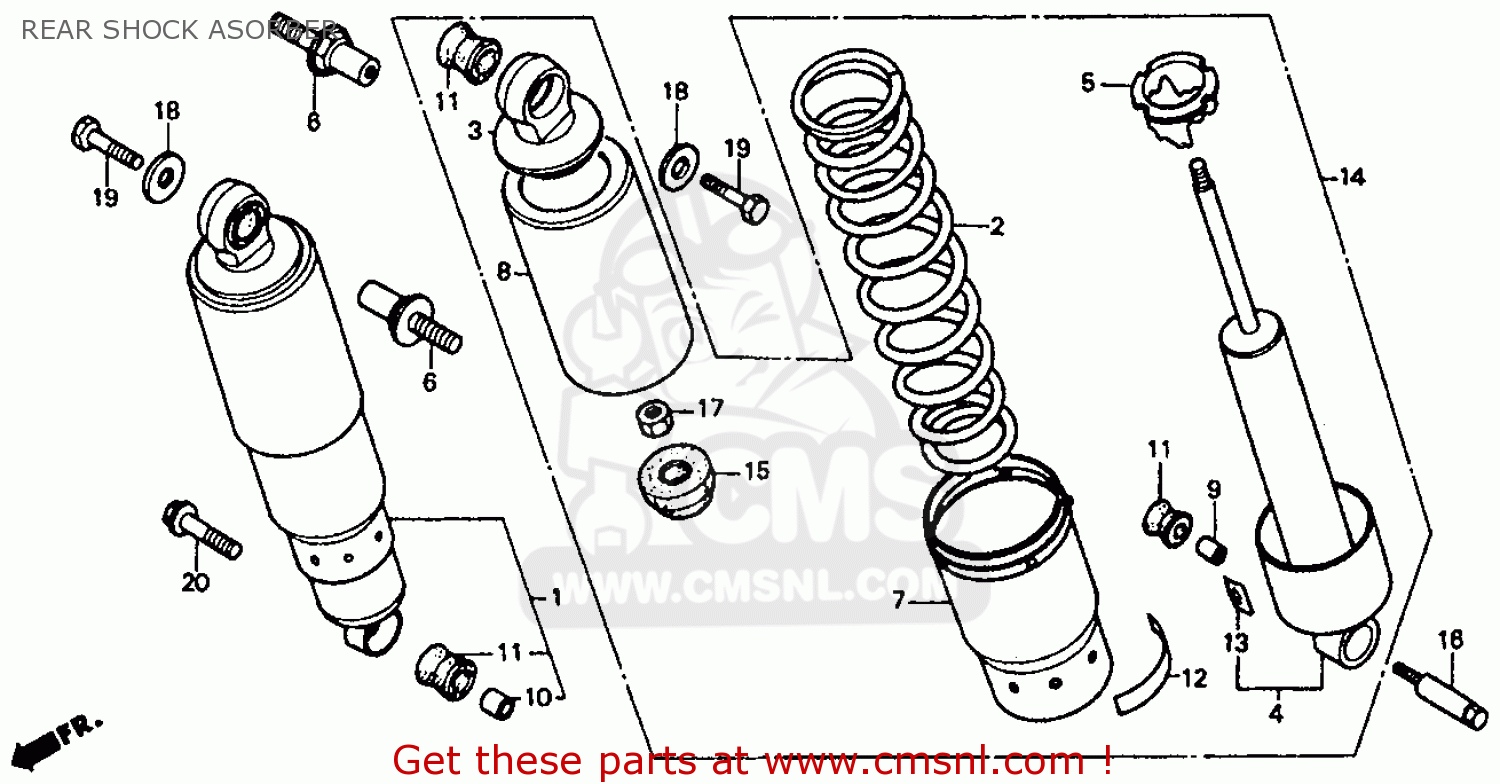

Rear shock asorber diagrama VT1100C SHADOW 1100 1988 (J) USA CALIFORNIA

REAR SHOCK ASORBER VT1100C SHADOW 1100 1988 (J) USA CALIFORNIA

los precios están en EUR

ref

parte #

descripción

cantidad

1

52400MM8003
ref: 1

CUSH ASSY,R RR

€ 344.50

1

52400MM8013
ref: 1

CUSH ASSY,R RR

€ 344.50

2

52401MM8003
ref: 2

SPRING,RR.CUSHION

€ 64.50

3

52403MM8003
ref: 3

JOINT COMP.,UPPER

€ 23.50

3

52403MM8013
ref: 3

JOINT COMP,UPPER

€ 23.50

4

52410MM8003
ref: 4

DAMPER COMP.,RR.(

€ 226.00

5

52422MM8003
ref: 5

ADJUSTER,SPRING (

€ 24.00

6

52452MM8000
ref: 6

BOLT,RR.CUSHION

€ 26.00

7

52458MM8003
ref: 7

SEAT,SPRING (SHOW

€ 35.50

7

52458MM8881
ref: 7

SEAL,SPRING

€ 35.50

8

52460MM8003
ref: 8

CASE,RR CUSH UP

€ 31.50

9

52486MG9671
ref: 9

COLLAR RR CUSH

€ 7.50

10

52486463000
ref: 10

COLLAR,RR.CUSHION

€ 6.00

11

52489KR3003
ref: 11

BUSH,REAR CUSHION

€ 4.00

12

52496MB4003
ref: 12

LABEL A

€ 6.50

13

52497KR3003
ref: 13

LABEL B,RR.CUSH.

€ 3.00

14

52500MM8003
ref: 14

CUSH ASSY,L RR

€ 344.50

14

52500MM8013
ref: 14

CUSH ASSY,L RR

€ 344.50

15

52517410003
ref: 15

RUBBER,STOPPER

€ 7.00

16

90159MG9000
ref: 16

BOLT,RR CUSHION

€ 17.50

17

90301376003
ref: 17

NUT,HEX.,11MM

€ 2.50

18

90504ME4000
ref: 18

WASHER,8.5X26

€ 3.00

19

953010801202
ref: 19

BOLT,HEX,8X12

€ 1.50

20

958001003502
ref: 20

BOLT,FLANGE,10X35

€ 3.00

todas las asambleas
