REAR CYLINDER HEAD

VT1100C SHADOW 1100 1988 (J) USA CALIFORNIA

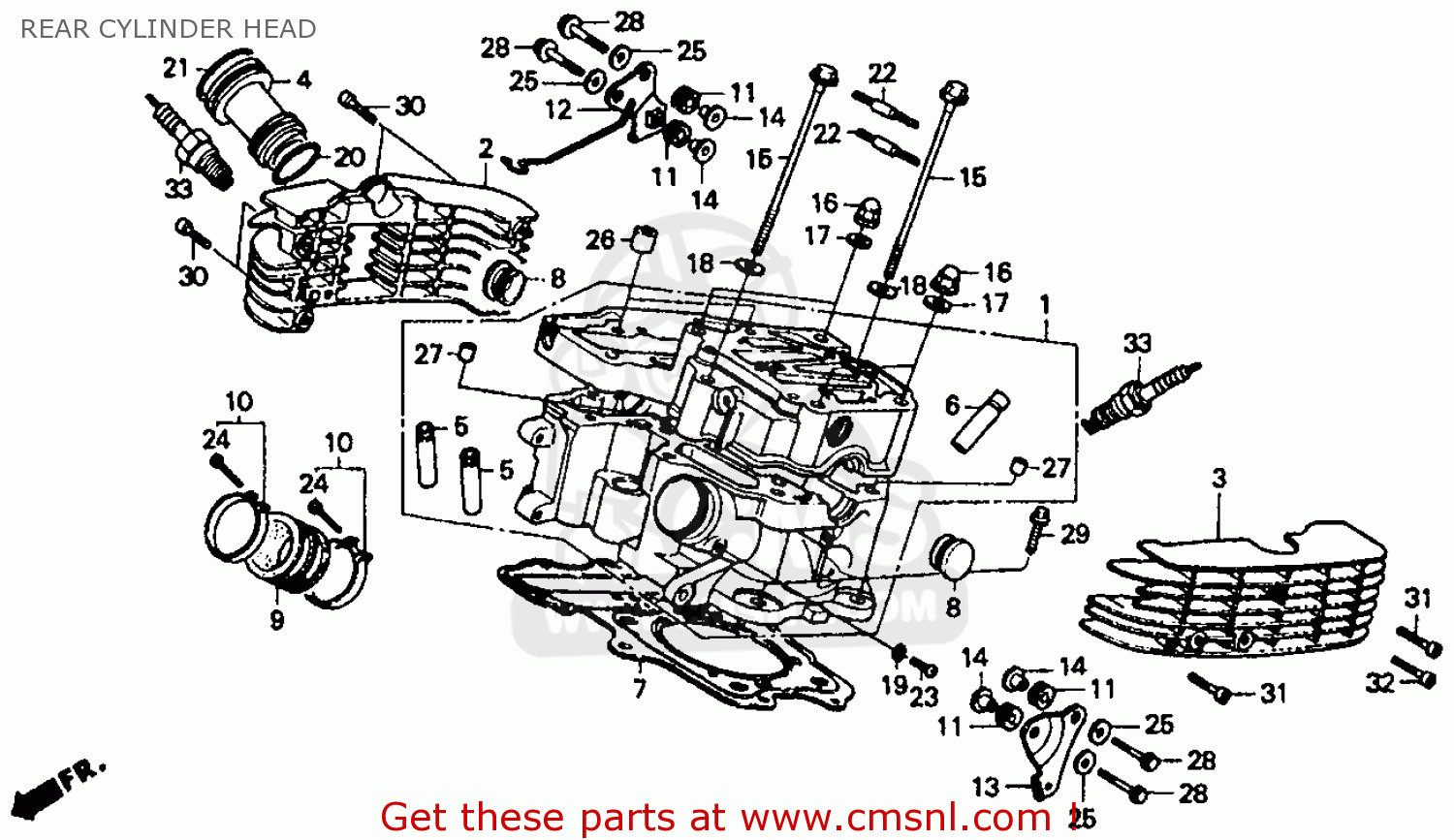

Rear cylinder head diagrama VT1100C SHADOW 1100 1988 (J) USA CALIFORNIA

REAR CYLINDER HEAD VT1100C SHADOW 1100 1988 (J) USA CALIFORNIA
REAR CYLINDER HEAD VT1100C SHADOW 1100 1988 (J) USA CALIFORNIA
los precios están en EUR
ref
parte #
descripción
cantidad
1
12020MM8000
ref: 1
HEAD ASSY,REAR CY
€ 1,128.00
2
12222MM8000
ref: 2
FIN A,REAR CYLIND
€ 163.00
3
12223MM8000
ref: 3
FIN B,REAR CYLIND
€ 163.00
4
12225MG8000
ref: 4
SLEEVE,PLUG
12225MG8000
€ 33.00
5
12231MG8305
ref: 5
GUIDE,IN.VALVE
12231MG8305
€ 24.00
6
12233MG8305
ref: 6
GUIDE,EX.VALVE
12233MG8305
€ 30.50
6
12233MG8405
ref: 6
GUIDE,VALVE
12233MG8405
€ 30.50
7
12251MG8004
ref: 7
GASKET CYLN HEAD (NAS)
12251MG8004
€ 31.00
8
12312ME9750
ref: 8
PLUG CAM SHAFT
12312ME9750
€ 8.50
9
16211MG8000
ref: 9
INSULATOR CARB
16211MG8000
€ 18.50
10
16219MG8770
ref: 10
BAND,INSULATOR
16219MG8770
€ 6.00
11
38119MM8000
ref: 11
GROMMET,HORN STAY
€ 4.50
12
50328MM8000
ref: 12
STAY,R.HORN
€ 14.50
13
50329MM8000
ref: 13
STAY,L.HORN
€ 9.00
14
61104943000
ref: 14
COLLAR TANK M/T
61104943000
€ 3.50
15
90015MG8000
ref: 15
BOLT FLANGE,8X150
90015MG8000
€ 7.50
16
90209MM8000
ref: 16
NUT,CAP,10MM
90209MM8000
€ 2.50
17
90403ML4610
ref: 17
WASHER, SEALING, 10MM\t
90403ML4610
€ 6.50
18
90441ME9000
ref: 18
WASH,SEALING,8MM
90441ME9000
€ 2.00
19
90452323000
ref: 19
WASHER 5MM
90452323000
€ 2.00
20
91304MG7003
ref: 20
O-RING,27.4X2.4
91304MG7003
€ 7.50
21
91351MG7004
ref: 21
O-RING,35.3X2.4
91351MG7004
€ 8.00
22
92900080350B
ref: 22
BOLT,STUD,2 8X35
92900080350B
€ 3.00
22
92900080350E
ref: 22
BOLT,STUD,8X35
92900080350E
€ 3.00
23
93500050080A
ref: 23
SCREW,CROSS 5X8
93500050080A
€ 0.50
24
93500050250G
ref: 24
SCREW,PAN,5X25
93500050250G
€ 1.50
25
9410110000
ref: 25
WASHER,10MM
9410110000
€ 1.00
27
9430114200
ref: 27
DOWEL,PIN,14X20
9430114200
€ 2.00
28
957010602500
ref: 28
BOLT,FLANGE,6X25
957010602500
€ 1.50
29
957010603507
ref: 29
BOLT,FLANGE,6X35
957010603507
€ 1.00
30
966000602007
ref: 30
BOLT,SOCKET,6X20
966000602007
€ 1.50
30
967000602007
ref: 30
BOLT,SOCKET,6X20
967000602007
€ 1.50
31
967000603507
ref: 31
BOLT SOCKET 6X35
967000603507
€ 2.00
32
967000604507
ref: 32
SOCKET BOLT,6X45
967000604507
€ 2.00
33
9806956916
ref: 33
SPARK PLUG(DPR6EA
9806956916
€ 9.50
33
9806956926
ref: 33
PLUG,SPARK (X20EP
9806956926
€ 8.50
33
9806957916
ref: 33
SPARK PLUG(NGK)
9806957916
€ 9.50
33
9806957926
ref: 33
SPARK PLUG (ND)
9806957926
€ 9.50
33
9806958916
ref: 33
SPARK PLUG (NGK)
9806958916
€ 9.50
33
9806958926
ref: 33
SPARK PLUG (ND)
9806958926
€ 8.50
