FRONT MASTER CYLINDER

VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

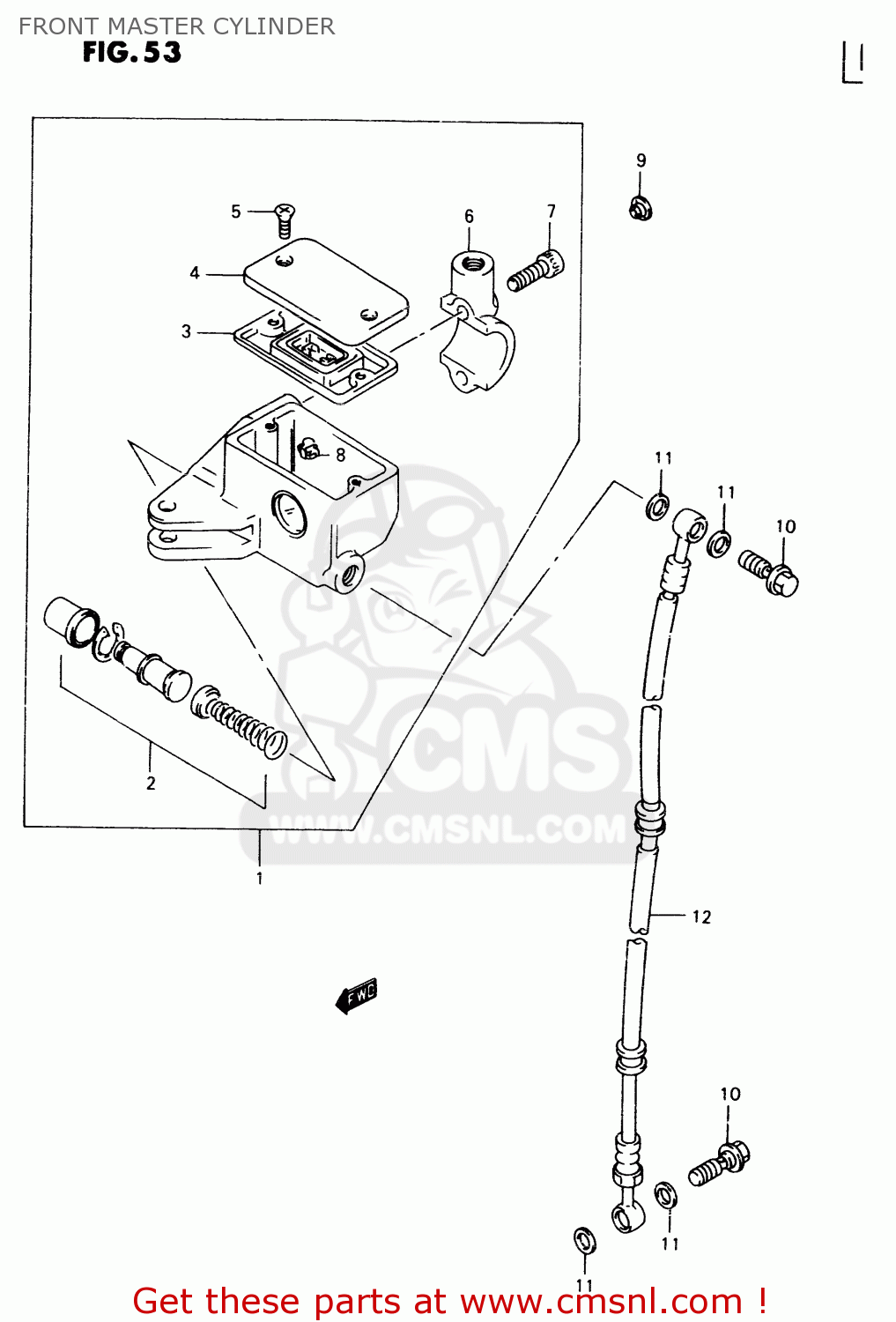

Front master cylinder diagram VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

FRONT MASTER CYLINDER VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37
FRONT MASTER CYLINDER VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37
prices are in EUR
ref
part #
description
quantity
1
5960037D10
ref: 1
CYLINDER ASSY,FR MASTER
5960037D10
€ 317.00
2
5960004810
ref: 2
PISTON/CUP SET
5960004810
€ 33.50
4
5966924B00
ref: 4
CAP
5966924B00
€ 54.00
5
0212204127
ref: 5
SCREW
0212204127
€ 1.50
6
5967138A00
ref: 6
HOLDER
5967138A00
€ 30.50
7
0713006207
ref: 7
BOLT
0713006207
€ 3.50
8
5966448B00
ref: 8
PROTECTOR
5966448B00
€ 7.50
9
0925005008
ref: 9
CAP(OD:10)
0925005008
€ 4.00
10
0936010042
ref: 10
BOLT UNION
0936010042
€ 4.50
11
0916110009
ref: 11
WASHER(10X15X1.5)
0916110009
€ 1.50
12
5948048E10
ref: 12
HOSE COMP,FRONT BRAKE
5948048E10
€ 100.50
