EXHAUST VALVE (MODEL K/L/M/N/P/R/S)

RM80X 1993 (P)

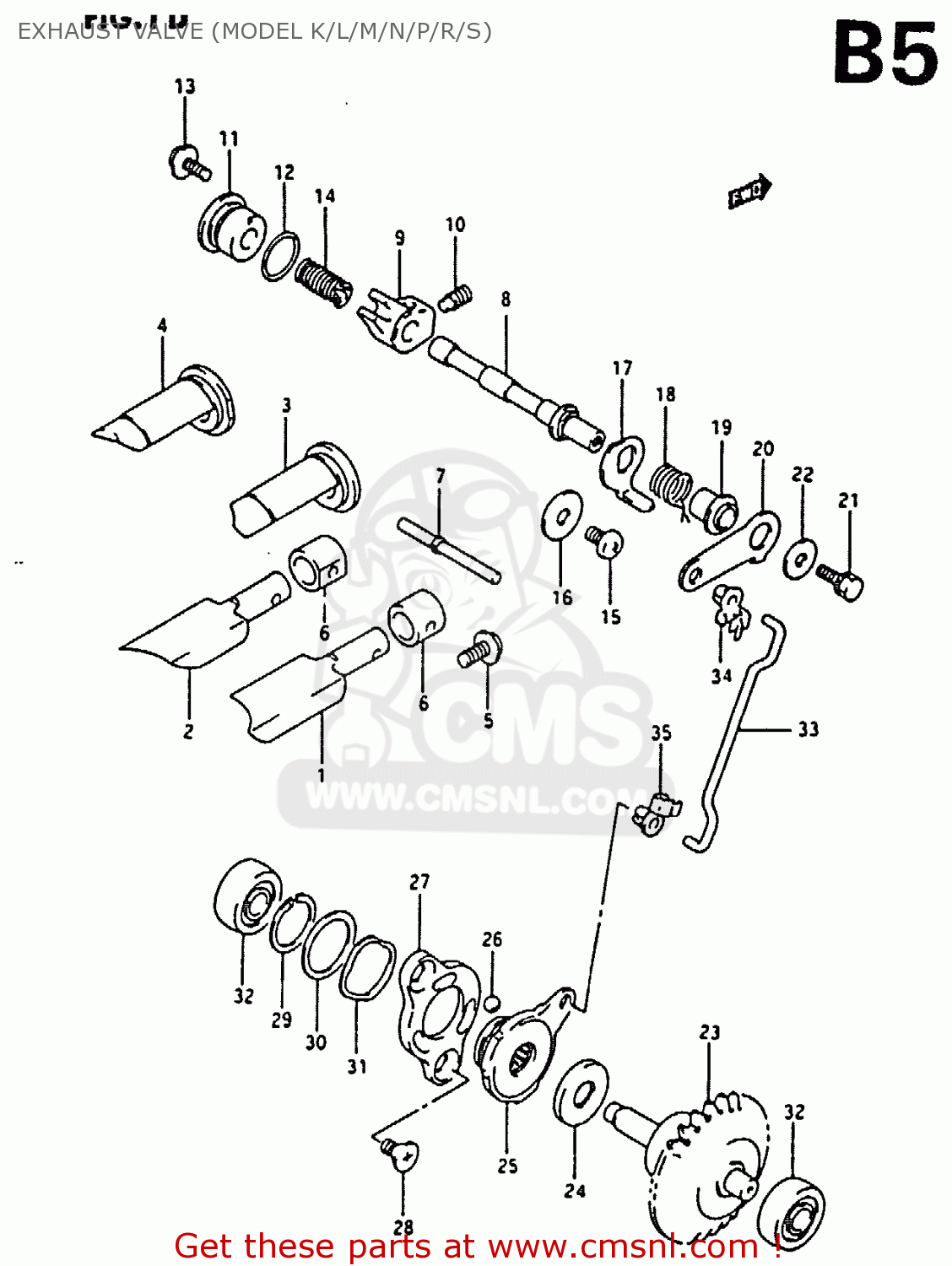

Exhaust valve (model k/l/m/n/p/r/s) diagram RM80X 1993 (P)

EXHAUST VALVE (MODEL K/L/M/N/P/R/S) RM80X 1993 (P)
EXHAUST VALVE (MODEL K/L/M/N/P/R/S) RM80X 1993 (P)
prices are in EUR
ref
part #
description
quantity
1
1125402B50
ref: 1
VALVE,EXHAUST,R
1125402B50
€ 97.50
2
1125502B50
ref: 2
VALVE,EXHAUST,L
1125502B50
€ 97.50
3
1126102B50
ref: 3
GUIDE,EXHAUST VALVE,R
1126102B50
€ 91.50
4
1126202B50
ref: 4
GUIDE,EXHAUST VALVE,L
1126202B50
€ 91.50
5-1
0211215128
ref: 5-1
MODEL K/L/M/N/P
SCREW
€ 1.50
5-2
0211215123
ref: 5-2
MODEL R/S
SCREW 5X12
0211215123
€ 1.50
6
1126301B30
ref: 6
SPACER,EXHAUST VALVE
1126301B30
€ 13.00
7
1125301B31
ref: 7
PIN,EXHAUST VALVE 48.5MM
1125301B31
€ 20.00
8
1125902B40
ref: 8
SHAFT,EXHAUST VALVE
1125902B40
€ 51.00
9
1126400B23
ref: 9
ARM,EXHAUST VALVE SHAFT
1126400B23
€ 16.00
10
0913406013
ref: 10
@l09134-06011
SCREW(6X10)
0913406013
€ 4.00
11
1125802B40
ref: 11
CAP,EXHAUST VALVE
1125802B40
€ 45.00
12-1
0928015011
ref: 12-1
MODEL K/L/M/N/P/R
O-RING
€ 2.50
12-2
0928015006
ref: 12-2
MODEL S
O RING(D:1.9,ID:14.5)
0928015006
€ 2.50
13-1
0211215128
ref: 13-1
MODEL K/L/M/N/P
SCREW
€ 1.50
13-2
0156005123
ref: 13-2
MODEL R/S
BOLT
0156005123
€ 2.00
14
0944810004
ref: 14
SPRING
0944810004
€ 6.00
15-1
0211206087
ref: 15-1
MODEL K/L/M/N/P
SCREW
0211206087
€ 1.50
15-2
0211206083
ref: 15-2
MODEL R/S
SCREW
0211206083
€ 1.50
16
0821206201
ref: 16
WASHER
0821206201
€ 1.50
17-1
1126700B20
ref: 17-1
MODEL K/L/M/N/P
LEVER,EXHAUST VALVE NO
€ 5.00
17-2
1126700B21
ref: 17-2
MODEL R/S
LEVER,EXHAUST VALVE NO.2
1126700B21
€ 5.00
18
0944415008
ref: 18
SPRING
0944415008
€ 5.00
19
1126801B00
ref: 19
SPACER,EXHAUST VALVE
1126801B00
€ 7.50
20
1126600B21
ref: 20
LEVER,EXHAUST VALVE NO.1
1126600B21
€ 3.00
21
0157005123
ref: 21
BOLT
0157005123
€ 2.00
22
0916005017
ref: 22
WASHER (5.5X16X1.2)
0916005017
€ 2.00
23
1267002B40
ref: 23
GOVERNOR ASSEMBLY,EXHAUST
1267002B40
€ 63.00
24
0926310002
ref: 24
BEARING(10X22X2.8)
0926310002
€ 7.00
25
1268001820
ref: 25
ACTUATOR,EXHAUST VALVE
1268001820
€ 45.00
26
0611106003
ref: 26
BALL
0611106003
€ 1.00
27
1268201B02
ref: 27
STARTER,EXHAUST VALVE ACTUATOR
1268201B02
€ 24.50
28
0912005003
ref: 28
SCREW(5X10)
0912005003
€ 1.50
29
0938019003
ref: 29
CIRCLIP
0938019003
€ 2.50
30
0918119004
ref: 30
SHIM(19.1X25X0.3)
0918119004
€ 4.00
31
0916419001
ref: 31
WASHER
0916419001
€ 7.00
32
0926208005
ref: 32
BEARING(8X22X7)
0926208005
€ 8.50
33
1268502B40
ref: 33
ROD,EXHAUST VALVE
1268502B40
€ 2.50
34
1268601B00
ref: 34
BUSH,EXHAUST VALVE ROD NO.1
1268601B00
€ 1.50
35
1268701B00
ref: 35
BUSH,EXHAUST VALVE ROD NO.2
1268701B00
€ 1.50
