CARBURETOR (MODEL K/L/M/N/P/R/S)

RM80X 1987 (H)

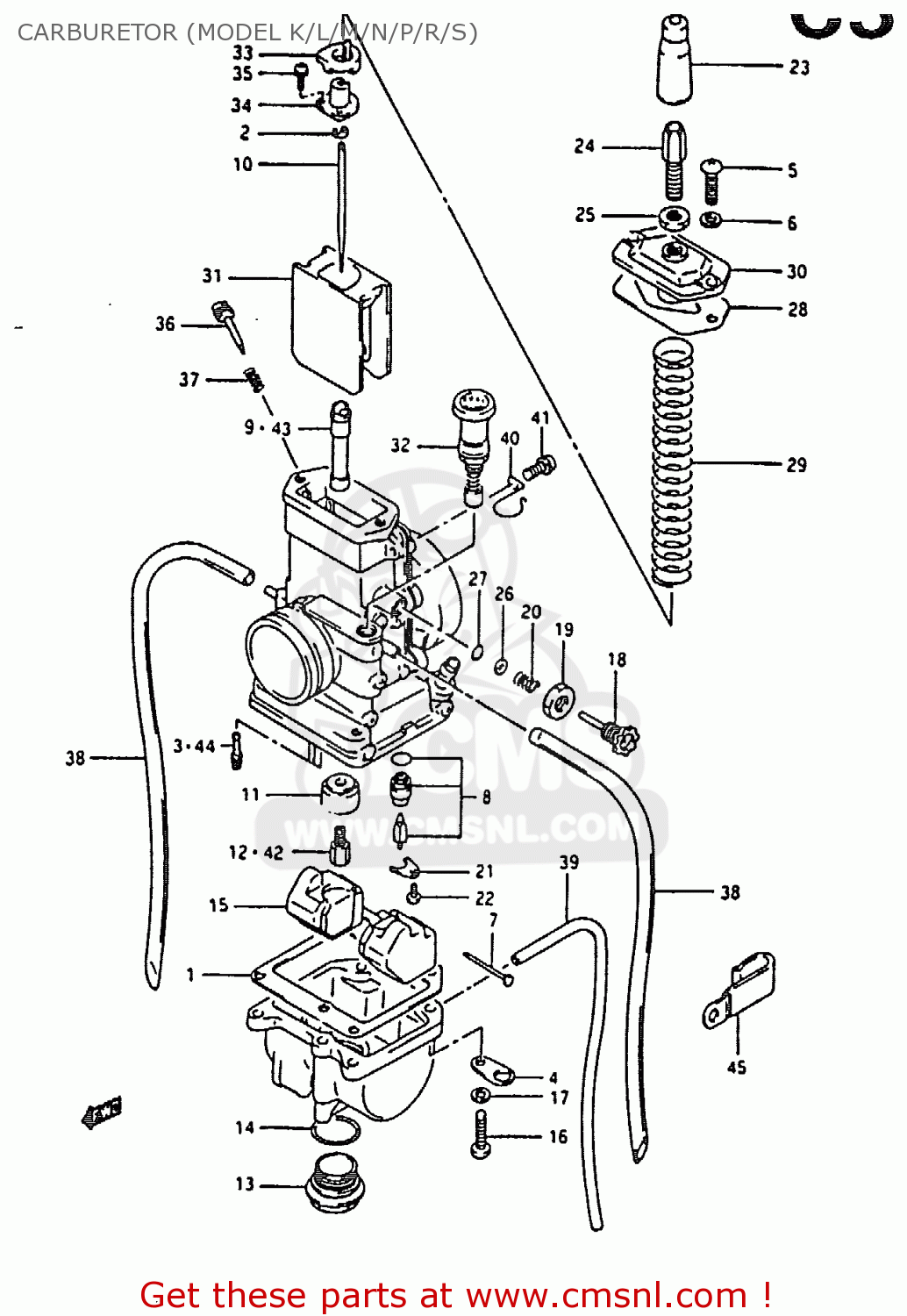

Carburetor (model k/l/m/n/p/r/s) diagram RM80X 1987 (H)

CARBURETOR (MODEL K/L/M/N/P/R/S) RM80X 1987 (H)
CARBURETOR (MODEL K/L/M/N/P/R/S) RM80X 1987 (H)
prices are in EUR
ref
part #
description
quantity
0
1320002B40
ref: 0
MODEL K
CARBURETOR ASSEMBLY
€ 221.00
0
1320002B50
ref: 0
MODEL L
CARBURETOR ASSEMBLY
€ 221.00
0
1320003B00
ref: 0
MODEL M/N/P/R/S
CARBURETOR ASSY
1320003B00
€ 221.00
1-1
1325129630
ref: 1-1
MODEL K
GASKET,FLOAT CHAMBER (NAS)
1325129630
€ 6.50
1-2
1325102B40
ref: 1-2
MODEL L/M/N/P/R/S
GASKET,FLOAT CAHMBER (NAS)
1325102B40
€ 6.00
2
1339410010
ref: 2
CLIP
1339410010
€ 4.00
3
0949230006
ref: 3
JET,PILOT(30)
0949230006
€ 8.50
4
1369336500
ref: 4
PLATE,CARBURETOR
1369336500
€ 3.50
5
0211204123
ref: 5
SCREW
0211204123
€ 1.50
6
0832101043
ref: 6
WASHER,LOCK
0832101043
€ 1.50
7
1325492311
ref: 7
PIN,FLOAT
1325492311
€ 2.00
8-1
1337046900
ref: 8-1
MODEL K
VALVE ASSY,NEEDLE
1337046900
€ 48.00
8-2
1337002B50
ref: 8-2
MODEL L/M/N/P/R/S
VALVE ASSY,NEEDLE
1337002B50
€ 48.00
9
0949400523
ref: 9
JET,NEEDLE(P-4)
0949400523
€ 13.50
10
1338346900
ref: 10
NEEDLE,JET(5DP39-4)
1338346900
€ 10.50
11
1333128710
ref: 11
RING
1333128710
€ 8.00
12-1
0949140006
ref: 12-1
MODEL K/L
JET,MAIN(200)
0949140006
€ 10.50
12-2
0949142001
ref: 12-2
MODEL M/N/P/R/S
JET,MAIN (210)
€ 10.00
13
1324746900
ref: 13
PLUG
€ 11.50
14
1324629630
ref: 14
O RING
1324629630
€ 4.50
15-1
1325229630
ref: 15-1
MODEL K
FLOAT
1325229630
€ 21.00
15-2
1325202B50
ref: 15-2
MODEL L/M/N/P/R/S
FLOAT
1325202B50
€ 26.00
16
0211204203
ref: 16
SCREW
0211204203
€ 1.00
17
0832101043
ref: 17
WASHER,LOCK
0832101043
€ 1.50
16
0211204203
ref: 16
SCREW
0211204203
€ 1.00
18
1326716700
ref: 18
ADJUSTER,THROTTLE STOP
1326716700
€ 10.50
19
1366102B00
ref: 19
NUT
1366102B00
€ 4.00
20
1326835010
ref: 20
SPRING
1326835010
€ 2.50
21
1337339110
ref: 21
PLATE
1337339110
€ 6.50
22
0211204087
ref: 22
SCREW
0211204087
€ 1.00
23
1368133010
ref: 23
CAP,CABLE ADJUSTER
1368133010
€ 7.00
24
1357741612
ref: 24
ADJUSTER,CABLE
1357741612
€ 7.50
25
1366116600
ref: 25
NUT
1366116600
€ 4.50
26
1329135010
ref: 26
WASHER
1329135010
€ 2.50
27
1329533010
ref: 27
O RING
1329533010
€ 3.50
28
1326616700
ref: 28
GASKET,CARBURETOR TOP (NAS)
1326616700
€ 5.50
29
1357316700
ref: 29
SPRING
1357316700
€ 5.50
30
1326116700
ref: 30
CAP,CARBURETOR TOP
1326116700
€ 13.50
31
1355120910
ref: 31
VALVE,THROTTLE
1355120910
€ 56.50
32-1
1340020910
ref: 32-1
MODEL K
VALVE ASSEMBLY,STARTER
1340020910
€ 30.50
32-2
1341026410
ref: 32-2
MODEL L/M/N/P/R/S
PLUNGER ASSY,STARTER
€ 30.50
33
1362916700
ref: 33
RING
1362916700
€ 10.50
34
1339816700
ref: 34
JOINT
1339816700
€ 6.50
35
0211233103
ref: 35
SCREW
€ 1.50
36-1
1326916700
ref: 36-1
MODEL K
SCREW,AIR
1326916700
€ 8.50
36-2
1326916700
ref: 36-2
MODEL L/M/N/P/R/S
SCREW,AIR
1326916700
€ 8.50
37
1326801010
ref: 37
SPRING
1326801010
€ 3.00
38
0935135653600
ref: 38
L:600@r330
HOSE(3.5X6.5X600)
0935135653600
€ 4.00
39
0935230503600
ref: 39
L:600@r250
HOSE(3X5X600)
0935230503600
€ 7.50
40
1369214500
ref: 40
CLIP
1369214500
€ 4.00
41
1360104148
ref: 41
SCREW
1360104148
€ 2.50
42-1
0949134002
ref: 42-1
OPT
JET,MAIN(170)
0949134002
€ 6.00
42-2
0949136006
ref: 42-2
OPT
JET,MAIN(180)
0949136006
€ 13.50
42-3
0949138009
ref: 42-3
OPT
JET,MAIN(190)
0949138009
€ 10.00
42-4
0949140006
ref: 42-4
OPT
JET,MAIN(200)
0949140006
€ 10.50
42-5
0949142001
ref: 42-5
OPT
JET,MAIN (210)
€ 10.00
42-6
0949144001
ref: 42-6
OPT
JET,MAIN (220)
€ 9.50
42-7
0949146001
ref: 42-7
OPT
JET,MAIN(230)
0949146001
€ 6.50
43-1
0949400519
ref: 43-1
OPT
JET,NEEDLE(P-0)
0949400519
€ 14.50
43-2
0949400522
ref: 43-2
OPT
JET,NEEDLE,P-2
0949400522
€ 13.50
43-3
0949400523
ref: 43-3
OPT
JET,NEEDLE(P-4)
0949400523
€ 13.50
43-4
0949400585
ref: 43-4
OPT
JET,NEEDLE,P-6
0949400585
€ 18.00
43-5
0949400584
ref: 43-5
OPT
JET,NEEDLE (P-8)
€ 23.50
44-1
0949225005
ref: 44-1
OPT
JET,PILOT(25)
0949225005
€ 7.00
44-2
0949235004
ref: 44-2
OPT
JET,PILOT(35)
0949235004
€ 7.00
45
0940306307
ref: 45
CLAMP
0940306307
€ 4.00
38
1368337420
ref: 38
L:500@r350
HOSE
€ 4.00
39
1368336A00
ref: 39
HOSE
€ 7.50
40-1
0949130017
ref: 40-1
OPT
JET,MAIN(150)
0949130017
€ 10.50
40-2
0949132002
ref: 40-2
OPT
JET,MAIN(160)
0949132002
€ 6.50
40-3
0949134002
ref: 40-3
OPT
JET,MAIN(170)
0949134002
€ 6.00
40-4
0949138009
ref: 40-4
OPT
JET,MAIN(190)
0949138009
€ 10.00
40-5
0949140006
ref: 40-5
OPT
JET,MAIN(200)
0949140006
€ 10.50
40-6
0949142001
ref: 40-6
OPT
JET,MAIN (210)
€ 10.00
41-1
0949400519
ref: 41-1
OPT
JET,NEEDLE(P-0)
0949400519
€ 14.50
41-2
0949400522
ref: 41-2
JET,NEEDLE,P-2
0949400522
€ 13.50
41-3
0949400523
ref: 41-3
OPT
JET,NEEDLE(P-4)
0949400523
€ 13.50
41-4
0949400584
ref: 41-4
OPT
JET,NEEDLE (P-8)
€ 23.50
41-5
0949400461
ref: 41-5
OPT
JET,NEEDLE
€ 0.00
42-1
0949225005
ref: 42-1
OPT
JET,PILOT(25)
0949225005
€ 7.00
42-2
0949235004
ref: 42-2
OPT
JET,PILOT(35)
0949235004
€ 7.00
43
0940406401
ref: 43
CLAMP L:35
0940406401
€ 2.00
