FRONT MASTER CYLINDER

RM-Z250 2013 (L3) USA (E03) RMZ250 RM Z250

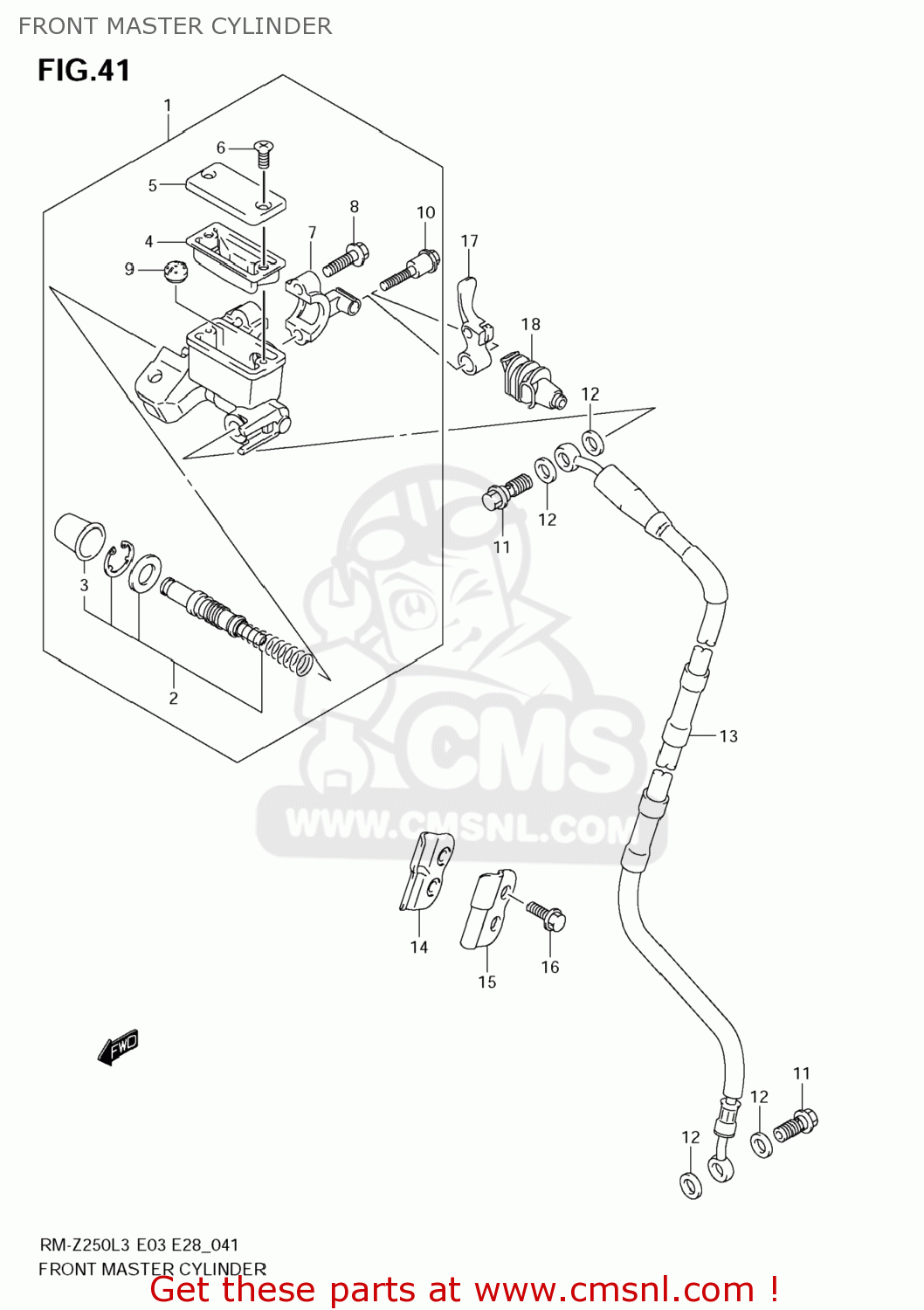

Front master cylinder diagram RM-Z250 2013 (L3) USA (E03) RMZ250 RM Z250

FRONT MASTER CYLINDER RM-Z250 2013 (L3) USA (E03) RMZ250 RM Z250
FRONT MASTER CYLINDER RM-Z250 2013 (L3) USA (E03) RMZ250 RM Z250
prices are in EUR
ref
part #
description
quantity
1
5960028H00
ref: 1
CYLINDER ASSY,FR MASTER
€ 225.00
2
5960037810
ref: 2
PISTON & CUP SET
5960037810
€ 35.50
3
5966644300
ref: 3
BOOT
5966644300
€ 5.00
4
5966714500
ref: 4
DIAPHRAGM
5966714500
€ 5.50
5
5966927C01
ref: 5
CAP
5966927C01
€ 11.50
6
6968949300
ref: 6
SCREW
6968949300
€ 1.50
7
5967128H00
ref: 7
HOLDER
5967128H00
€ 21.00
8
5967506F10
ref: 8
BOLT
€ 2.50
9
5974836E00
ref: 9
SEPARATOR
5974836E00
€ 5.00
10
5751728H00
ref: 10
BOLT,MASTER CYLINDER HOLDER
5751728H00
€ 6.50
11
0936010065
ref: 11
BOLT UNION
0936010065
€ 5.50
12
0916110009
ref: 12
WASHER(10X15X1.5)
0916110009
€ 1.50
13
5948028H00
ref: 13
HOSE,FR BRAKE
5948028H00
€ 150.50
14
5926028H20
ref: 14
CLAMP,FR BRAKE HOSE INNER
€ 13.50
15
5927128H10
ref: 15
CLAMP,FR BRAKE HOSE
€ 6.00
16
0910306234
ref: 16
BOLT(6X16)
0910306234
€ 2.00
17
5715328H01
ref: 17
LEVER,MASTER CYLINDER HOLDER
5715328H01
€ 10.00
18
5751628H10
ref: 18
COVER,MASTER CYL HOLDER LEVER
5751628H10
€ 5.50
