REAR BRAKE

LT125 1983 (D)

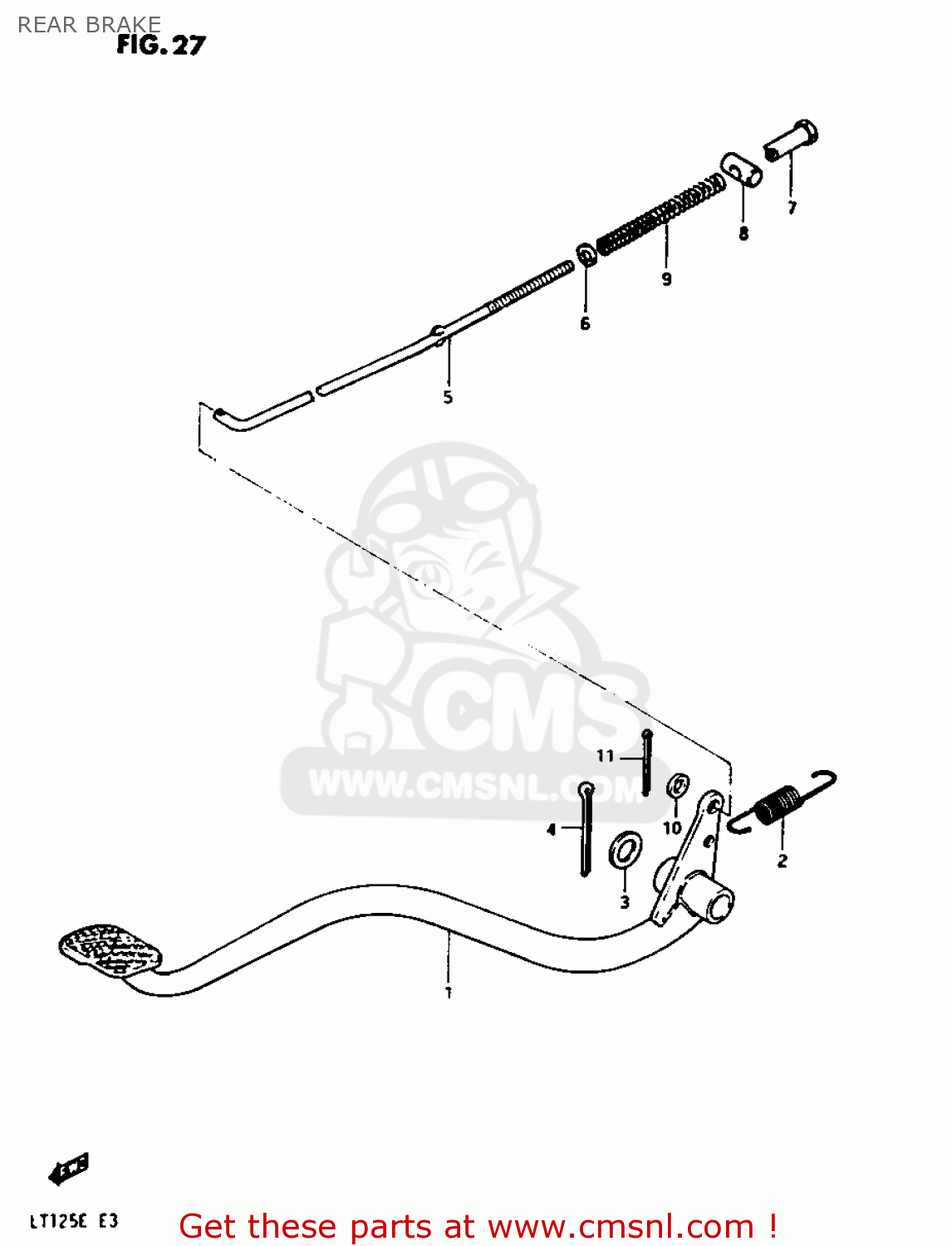

Rear brake diagram LT125 1983 (D)

REAR BRAKE LT125 1983 (D)
REAR BRAKE LT125 1983 (D)
prices are in EUR
ref
part #
description
quantity
1
4311024300
ref: 1
PEDAL,BRAKE
4311024300
€ 42.00
2
0944314020
ref: 2
SPRING
€ 3.00
3
0916015002
ref: 3
WASHER(15.5X26X2.3)
0916015002
€ 1.50
4
0411130308
ref: 4
COTTER PIN
0411130308
€ 1.50
5
4330024X51
ref: 5
ROD ASSY,RR BRAKE
€ 7.00
6
0832201067
ref: 6
WASHER
0832201067
€ 1.50
7
0915006012
ref: 7
NUT
0915006012
€ 4.50
8
0920913006
ref: 8
PIN
0920913006
€ 6.00
9
0944009013
ref: 9
SPRING
€ 2.00
10
0832221057
ref: 10
WASHER
0832221057
€ 2.00
11
0411120208
ref: 11
PIN 20X20
0411120208
€ 1.00
