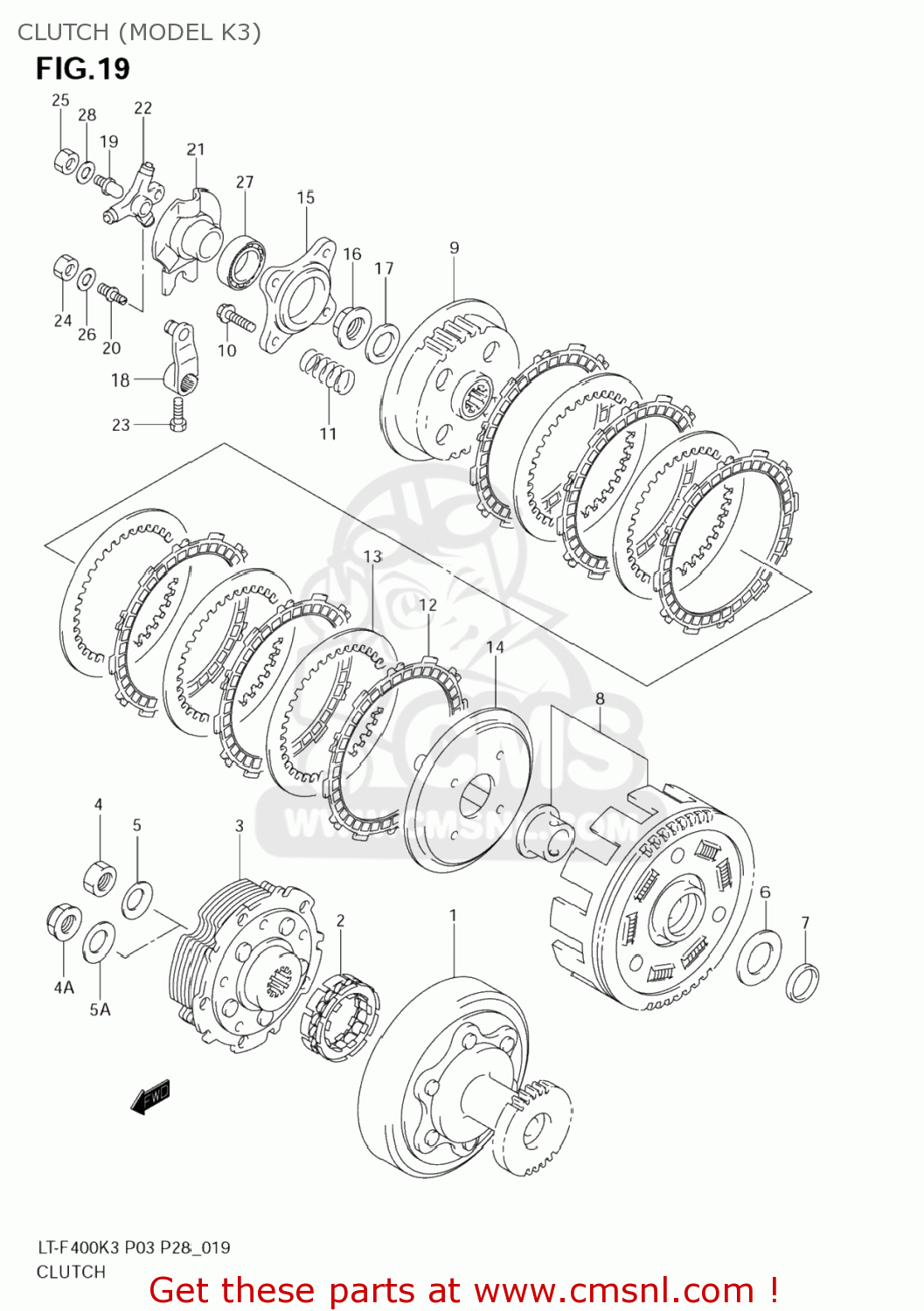

CLUTCH (MODEL K3)

ref

part #

description

quantity

1

2112038F60
ref: 1

HOUSING,STARTER CLUTCH

€ 208.50

2

2127344D00
ref: 2

CLUTCH,PRIMARY DRIVE ONE WAY

€ 80.50

3-1

2150038F50
ref: 3-1

SHOE,STARTER CLUTCH (NAS)

€ 287.50

3-2

2150038F60
ref: 3-2

SHOE,STARTER CLUTCH (NAS)

€ 318.50

4

0914018004
ref: 4

NUT

€ 3.00

4A

2151844D00
ref: 4A

NUT,STARTER CLUTCH SHOE

€ 7.50

5

0916418007
ref: 5
09164-18001

WASHER

€ 3.00

5A

0916420007
ref: 5A

WASHER

€ 3.50

6

0918022045
ref: 6

SPACER(22X28X3.5)

€ 3.00

7

0821122423
ref: 7

WASHER

€ 3.00

8

2120038850
ref: 8

GEAR ASSY,PRI DRIVEN

€ 190.50

9

2141144D00
ref: 9

HUB,CLUTCH SLEEVE

€ 65.50

10

0910306099
ref: 10

BOLT(6X25)

€ 1.00

11

2141338F50
ref: 11

SPRING,CLUTCH

€ 4.00

12

2144144D00
ref: 12

PLATE,CLUTCH DRIVE (NAS)

€ 12.50

13

2145144D00
ref: 13

PLATE,CLUTCH DRIVEN (NAS)

€ 7.00

14

2146244D00
ref: 14

DISC,CLUTCH PRESSURE

€ 30.50

15

2146544D00
ref: 15

PLATE,CLUTCH RELEASE

€ 9.50

16

2141444D00
ref: 16

NUT,CLUTCH SLEEVE HUB

€ 7.00

17

0916420007
ref: 17

WASHER

€ 3.50

18

2322038F50
ref: 18

ARM,CLUTCH RELEASE

€ 18.50

19

2322344D11
ref: 19

BOLT,CLUTCH RLSE ADJ NO.1

€ 4.00

20

2322444D00
ref: 20

BOLT,CLUTCH RLSE ADJ NO.2

€ 3.50

21

2323038F50
ref: 21

GUIDE,CL RELEASE ROLLER

€ 30.00

22

2325038F50
ref: 22

ROLLER ASSY,CLUTCH RELEASE

€ 33.50

23

0150006203
ref: 23
01500-0620A

BOLT

€ 1.50

24

0914006023
ref: 24

NUT

€ 2.00

25

0914008005
ref: 25
09140-08017

NUT (8MM)

€ 1.50

26

0916006079
ref: 26
09160-06052

WASHER(6.5X16X1.2)

€ 2.00

27

0811369050
ref: 27

BEARING

€ 29.00

28

0916008103
ref: 28

WASHER(8X20X1)

€ 2.00

all assemblies
