REAR COMBINATION (MODEL K4)

LT-F250 OZARK 2006 (K6) USA (E03) LTF250 LT F250

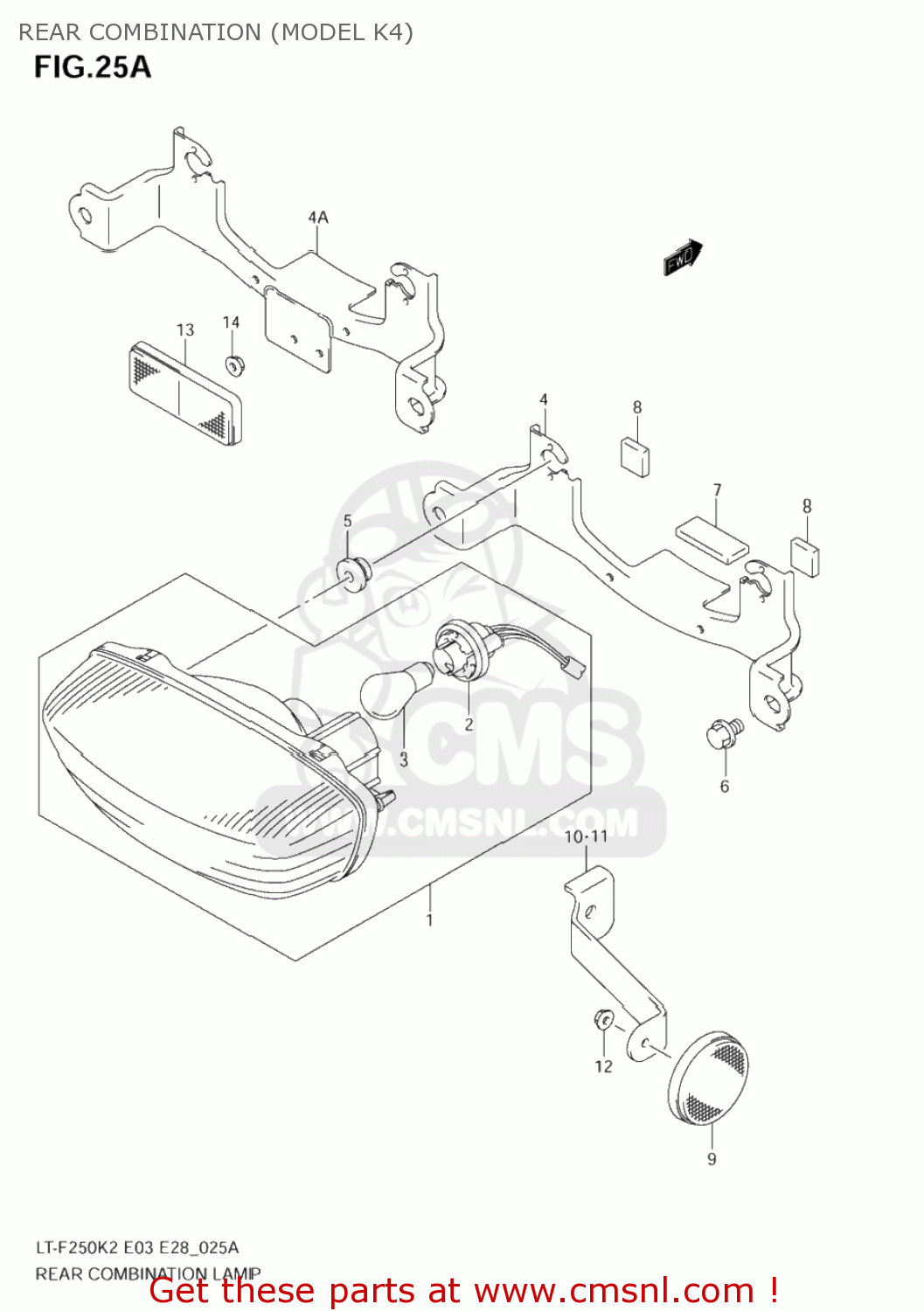

Rear combination (model k4) diagram LT-F250 OZARK 2006 (K6) USA (E03) LTF250 LT F250

REAR COMBINATION (MODEL K4) LT-F250 OZARK 2006 (K6) USA (E03) LTF250 LT F250
REAR COMBINATION (MODEL K4) LT-F250 OZARK 2006 (K6) USA (E03) LTF250 LT F250
prices are in EUR
ref
part #
description
quantity
1
3571003G00
ref: 1
35710-03G20
LAMP ASSY,RR COMBINATION
€ 64.50
2
3571803G00
ref: 2
SOCKET & CORD ASSY
€ 30.50
3
0947112083
ref: 3
09471-12128
BULB(12V21/5W)
0947112083
€ 5.50
4
3572605G00
ref: 4
BRACKET,RR COMBINATION LAMP
3572605G00
€ 17.00
4A
3572605G20
ref: 4A
BRACKET,RR LAMP
€ 19.50
5
0932006024
ref: 5
CUSHION
0932006024
€ 3.00
6
0155008123
ref: 6
01550-0812A
BOLT
0155008123
€ 2.50
7
3365205G10
ref: 7
CUSHION,RR LAMP(25X55X8)
€ 2.50
8
3365205G20
ref: 8
CUSHION,RR LAMP(17X17X12)
3365205G20
€ 1.50
9
3597014A10
ref: 9
REFLEX REFLECTOR,RR
3597014A10
€ 12.50
10
3597505G10
ref: 10
BRACKET,RR SIDE RR,R
€ 0.00
11
3597605G10
ref: 11
BRACKET,RR SIDE RR,L
€ 0.00
12
0831610053
ref: 12
08316-1005A
NUT
0831610053
€ 2.00
13
3597007F00
ref: 13
35970-07F01
REFLECTOR ASSEMBLY,REAR
€ 15.00
14
0831610053
ref: 14
08316-1005A
NUT
0831610053
€ 2.00
