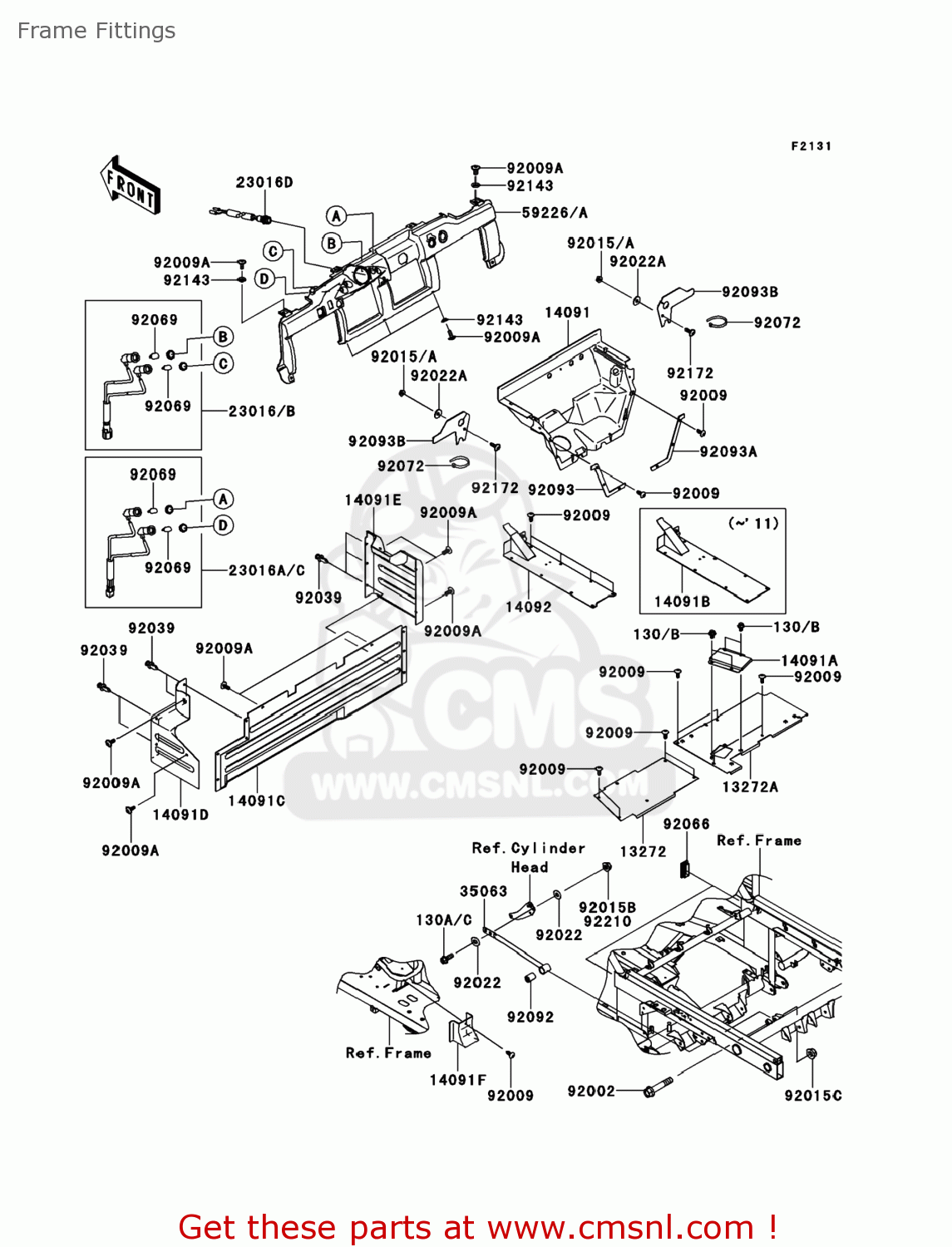

Frame Fittings

ref

part #

description

quantity

130B

130BB0610
ref: 130B

BOLT-FLANGED,6X10

€ 1.50

130C

130BB0822
ref: 130C

BOLT-FLANGED

€ 1.00

13272

132720284
ref: 13272

PLATE

€ 129.00

13272A

132720285
ref: 13272A

PLATE

€ 167.50

14091

140911378
ref: 14091

COVER,FLOOR

€ 119.50

14091A

140911666
ref: 14091A

COVER

€ 22.50

14091B

140911692
ref: 14091B

COVER,FLOOR,CNT,FR

€ 106.00

14091C

140917531
ref: 14091C

COVER,FRONT SEAT,CNT

€ 154.00

14091D

140917541
ref: 14091D

COVER,FRONT SEAT,LH

€ 40.00

14091E

140917542
ref: 14091E

COVER,FRONT SEAT,RH

€ 59.00

14091F

140917551
ref: 14091F

COVER,PARKING CABLE

€ 15.00

23016B

230160035
ref: 23016B

LAMP-ASSY,PARKING&WAT

€ 67.00

23016C

230160037
ref: 23016C

LAMP-ASSY,OIL PRESSUR

€ 65.50

23016D

230167501
ref: 23016D

LAMP-ASSY,LED

€ 15.00

35063

350631107
ref: 35063

STAY

€ 62.00

59226

5922600126Z
ref: 59226

PANEL-CONTROL,F.BLACK

€ 170.00

92002

920021757
ref: 92002

BOLT,ROD,12MM

€ 8.00

92009

920091166
ref: 92009

SCREW

€ 3.50

92009A

920091621
ref: 92009A

SCREW

€ 1.50

92015

920151233
ref: 92015

NUT,FLANGED,6MM

€ 3.50

92015C

920151706
ref: 92015C

NUT

€ 4.50

92022

920221317
ref: 92022

WASHER,8.5X20X1.6,BLA

€ 2.00

92022A

920221346
ref: 92022A

WASHER,6.5X20X1.6,BLA

€ 0.50

92039

920391229
ref: 92039

RIVET

€ 1.50

92066

920667505
ref: 92066

PLUG

€ 5.00

92069

920691059
ref: 92069

BULB,12V 1.7W

€ 2.50

92072

920723872
ref: 92072

BAND,L=368.3

€ 1.50

92092

92092005
ref: 92092

BUSH-SWING ARM SHAFT

€ 9.00

92093

920931293
ref: 92093

SEAL,FRONT FENDER,LH

€ 6.00

92093A

920931294
ref: 92093A

SEAL,FRONT FENDER,RH

€ 6.50

92093B

920931295
ref: 92093B

SEAL,LOWER COVER

€ 16.50

92143

921431087
ref: 92143

COLLAR

€ 2.50

92172

921720002
ref: 92172

SCREW,6X18

€ 1.50

92210

922100005
ref: 92210

NUT,FLANGED,LOCK,8MM

€ 3.00

all assemblies
