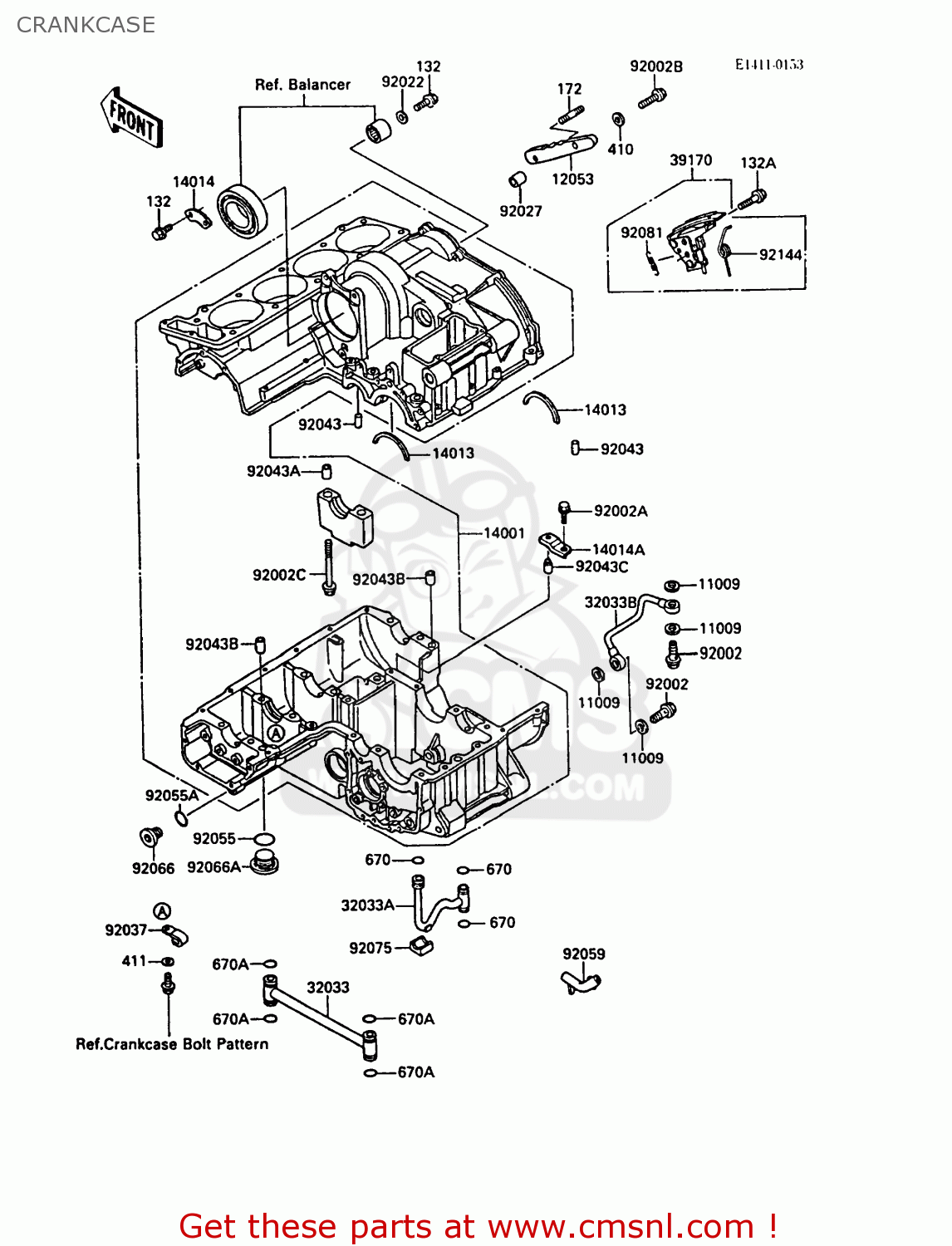

CRANKCASE

ref

part #

description

quantity

132

132G0612
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

132A

132G0630
ref: 132A

BOLT-FLANGED-SMALL

€ 1.50

172

172G0616
ref: 172

STUD,6X16

€ 1.00

410

410B0600
ref: 410

WASHER-PLAIN-SMALL,6M

€ 0.50

411

411F0600
ref: 411

WASHER-PLAIN,6MM,BLAC

€ 0.50

670

670D1509
ref: 670

O RING,9MM

€ 2.50

670A

670D2016
ref: 670A

O RING,16MM

€ 1.00

11009

110091376
ref: 11009

GASKET,12.5X18X1.5 (NAS)

€ 1.50

12053

120531189
ref: 12053

GUIDE-CHAIN

€ 12.50

14001

140015214
ref: 14001

SET-CRANKCASE

€ 2,200.00

14013

140131005
ref: 14013

RING-POSITION

€ 3.00

14014

140141056
ref: 14014

PLATE-POSITION

€ 9.00

14014A

140141067
ref: 14014A

PLATE-POSITION,BALANC

€ 9.50

32033

320331201
ref: 32033

PIPE,MAIN GALLARY

€ 35.00

32033A

320331202
ref: 32033A

PIPE

€ 25.50

32033B

320331961
ref: 32033B

PIPE

€ 35.00

39170

391701055
ref: 39170

TENSIONER-COMP

€ 165.00

92002

920011871
ref: 92002

BOLT,BANJO,12X23

€ 11.50

92002A

920021563
ref: 92002A

BOLT,6X12

€ 2.00

92002B

920021609
ref: 92002B

BOLT

€ 3.00

92002C

920021649
ref: 92002C

BOLT

€ 4.00

92022

920221517
ref: 92022

WASHER,6X19.5X2

€ 1.50

92027

920271079
ref: 92027

COLLAR,8X15

€ 2.50

92037

920371539
ref: 92037

CLAMP,L=45

€ 3.00

92043

92042016
ref: 92043

PIN,DOWEL,6X16

€ 3.00

92043A

92042031
ref: 92043A

PIN,DOWEL,12X14

€ 4.00

92043B

920431037
ref: 92043B

PIN,DOWEL,10X8.2X14

€ 0.50

92043C

920431281
ref: 92043C

PIN,BALANCER

€ 6.00

92055

920551136
ref: 92055

RING-O,OILPAN CAP

€ 3.00

92055A

920551146
ref: 92055A

RING-O

€ 5.00

92059

920591508
ref: 92059

TUBE

€ 11.50

92066

920661096
ref: 92066

PLUG,MAIN GALLARY,18X

€ 7.00

92066A

920661161
ref: 92066A

PLUG,25X8

€ 6.50

92075

920751785
ref: 92075

DAMPER

€ 3.00

92081

920811668
ref: 92081

SPRING

€ 8.00

92144

920811971
ref: 92144

SPRING

€ 4.50
