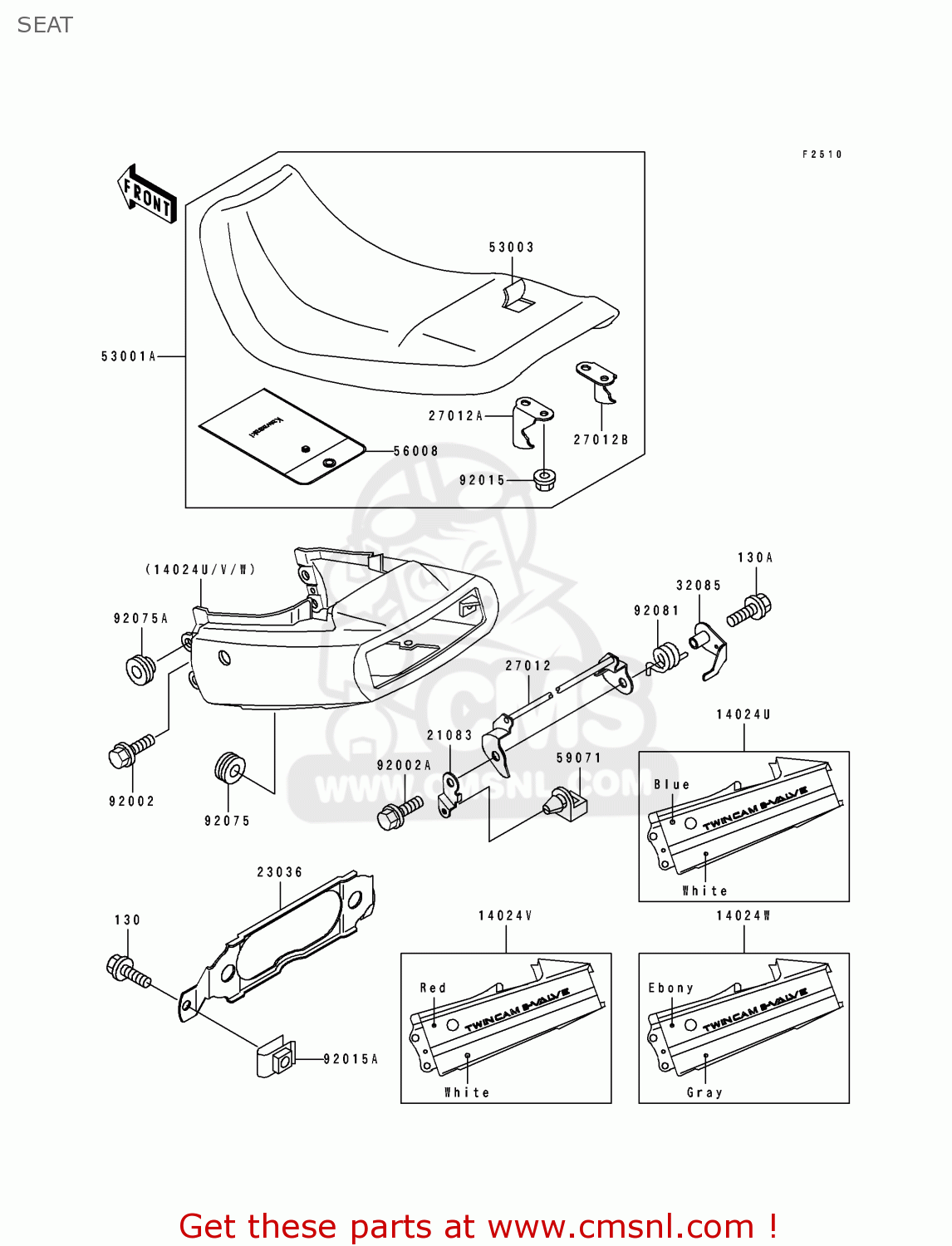

SEAT

ref

part #

description

quantity

14024U

140245205S3
ref: 14024U

COVER,SEAT,BLUE/WHITE

€ 185.50

14024V

140245206GP
ref: 14024V
UK

COVER,SEAT,RED/WHITE

€ 79.50

14024W

140245207FG
ref: 14024W

COVER,SEAT,EBONY/GRAY

€ 179.50

21083

210831063
ref: 21083

ARM,SEAT LOCK

€ 5.50

23036

230361111
ref: 23036

BRACKET-TAIL LAMP

€ 10.50

27012

270121363
ref: 27012

HOOK,SEAT LOCK

€ 33.50

27012A

270121377
ref: 27012A

HOOK,SEAT,LH

€ 5.50

27012B

270121378
ref: 27012B

HOOK,SEAT,RH

€ 6.50

32085

320851270
ref: 32085

STOPPER,SEAT LOCK SPR

€ 10.50

53001A

530011519MA
ref: 53001A

SEAT-ASSY,DUAL,BLACK

€ 292.00

53003

530031179MA
ref: 53003

LEATHER,SEAT,BLACK

€ 64.00

56008

560081066
ref: 56008

BAG,HAND BOOK

€ 32.00

59071

590711103
ref: 59071

JOINT

€ 5.00

92002

920021351
ref: 92002

BOLT

€ 2.50

92002A

920021884
ref: 92002A

BOLT,6X12

€ 2.50

130

130D0614
ref: 130

BOLT-FLANGED,6X14

€ 0.50

130A

130J0625
ref: 130A

BOLT-FLANGED,6X25

€ 1.50

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92015A

920151671
ref: 92015A

NUT

€ 4.50

92075

920751690
ref: 92075

DAMPER,10X24X12

€ 3.00

92075A

920751962
ref: 92075A

DAMPER,SIDE COVER

€ 3.50

92081

920811982
ref: 92081

SPRING

€ 3.50
