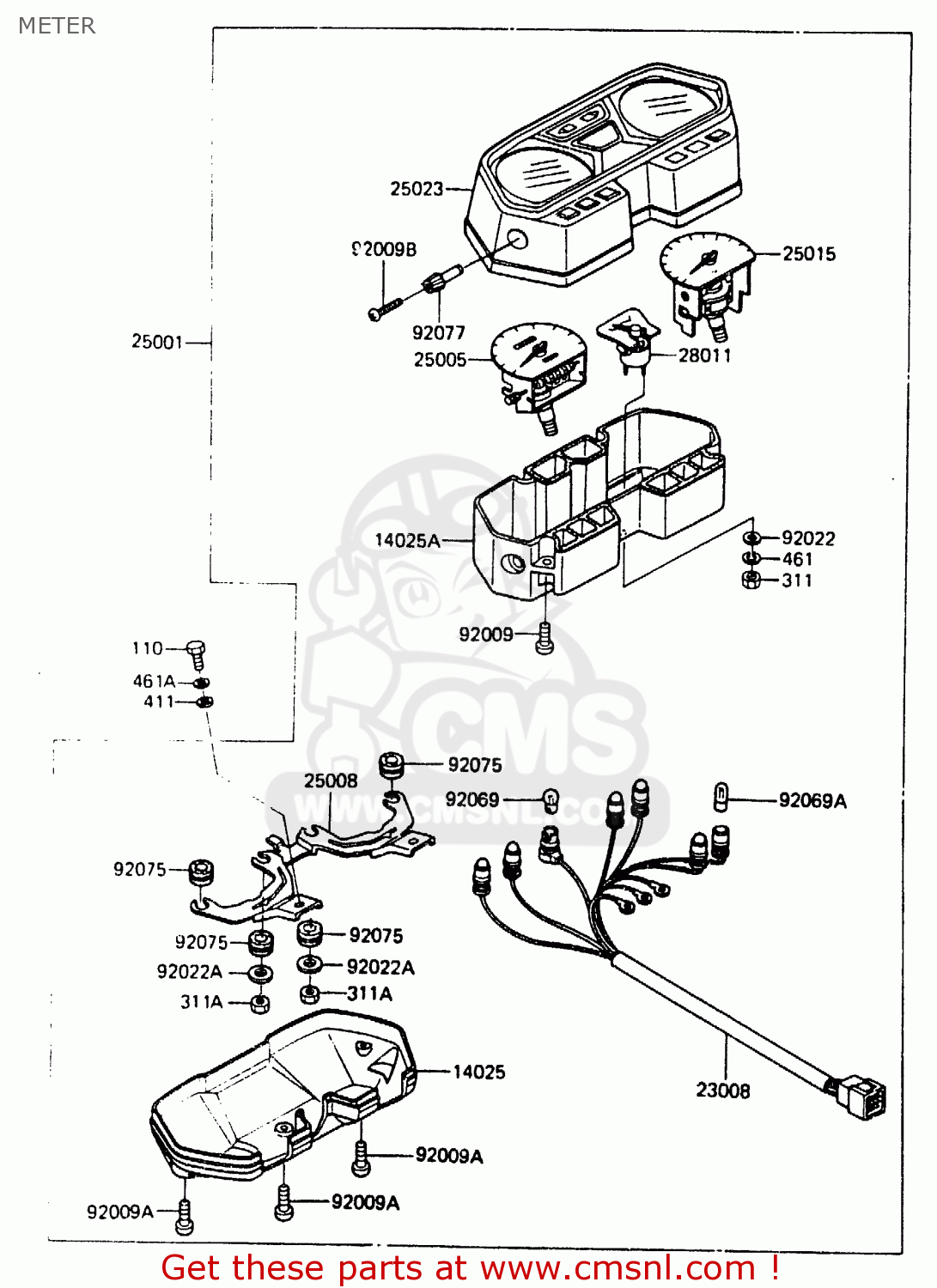

METER

ref

part #

description

quantity

14025

140251564
ref: 14025

COVER,METER CASE LWR

€ 23.50

14025A

140251604
ref: 14025A

COVER,METER CASE

€ 75.50

23008

230081186
ref: 23008

SOCKET-ASSY,METER

€ 57.50

25001

250011436
ref: 25001

METER-ASSY,KPH

€ 583.00

25005

250051208
ref: 25005

SPEEDOMETER,KPH

€ 249.00

25008

250081052
ref: 25008

BRACKET-METER

€ 32.00

25015

250151144
ref: 25015

TACHOMETER,(X1000R/MI

€ 177.50

25023

250231054
ref: 25023

COVER-METER CASE

€ 59.50

28011

280111034
ref: 28011

METER,FUEL

€ 56.00

92009

920091163
ref: 92009

SCREW,TAPPING,4X16

€ 2.50

92009A

920091164
ref: 92009A

SCREW,TAPPING,3X16

€ 2.50

92009B

920091172
ref: 92009B

SCREW,2X6,BLACK

€ 2.00

92022

920221374
ref: 92022

WASHER,3MM

€ 2.00

92022A

92022263
ref: 92022A

WASHER,PLAIN,6MM

€ 1.00

92069

92069017
ref: 92069

BULB 12V 1.5W

€ 4.00

92069A

920691007
ref: 92069A

BULB,12V3.4W

€ 2.50

92075

920751385
ref: 92075

DAMPER,METER BRACKET

€ 3.00

92077

920771015
ref: 92077

KNOB,METER

€ 5.50

110

110B0614
ref: 110

BOLT-HEX HEAD,6X14

€ 2.50

311

311B0300A
ref: 311

NUT,3M/M

€ 0.50

311A

311B0500A
ref: 311A

NUT,5MM

€ 0.50

411

411B0600
ref: 411

WASHER-PLAIN,6MM

€ 0.50

461

461F0300
ref: 461

WASHER-SPRING,3MM

€ 0.50

461A

461F0600
ref: 461A

WASHER-SPRING,6MM

€ 0.50

all assemblies
