SPEEDOMETER

VT1100C SHADOW 1100 1998 (W) USA CALIFORNIA

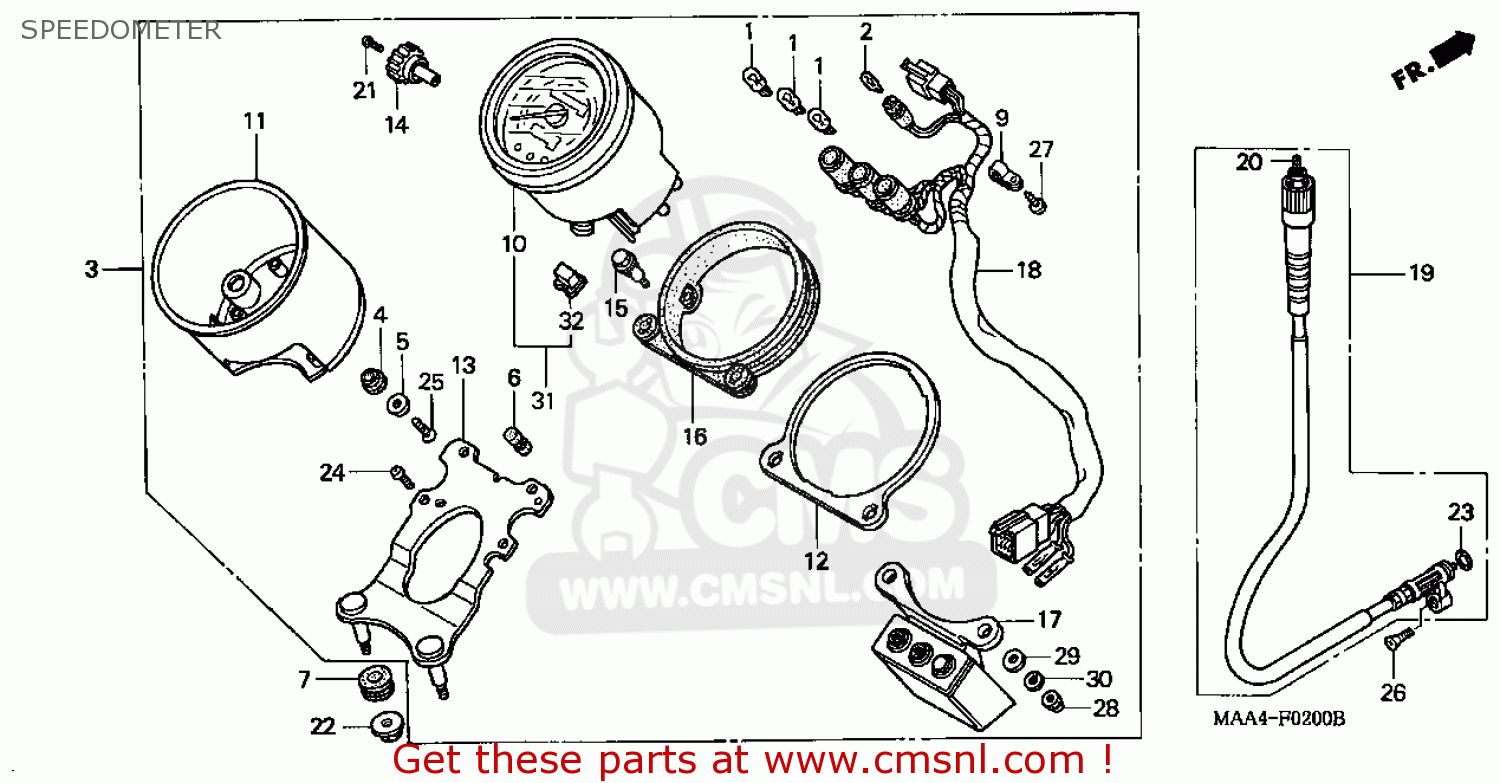

Speedometer diagram VT1100C SHADOW 1100 1998 (W) USA CALIFORNIA

SPEEDOMETER VT1100C SHADOW 1100 1998 (W) USA CALIFORNIA
SPEEDOMETER VT1100C SHADOW 1100 1998 (W) USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
1
34908GW3780
ref: 1
A, AC
BULB WEDGE BASE T
€ 3.00
1
34908GA7701
ref: 1
A, AC
BULB,WEDGE BASE
34908GA7701
€ 3.00
1
37102567009
ref: 1
A, AC
BULB
€ 3.00
1
37237SA5003
ref: 1
A, AC
BULB
37237SA5003
€ 3.00
1
37237SA5004
ref: 1
A, AC
BULB
€ 3.00
2
34908MZ0630
ref: 2
A, AC
BULB WEDGE BASE T
€ 3.00
2
34908KM1671
ref: 2
A, AC
BULB,WEDGE BASE,(
34908KM1671
€ 3.00
3
37100MAHA01
ref: 3
A, AC
METER ASSY,COMB
€ 489.50
3
37100MAHA10
ref: 3
A, AC
METER ASSY,COMB
€ 489.50
4
37101MAHA10
ref: 4
A, AC
RUBBER METER SET
€ 2.00
4
37101MB1008
ref: 4
A, AC
RUB.,METER,SET
37101MB1008
€ 2.00
5
37102MAHA10
ref: 5
A, AC
WASHER(METER)
€ 2.50
5
37102MB1008
ref: 5
A, AC
WASHER
37102MB1008
€ 3.00
6
37103MAH008
ref: 6
A, AC
MOUNT RUBBER
37103MAH008
€ 3.00
7
37111MF5000
ref: 7
A, AC
RUB,METER MOUNT
37111MF5000
€ 2.50
9
37121MZ0760
ref: 9
A, AC
CLAMP
€ 3.00
9
37121KV3008
ref: 9
A, AC
CLAMP
37121KV3008
€ 3.00
10
37200MAHA01
ref: 10
A, AC
SPEEDOMETER ASSY
€ 269.50
10
37200MAHA10
ref: 10
A, AC
SPEEDOMETER ASSY.
€ 269.50
11
37204MAHA10
ref: 11
A, AC
COVER METER
€ 74.50
11
37204MAH008
ref: 11
A, AC
COVER,METER
37204MAH008
€ 74.50
12
37211MAHA10
ref: 12
A, AC
SETTING PLATE
€ 33.00
12
37211MAHA01
ref: 12
A, AC
SETTING PLATE
37211MAHA01
€ 33.00
13
37212MAHA10
ref: 13
A, AC
BRACKET COMP
€ 32.00
13
37212MAH008
ref: 13
A, AC
BRACKET COMP
37212MAH008
€ 32.00
14
37220MAHA10
ref: 14
A, AC
KNOB
€ 8.50
14
37220MB4671
ref: 14
A, AC
KNOB
37220MB4671
€ 8.50
15
37225MAHA10
ref: 15
A, AC
BOLT SET(P.BOX)
€ 4.50
15
37225MM8008
ref: 15
A, AC
BOLT,PILOT BOX SE
37225MM8008
€ 4.50
16
37242MAHA10
ref: 16
A, AC
CUSHION RUBBER
€ 14.50
16
37242MM8008
ref: 16
A, AC
RUBBER,CUSHION
37242MM8008
€ 14.50
17
37600MAHA10
ref: 17
A, AC
PILOT BOX ASSY
€ 79.00
17
37600MAHA01
ref: 17
A, AC
PILOT BOX ASSY
€ 79.00
18
37619MAHA10
ref: 18
A, AC
SOCKET COMP
€ 79.50
18
37619MAH008
ref: 18
A, AC
SOCKET COMP
€ 79.50
19
44830ME5405
ref: 19
A, AC
CABLE ASSY,SPDMT
44830ME5405
€ 38.00
19
44830ME5850
ref: 19
A, AC
CABLE ASSY SPDMT.
44830ME5850
€ 38.00
19
44830ME8000
ref: 19
A, AC
CABLE,SPEEDOMETER
€ 38.00
19
44830MF5000
ref: 19
A, AC
CABLE,SPEEDOMETER
44830MF5000
€ 38.00
19
44830MK3000
ref: 19
A, AC
CABLE ASSY.,SPDMT
44830MK3000
€ 38.00
20
44831KM1000
ref: 20
A, AC
CABLE,INNER
44831KM1000
€ 7.50
20
44831MB1300
ref: 20
A, AC
CABLE,INNER
€ 7.50
20
44831ME1670
ref: 20
A, AC
CABLE,SPEDMT IN.
44831ME1670
€ 7.50
21
90158MZ0760
ref: 21
A, AC
SCREW PAN.2X6
€ 2.50
21
90158KM7911
ref: 21
A, AC
SCREW PAN 2X6
90158KM7911
€ 2.50
22
90302187000
ref: 22
A, AC
NUT,FLANGE,6MM
90302187000
€ 2.00
23
91301027000
ref: 23
A, AC
ORING,6.8X1.9
91301027000
€ 3.50
23
91306PJ4000
ref: 23
A, AC
O RING, 6.8X1.9
91306PJ4000
€ 3.50
23
91310MC7003
ref: 23
A, AC
O-RING B,6.8X1.9
91310MC7003
€ 3.50
24
93500040080A
ref: 24
A, AC
SCREW,PAN,4X8
93500040080A
€ 1.00
24
93500040081A
ref: 24
A, AC
SCREW,PAN 4X8
€ 1.00
25
93700040080B
ref: 25
A, AC
SCREW,OVAL, 4X8
93700040080B
€ 1.00
26
93700050200G
ref: 26
A, AC
SCREW,OVAL,5X20
93700050200G
€ 1.00
27
9390334320
ref: 27
A, AC
SCREW,TAPPING,4X12
9390334320
€ 1.00
28
94021050200S
ref: 28
A, AC
NUT,HEX.,CAP,5MM
94021050200S
€ 1.00
29
9410305000
ref: 29
A, AC
WASHER,PLAIN,5MM
9410305000
€ 0.50
30
9411105000
ref: 30
A, AC
WASHER,SPG.,5MM
9411105000
€ 1.00
32
37218GE1741
ref: 32
A, AC
GROMMET
37218GE1741
€ 4.50
