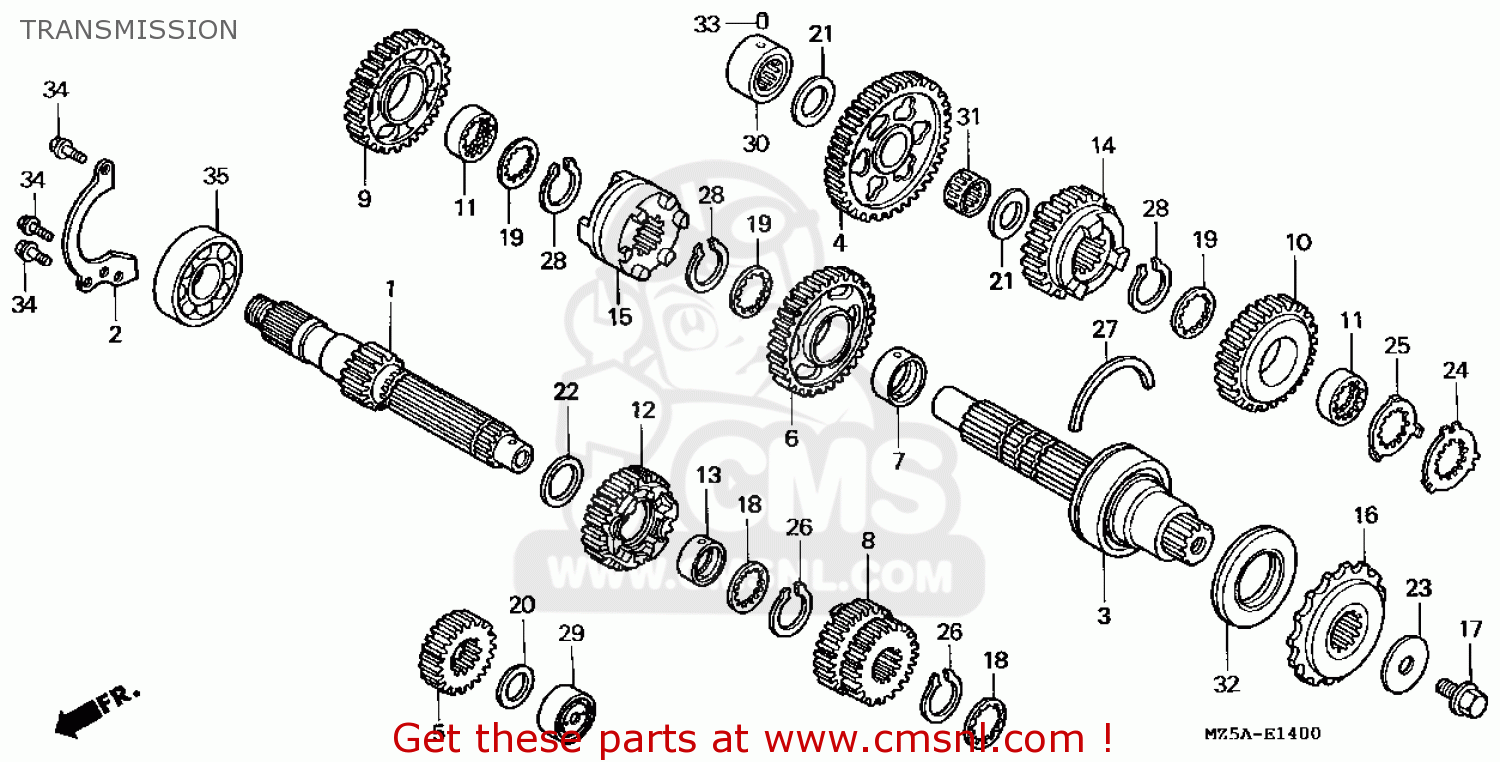

TRANSMISSION

ref

part #

description

quantity

1

23211MZ5920
ref: 1

SHAFT,MAIN

€ 270.50

2

23212ML7000
ref: 2

PLATE,BRG.SET

€ 13.00

3

23220MT4000
ref: 3

SHAFT COMP,COUNTE

€ 189.00

4

23421ML7000
ref: 4

GEAR,COUNTERSHAFT

€ 139.50

5

23431MV8900
ref: 5

GEAR,M-2

€ 56.00

6

23441MV8900
ref: 6

GEAR,C-2

€ 120.00

7

23442ML7000
ref: 7

COLLAR 28MM

€ 23.00

8

23451MZ5000
ref: 8

GEAR,M-3,M-4

€ 145.00

9

23461MV8900
ref: 9

GEAR,C-3

€ 135.50

10

23481MV8900
ref: 10

GEAR,C-4

€ 133.00

11

23482MR7000
ref: 11

COLLAR,SPLINE 28X

€ 13.50

12

23491MZ5010
ref: 12

GEAR,MAINSHAFT FI

€ 121.50

13

23495MB0000
ref: 13

COLLAR, 25X12

€ 20.00

14

23501MZ5920
ref: 14

GEAR,C-5

€ 133.00

15

23521MV8900
ref: 15

SHIFTER,C6

€ 61.50

16

23801ML7920
ref: 16

SPROCKET,DRIVE (1

€ 80.00

17

90037422003
ref: 17

BOLT,SPECIAL,10MM

€ 7.50

18

90451KY2000
ref: 18

WASHER,SPLINE,25X

€ 3.50

19

90452MR7000
ref: 19

WASHER SPLINE 28X

€ 3.00

20

90454428000
ref: 20

WASH THRUST 20MM

€ 3.50

21

90455ML7000
ref: 21

WASHER,THRUST,22M

€ 4.50

21

90456ML7000
ref: 21

WASHER A,THRUST,2

€ 2.50

21

90457ML7000
ref: 21

WASHER C,THRUST 2

€ 2.50

22

90456MA6000
ref: 22

WASHER,25MM

€ 2.50

23

90459438000
ref: 23

WASHER,10.2MM

€ 5.50

24

90463MR7000
ref: 24

WASHER,SPLINE 28M

€ 5.50

25

90464MR7000
ref: 25

WASHER LOCK,28MM

€ 5.50

26

90601107000
ref: 26

CIR CLIP,25MM

€ 2.50

27

90602MR7000
ref: 27

RING,SET,68MM

€ 8.50

28

90602MM5000
ref: 28

CIRCLIP,28MM

€ 4.00

28

90603MN4000
ref: 28

CIRCLIP,28MM

€ 4.00

29

91022MT4000
ref: 29

BRG,NDL.20X34X17.

€ 33.00

30

91023MZ5003
ref: 30

BRG,NDL 22MM

€ 37.50

31

91026MB4003
ref: 31

BRG,NDL.22X26X11

€ 26.00

32

91207MR7003
ref: 32

OIL SEAL 40X68X7.

€ 15.00

33

9430208100
ref: 33

PIN,KNOCK 8X10A

€ 2.00

34

957010601600
ref: 34

BOLT,FLANG,6X16

€ 1.00

35

961006305000
ref: 35

B/BRG RAD N/COM

€ 43.00

all assemblies
