PULSE GENERATOR

VF750C MAGNA 1995 (S) GERMANY / KPH 50P

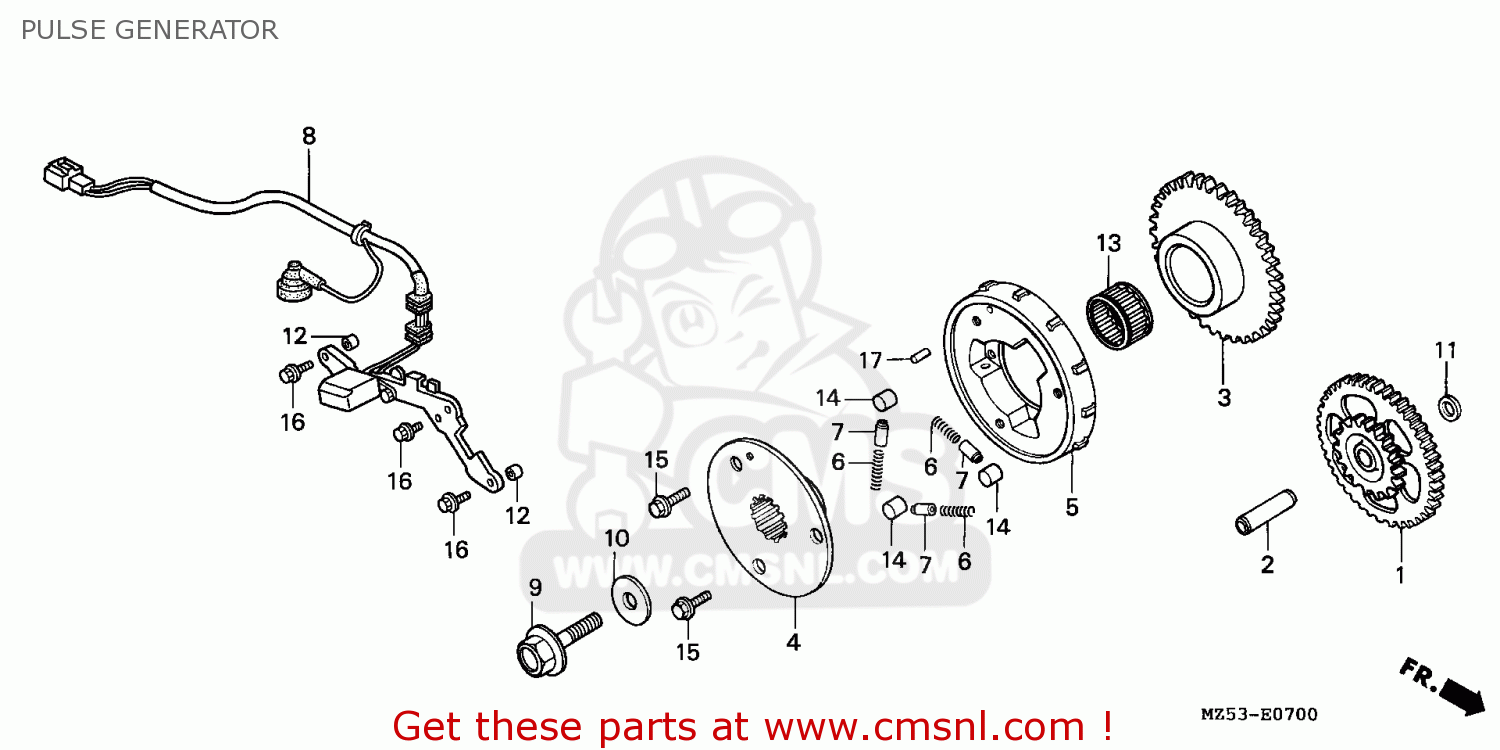

Pulse generator diagram VF750C MAGNA 1995 (S) GERMANY / KPH 50P

PULSE GENERATOR VF750C MAGNA 1995 (S) GERMANY / KPH 50P
PULSE GENERATOR VF750C MAGNA 1995 (S) GERMANY / KPH 50P
prices are in EUR
ref
part #
description
quantity
1
28101ML7920
ref: 1
GEAR,STARTER REDU
28101ML7920
€ 74.00
2
28102ML7000
ref: 2
PIN,10X36.5
28102ML7000
€ 8.50
3
28110MB0010
ref: 3
GEAR COMP.,START.
28110MB0010
€ 135.50
4
28115MZ5000
ref: 4
FLANGE,START CLUT
€ 73.50
5
28120MZ5000
ref: 5
OUTER COMP,START
28120MZ5000
€ 183.50
6
28125MT4000
ref: 6
SPRING,STARTING C
28125MT4000
€ 2.50
7
28126415000
ref: 7
CAP,START.ROLLER
28126415000
€ 13.50
8
30300MZ5000
ref: 8
PULSE GEN ASSY
€ 132.50
9
90023MA6000
ref: 9
BOLT,FLG.,12X45
90023MA6000
€ 9.50
10
90401KK9960
ref: 10
WASHER,12X30X4.5
90401KK9960
€ 5.50
11
90405ML7000
ref: 11
WASHER,18X10
90405ML7000
€ 2.50
12
90702MB0000
ref: 12
PIN, DOWEL, 8X8
90702MB0000
€ 4.00
13
91022MB0003
ref: 13
BRG,NDL.30X35X17
91022MB0003
€ 22.50
14
91101516000
ref: 14
ROLLER,
91101516000
€ 5.50
15
957010801408
ref: 15
BOLT,FLANGE,8X14
957010801408
€ 1.50
16
960010602500
ref: 16
BOLT,FLANGE,SH,6X25
960010602500
€ 1.50
17
9622060150
ref: 17
ROLLER,6X15
9622060150
€ 1.00
