F-4

CD90 1993 (P) JAPAN HA03-140

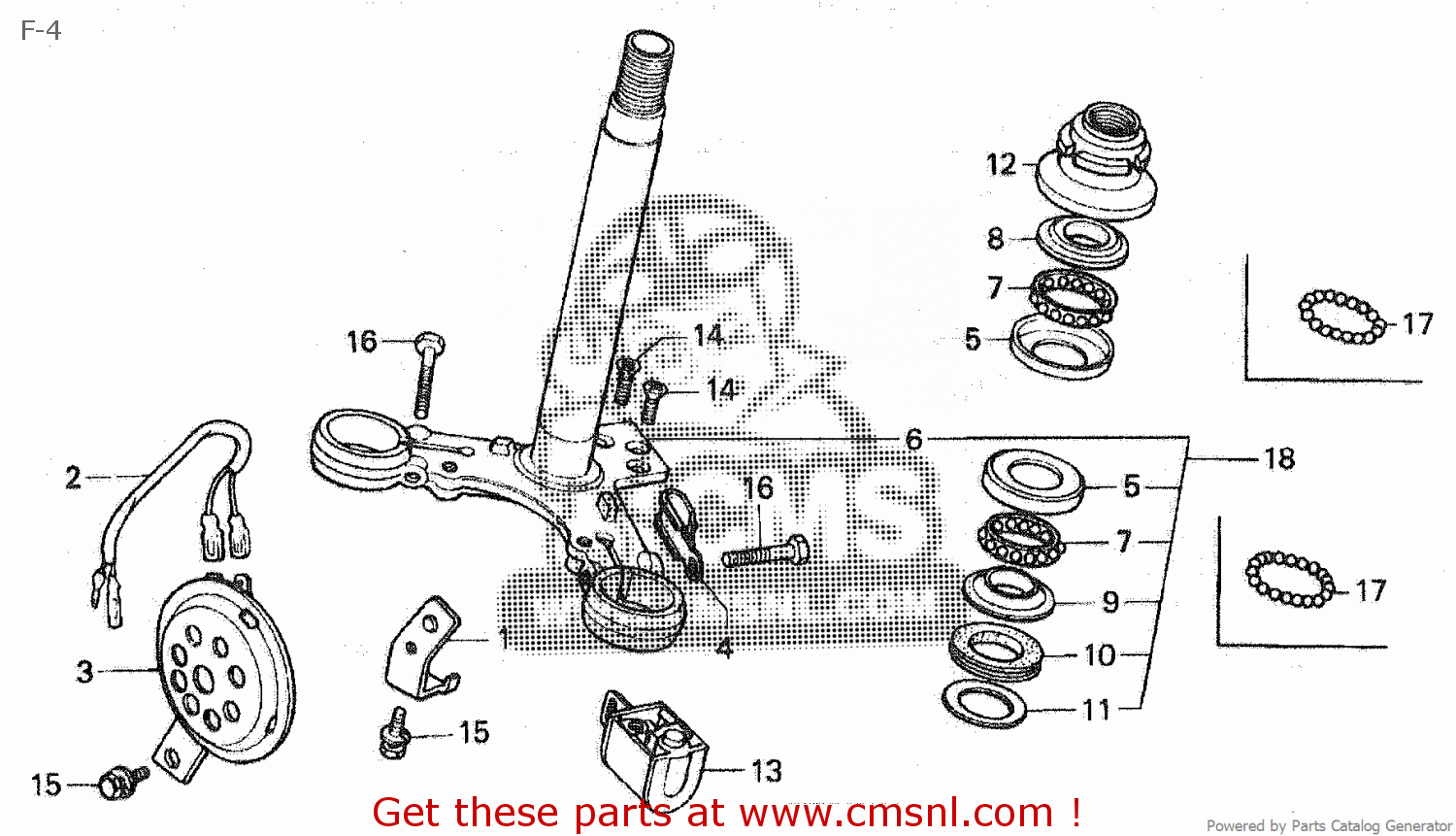

F-4 diagram CD90 1993 (P) JAPAN HA03-140

F-4 CD90 1993 (P) JAPAN HA03-140
F-4 CD90 1993 (P) JAPAN HA03-140
prices are in EUR
ref
part #
description
quantity
1
38102198000
ref: 1
STAY,HORN
38102198000
€ 7.00
2
38105115000
ref: 2
SUB CORD,HORN
38105115000
€ 12.00
3
38110198691
ref: 3
HORN COMP(HIGH)
€ 26.00
4
45465028000
ref: 4
CLIP, WIRE
45465028000
€ 8.50
5
50301041010
ref: 5
RACE,STRG.BALL
50301041010
€ 7.00
6
53200028000ZG
ref: 6
STEM COMP.,*NH-1*
53200028000ZG
€ 175.00
7
53210GS9003
ref: 7
BALL ASSY.,STEERI
53210GS9003
€ 13.00
8
53211028010
ref: 8
RACE,STRG.TOP CON
53211028010
€ 6.50
9
53212030010
ref: 9
RACE STRG.BOTTOM
53212030010
€ 6.50
10
53214001010
ref: 10
DUST-SEAL
53214001010
€ 2.00
11
53215001000
ref: 11
WASHER, DUSTSEAL
53215001000
€ 2.00
12
53220028000
ref: 12
THREAD
53220028000
€ 9.50
13
53600086007
ref: 13
LOCK,STRG.HANDLE
53600086007
€ 26.00
14
90164028000
ref: 14
SCREW, CROSS 6X12
90164028000
€ 2.00
16
953010803200
ref: 16
BOLT,HEX.,8X32
953010803200
€ 1.50
