LEFT REAR COVER/WATER PUM P

CB1300A SUPER FOUR 2005 (5) ENGLAND MKH 3E

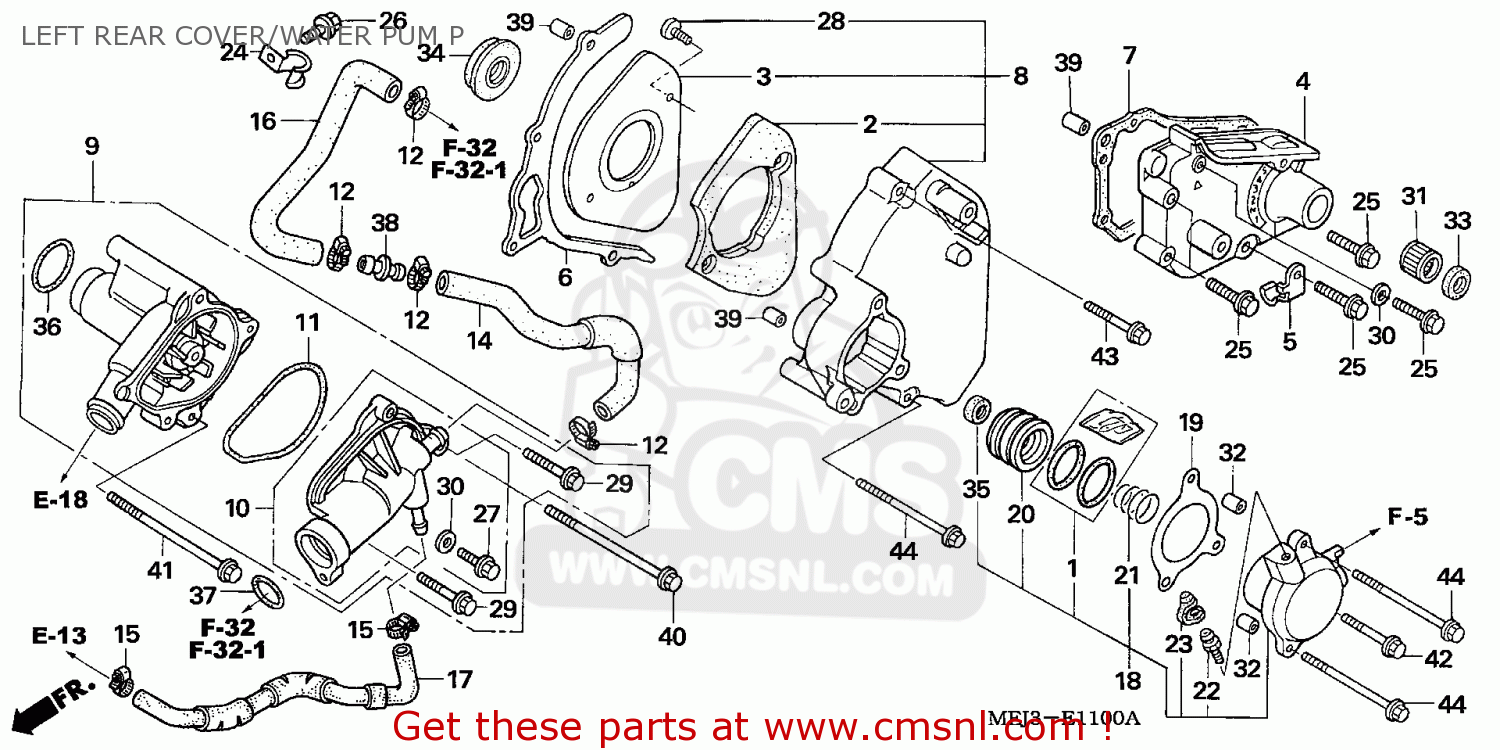

Left rear cover/water pum p diagram CB1300A SUPER FOUR 2005 (5) ENGLAND MKH 3E

LEFT REAR COVER/WATER PUM P CB1300A SUPER FOUR 2005 (5) ENGLAND MKH 3E
LEFT REAR COVER/WATER PUM P CB1300A SUPER FOUR 2005 (5) ENGLAND MKH 3E
prices are in EUR
ref
part #
description
quantity
1
04121MEJ305
ref: 1
O-RING SET
04121MEJ305
€ 7.00
2
11352MZ1000
ref: 2
RUBBER,L REAR COV
11352MZ1000
€ 17.00
3
11353MZ1000
ref: 3
PLATE,L REAR COVE
11353MZ1000
€ 14.50
4
11360MAZ000
ref: 4
HOLDER COMP,L SID
€ 130.50
5
11364MAZ000
ref: 5
CLIP,RESERVE TANK
€ 5.00
6
11365MAZ000
ref: 6
PLATE,DRIVE CHAIN
€ 18.00
7
11394MAZ000
ref: 7
GASKET,L SIDE HOL (NAS)
11394MAZ000
€ 9.50
8
11650MAZ000
ref: 8
COVER ASSY,CRANKC
€ 182.50
9
19200MEJ306
ref: 9
PUMP ASSY,WATER
19200MEJ306
€ 308.00
10
19220MEJ306
ref: 10
COVER,WATER PUMP
19220MEJ306
€ 86.50
11
19226MM5003
ref: 11
GASKET,WATER PUMP
19226MM5003
€ 4.50
12
19504KY1003
ref: 12
CLAMP,WATER HOSE,
19504KY1003
€ 7.50
14
19508MEJ000
ref: 14
HOSE SET,BYPASS A
19508MEJ000
€ 20.50
15
19507MAT000
ref: 15
CLAMP,RADIATOR HO
19507MAT000
€ 10.00
16
19507MEJ000
ref: 16
HOSE BYPASS B
19507MEJ000
€ 15.00
17
19530MEJ640
ref: 17
HOSE C,WATER
19530MEJ640
€ 29.50
18
22860MEJ003
ref: 18
SLAVE CYLINDER AS
22860MEJ003
€ 102.00
19
22862MW7650
ref: 19
GASKET,SLAVE CYLI (NAS)
22862MW7650
€ 7.50
20
22863MEJ003
ref: 20
PISTON,SLAVE CYLI
22863MEJ003
€ 27.00
21
22864MEJ003
ref: 21
SPRING,SLAVE CYLI
22864MEJ003
€ 9.00
22
22866MF2711
ref: 22
SCREW,BLEEDER
22866MF2711
€ 6.50
23
43353461771
ref: 23
CAP,BLEEDER
43353461771
€ 5.00
24
50224MEJ000
ref: 24
CLAMP,WATER HOSE
€ 5.50
25
90004GHB710
ref: 25
BOLT,FLANGE,NSHF,
90004GHB710
€ 2.00
26
90006GHB620
ref: 26
BOLT,FLANGE,NSHF,
90006GHB620
€ 2.50
28
90118MR1000
ref: 28
SCREW,PAN,6X14
90118MR1000
€ 3.00
29
90121MV9670
ref: 29
BOLT,FLANGE,6X25
€ 3.00
30
90463ML7000
ref: 30
WASHER,SEALING,6.
90463ML7000
€ 5.50
31
91002459773
ref: 31
NEEDLE,BRG
91002459773
€ 15.00
32
91103429000
ref: 32
PIN,DOWEL,8X10
91103429000
€ 4.50
33
91204KE8003
ref: 33
OIL SEAL,13X22X5
91204KE8003
€ 5.50
34
91204MG8003
ref: 34
OIL SEAL,8X25X7
91204MG8003
€ 5.00
35
91209MB0003
ref: 35
OIL SEAL,8X18X5
91209MB0003
€ 4.50
36
91302MB0013
ref: 36
O-RING 32.95X2.62
91302MB0013
€ 4.50
37
91312KM9003
ref: 37
O RING,24X3
91312KM9003
€ 4.00
38
91463MEJ000
ref: 38
JOINT,HOSE
91463MEJ000
€ 12.00
40
957010610000
ref: 40
BOLT,FLANGE,6X100
957010610000
€ 2.50
41
958010608500
ref: 41
BOLT,FLANGE,6X85
958010608500
€ 2.00
42
960010602500
ref: 42
BOLT,FLANGE,SH,6X25
960010602500
€ 1.50
43
960010604500
ref: 43
BOLT,FLANGE,6X45
960010604500
€ 2.00
44
960010607500
ref: 44
BOLT,FLANGE,6X75
960010607500
€ 1.50
