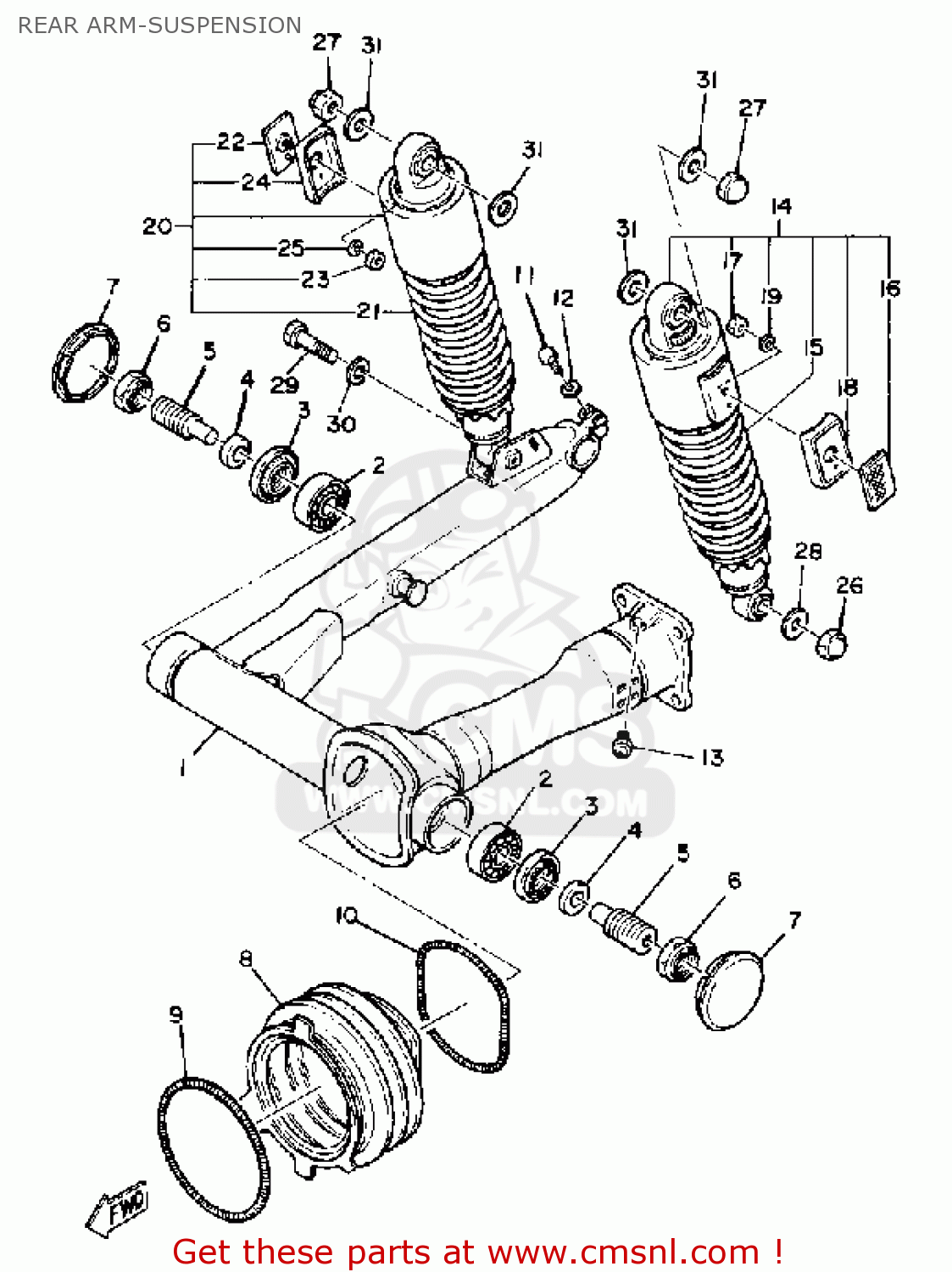

REAR ARM-SUSPENSION

ref

Teil #

Beschreibung

Anzahl

1

3H3221100098
ref: 1
YAMAHA BLACK

REAR ARM COMP.

€ 332.50

2

9333200010
ref: 2

BRG,CYL-CAL ROLLER 74G KY

€ 39.00

3

9310225017
ref: 3

OIL SEAL (25X40X5-101)

€ 5.50

4

9038717543
ref: 4

COLLAR (1J7)

€ 5.50

5

1J72214100
ref: 5

SHAFT, PIVOT

€ 25.50

6

1J72214300
ref: 6

NUT, PIVOT SHAFT

€ 9.50

7

2H72219X00
ref: 7

COVER

€ 17.50

8

2H72218900
ref: 8

BOOT, RUBBER

€ 67.50

9

9050607136
ref: 9

SPRING, TENSION (1J7)

€ 6.50

10

9050607135
ref: 10

SPRING, TENSION (1J7)

€ 8.00

11

9730308035
ref: 11

BOLT

€ 3.00

12

9290608100
ref: 12

WASHER,SPRING

€ 1.00

13

9370006M03
ref: 13

NIPPLE, GREASE(6A1)

€ 6.00

14

3J62221000
ref: 14

SHOCK ABSORBER ASSEMBLY REAR (LH)

€ 290.00

15

3J622212A0
ref: 15
OPTIONAL PARTS

SPRING, HEAVY DUTY

€ 78.00

16

3G18513001
ref: 16

REAR REFLECTOR ASSY

€ 24.50

17

9538005600
ref: 17

NUT, HEXAGON (663)

€ 1.00

18

3G18513700
ref: 18

BASE, REFLECTOR REAR

€ 3.00

19

9299005200
ref: 19

YBS66-5 WASHER, PLAIN

€ 1.00

20

3J62221010
ref: 20

SHOCK ABSORBER ASSEMBLY, REAR (RH)

€ 312.00

21

3J62221200
ref: 21

SPRING

€ 78.00

22

3G18513001
ref: 22

REAR REFLECTOR ASSY

€ 24.50

23

9538005600
ref: 23

NUT, HEXAGON (663)

€ 1.00

24

3G18513700
ref: 24

BASE, REFLECTOR REAR

€ 3.00

25

9299005200
ref: 25

YBS66-5 WASHER, PLAIN

€ 1.00

26

9017610013
ref: 26

NUT, CAP

€ 4.50

27

9017610009
ref: 27

NUT, CAP (371)

€ 4.50

28

9020110696
ref: 28

WASHER, PLATE (2J2)

€ 3.50

29

9010610030
ref: 29

BOLT (1J7)

€ 5.00

30

9299010100
ref: 30

YBS67-10 WASHER, SPRING

€ 1.50

31

90201100A1
ref: 31

WASHER, PLATE (3J6)

€ 3.50
