A.C. GENERATOR

XS1100S 1980 (A) USA

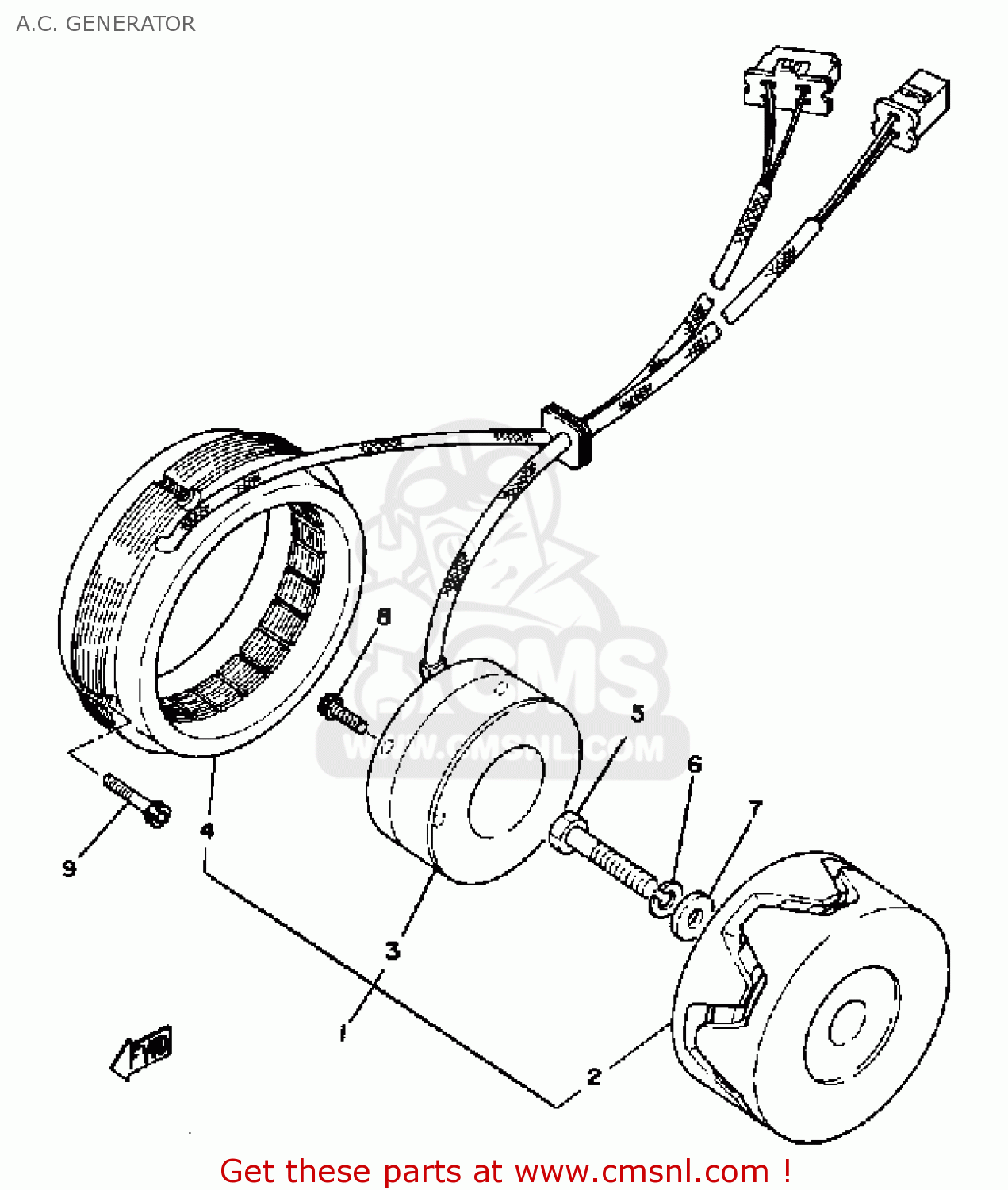

A.c. generator Schaubild XS1100S 1980 (A) USA

A.C. GENERATOR XS1100S 1980 (A) USA
A.C. GENERATOR XS1100S 1980 (A) USA
Preise sind in EUR
ref
Teil #
Beschreibung
Anzahl
1
2H78160010
ref: 1
A.C. GENERATOR ASSY
€ 844.00
2
2H78165010
ref: 2
ROTOR ASSY
2H78165010
€ 250.00
3
2H78166010
ref: 3
FIELD COIL ASSY
2H78166010
€ 250.00
4
2H78161010
ref: 4
STATOR ASSY
2H78161010
€ 250.00
5
9010110188
ref: 5
BOLT (341)
9010110188
€ 12.50
6
9299010100
ref: 6
YBS67-10 WASHER, SPRING
9299010100
€ 1.50
7
90201102J5
ref: 7
WASHER, PLATE(52H)
90201102J5
€ 9.50
8
9131106016
ref: 8
BOLT (2H7)
€ 2.00
9
9011006138
ref: 9
BOLT, HEXAGON SOCKET HEAD(1VJ)
9011006138
€ 3.00
