FRONT FORK

TDM850 1996 4TX1 NORWAY 264TX-300E1

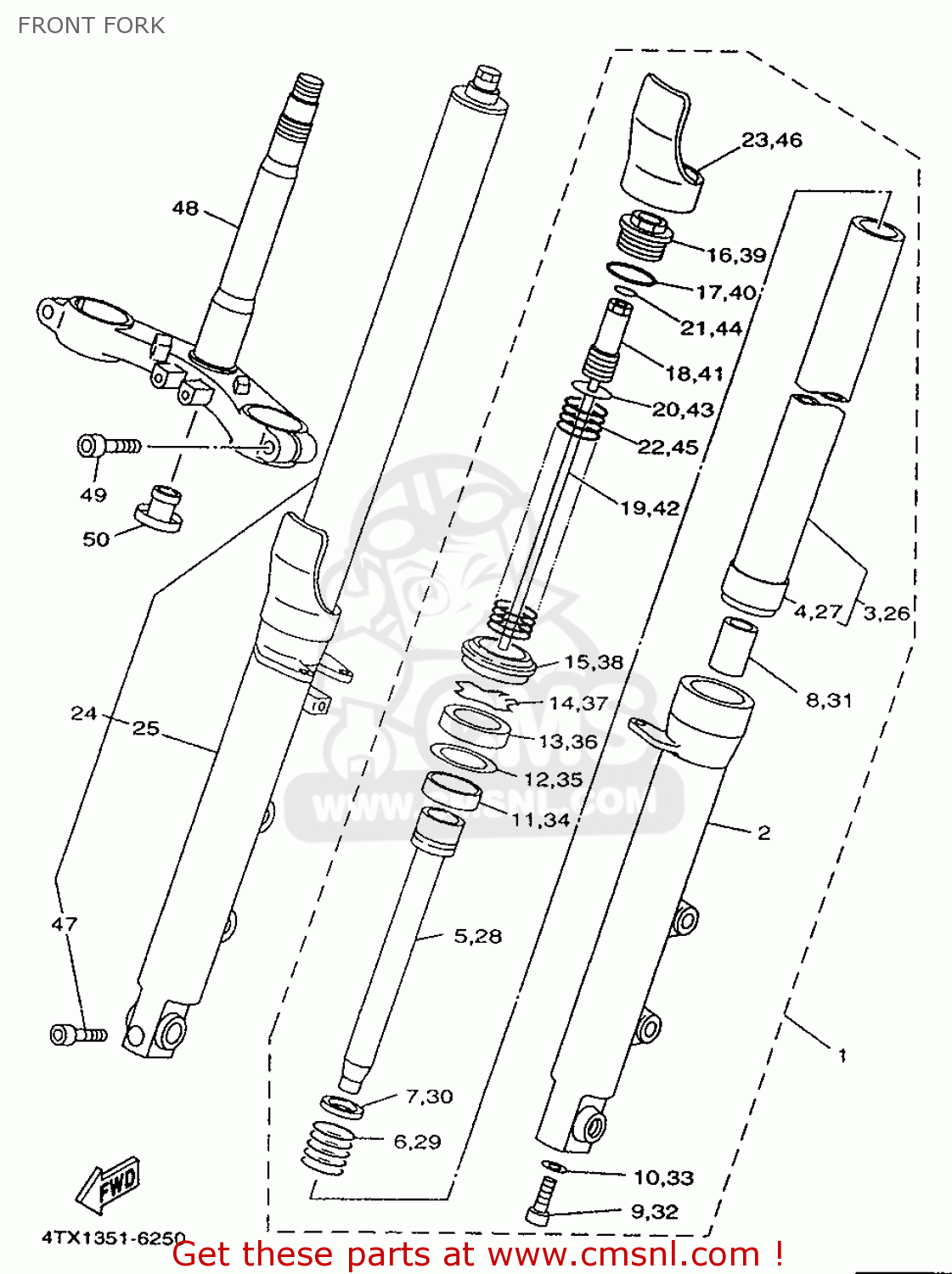

Front fork Schaubild TDM850 1996 4TX1 NORWAY 264TX-300E1

FRONT FORK TDM850 1996 4TX1 NORWAY 264TX-300E1
FRONT FORK TDM850 1996 4TX1 NORWAY 264TX-300E1
Preise sind in EUR
ref
Teil #
Beschreibung
Anzahl
01
4TX2310200
ref: 01
FRONT FORK ASSY (L.H)
€ 286.00
02
4TX2312600
ref: 02
TUBE, OUTER (LEFT)
€ 225.50
03
4TX2311000
ref: 03
INNER TUBE COMP.1
€ 215.00
04
4TX2313500
ref: 04
METAL, SLIDE 2
€ 16.50
05
4TX2317000
ref: 05
CYLINDER COMP., FRONT FORK
4TX2317000
€ 147.50
06
4TX2315100
ref: 06
SPRING, REBOUND
€ 9.00
07
4TX2315700
ref: 07
RING, PISTON
4TX2315700
€ 3.50
08
4TX2317300
ref: 08
SPINDLE, TAPER
€ 40.00
09
9131710025
ref: 09
BOLT, SOCKET
9131710025
€ 2.50
10
9043010171
ref: 10
GASKET (5R6) (NAS)
9043010171
€ 4.00
11
4TX2312500
ref: 11
METAL, SLIDE 1
€ 17.50
12
4TX2311500
ref: 12
GUIDE, COVER UPPER
4TX2311500
€ 6.50
13
4TX2314500
ref: 13
OIL SEAL
4TX2314500
€ 10.00
14
4TX2315600
ref: 14
CLIP, OIL SEAL
4TX2315600
€ 4.00
15
4TX2314400
ref: 15
SEAL, DUST
4TX2314400
€ 16.50
16
4TX2311H00
ref: 16
FORK, BOLT
€ 45.00
17
9321034633
ref: 17
O-RING (21A)
9321034633
€ 9.50
18
4TX2311G00
ref: 18
BOLT, SPRINGADJUST
€ 44.00
19
4TX2319K00
ref: 19
PLUNGER KIT
4TX2319K00
€ 30.00
20
4TX2331L00
ref: 20
SEAT, SPRING UPPER
€ 2.00
21
9321018N01
ref: 21
O-RING(3VD)
9321018N01
€ 2.00
22
4TX2314100
ref: 22
SPRING, FRONT FORK
€ 54.50
23
4TX2331G00
ref: 23
COVER
4TX2331G00
€ 14.00
24
4TX2310300
ref: 24
FRONT FORK ASSY (R.H)
€ 491.00
25
4TX2313600
ref: 25
TUBE, OUTER (RIGHT)
€ 237.00
26
4TX2311000
ref: 26
INNER TUBE COMP.1
€ 215.00
27
4TX2313500
ref: 27
METAL, SLIDE 2
€ 16.50
28
4TX2317000
ref: 28
CYLINDER COMP., FRONT FORK
4TX2317000
€ 147.50
29
4TX2315100
ref: 29
SPRING, REBOUND
€ 9.00
30
4TX2315700
ref: 30
RING, PISTON
4TX2315700
€ 3.50
31
4TX2317300
ref: 31
SPINDLE, TAPER
€ 40.00
32
9131710025
ref: 32
BOLT, SOCKET
9131710025
€ 2.50
33
9043010171
ref: 33
GASKET (5R6) (NAS)
9043010171
€ 4.00
34
4TX2312500
ref: 34
METAL, SLIDE 1
€ 17.50
35
4TX2311500
ref: 35
GUIDE, COVER UPPER
4TX2311500
€ 6.50
36
4TX2314500
ref: 36
OIL SEAL
4TX2314500
€ 10.00
37
4TX2315600
ref: 37
CLIP, OIL SEAL
4TX2315600
€ 4.00
38
4TX2314400
ref: 38
SEAL, DUST
4TX2314400
€ 16.50
39
4TX2311H00
ref: 39
FORK, BOLT
€ 45.00
40
9321034633
ref: 40
O-RING (21A)
9321034633
€ 9.50
41
4TX2311G00
ref: 41
BOLT, SPRINGADJUST
€ 44.00
42
4TX2319K00
ref: 42
PLUNGER KIT
4TX2319K00
€ 30.00
43
4TX2331L00
ref: 43
SEAT, SPRING UPPER
€ 2.00
44
9321018N01
ref: 44
O-RING(3VD)
9321018N01
€ 2.00
45
4TX2314100
ref: 45
SPRING, FRONT FORK
€ 54.50
46
4TX2331G00
ref: 46
COVER
4TX2331G00
€ 14.00
47
9131708040
ref: 47
BOLT,SOCKET
9131708040
€ 4.00
48
4TX2334000
ref: 48
UNDER BRACKET COMP.
€ 308.50
49
9131710030
ref: 49
BOLT, SOCKET
9131710030
€ 3.50
50
4KM2312301
ref: 50
COVER, LOWER 1
4KM2312301
€ 18.00
