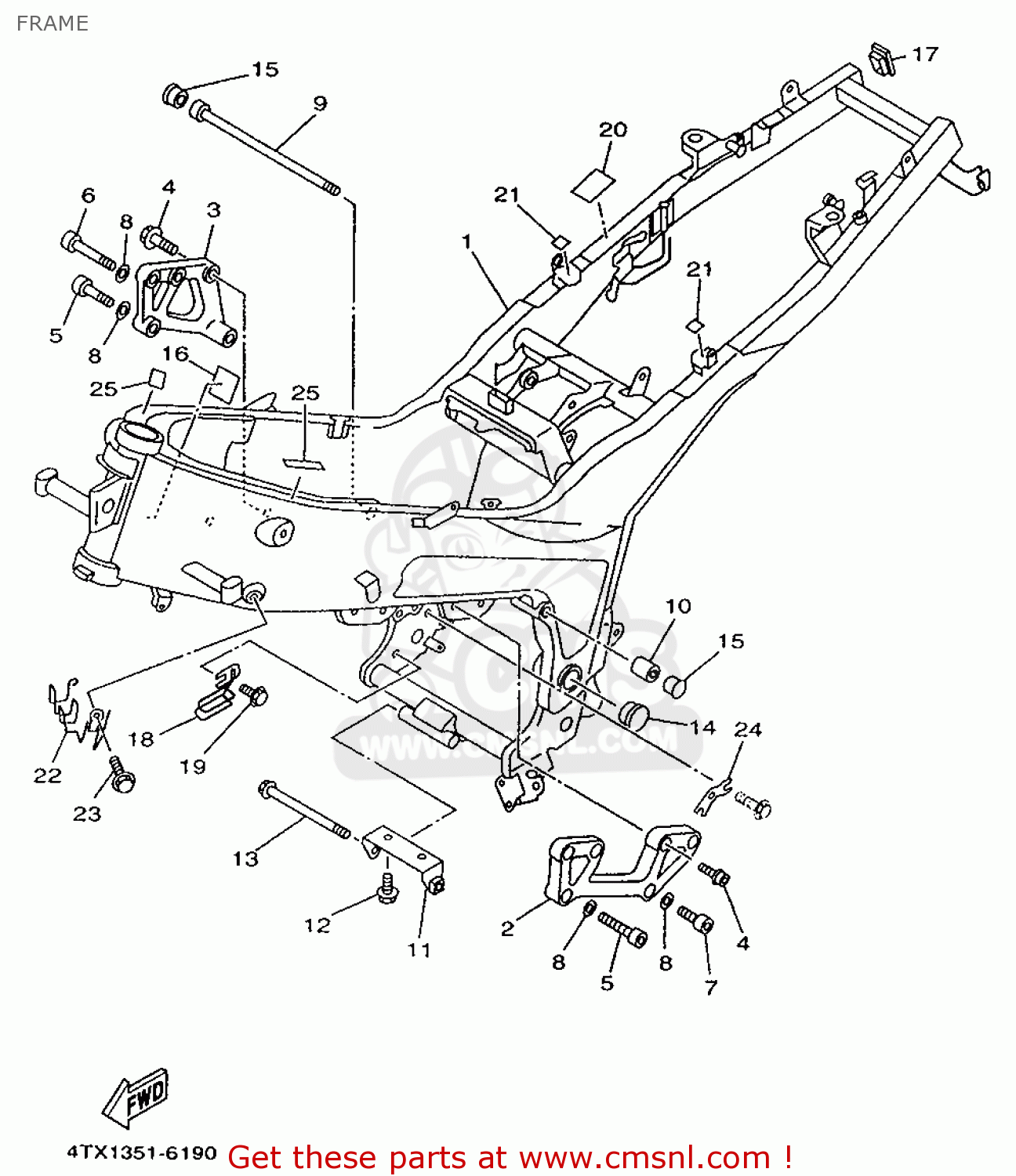

FRAME

ref

Teil #

Beschreibung

Anzahl

01

4TX211100035
ref: 01
SILVER

FRAME COMP.

€ 3,610.00

02

3VD214111035
ref: 02
SILVER

BRACKET, ENGINE 1

€ 391.00

03

4TX214190035
ref: 03
SILVER

BRACKET, ENGINE 2

€ 397.00

04

90109083G1
ref: 04

BOLT(4EB)

€ 4.00

05

9131410045
ref: 05

BOLT, SOCKET

€ 3.00

06

9131410060
ref: 06

BOLT,SOCKET

€ 5.50

07

9131410025
ref: 07

BOLT,SOCKET

€ 4.50

08

90201100F7
ref: 08

WASHER (7A9)

€ 3.50

09

9011010229
ref: 09

BOLT, HEXAGON SOCKET HEAD(3VD)

€ 14.50

10

9017910377
ref: 10

NUT (11H)

€ 8.50

11

3VD2148900
ref: 11

BRACKET, ENGINE LOWER

€ 31.00

13

9010510328
ref: 13

BOLT, WASHER BASED(37F)

€ 7.50

14

3SX2135F00
ref: 14

COVER

€ 10.00

15

3LD2143A00
ref: 15

CAP

€ 5.50

16

11H2174700
ref: 16

DAMPER

€ 3.00

17

3VD2143A00
ref: 17

CAP

€ 5.00

18

3VD2116400
ref: 18

HOLDER, WIRE

€ 11.00

19

9581706010
ref: 19

BOLT, FLANGE

€ 0.50

20

5H08235YM0
ref: 20

DAMPER

€ 1.50

21

4TX2139U00
ref: 21

DAMPER 2

€ 0.50

22

4TX2116100
ref: 22

HOLDER, CABLE

€ 44.00

23

9581706012
ref: 23

BOLT, FLANGE

€ 0.50

24

4TX2148U00
ref: 24

BRACKET 1

€ 4.50

25

4KB2126800
ref: 25

SEAL

€ 6.00

alle Baugruppen
