FRONT CALIPER

AN400 BURGMAN 2007 (K7) USA (E03)

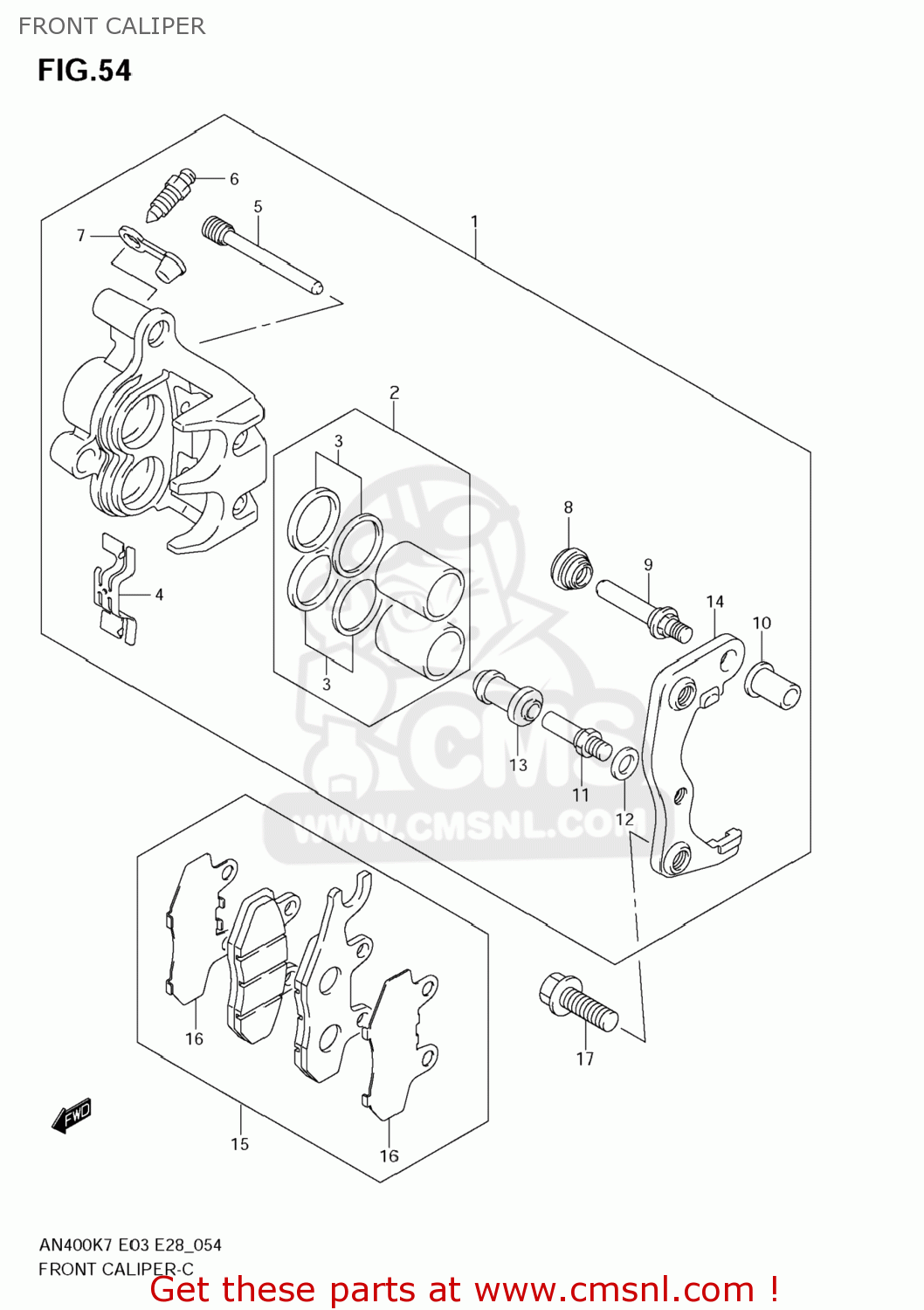

Front caliper Schaubild AN400 BURGMAN 2007 (K7) USA (E03)

FRONT CALIPER AN400 BURGMAN 2007 (K7) USA (E03)

Preise sind in EUR

ref

Teil #

Beschreibung

Anzahl

1-1

5910005H00999
ref: 1-1

CALIPER ASSY,FR,R

€ 522.00

1-2

5930005H00999
ref: 1-2

CALIPER ASSY,FR,L

€ 522.00

2

5930021810
ref: 2

PISTON SET

€ 66.00

3

5930021860
ref: 3

SEAL SET,PISTON

€ 30.00

4

6911531D10
ref: 4

SPRING,PAD

€ 9.50

5

5934514600
ref: 5

PIN,HANGER

€ 8.50

6

5912101A00
ref: 6

BLEEDER

€ 6.50

7

5912201A00
ref: 7

CAP,BLEEDER

€ 4.00

8

5930314500
ref: 8

BOOT

€ 4.00

9

5938700B20
ref: 9

PIN,SLIDE

€ 11.00

10

5938800B20
ref: 10

NUT

€ 9.00

11

5938213A00
ref: 11

BOLT,PIN

€ 5.50

12

5931413A00
ref: 12

WASHER,WAVE

€ 1.50

13

5938613A00
ref: 13

BOOT

€ 5.00

14-1

6915131D00
ref: 14-1

BRACKET

€ 56.50

14-2

5935105H00
ref: 14-2

BRACKET,L

€ 38.00

15-1

5910005820A
ref: 15-1

BRAKESHOE SET

€ 47.00

15-2

5910005830A
ref: 15-2

BRAKESHOE SET

€ 47.00

16

6913231D00
ref: 16

SHIM

€ 7.00

17

0910310372
ref: 17

BOLT(10X25)

€ 4.00
