CAMSHAFT/VALVE

AN400 BURGMAN 2007 (K7) USA (E03)

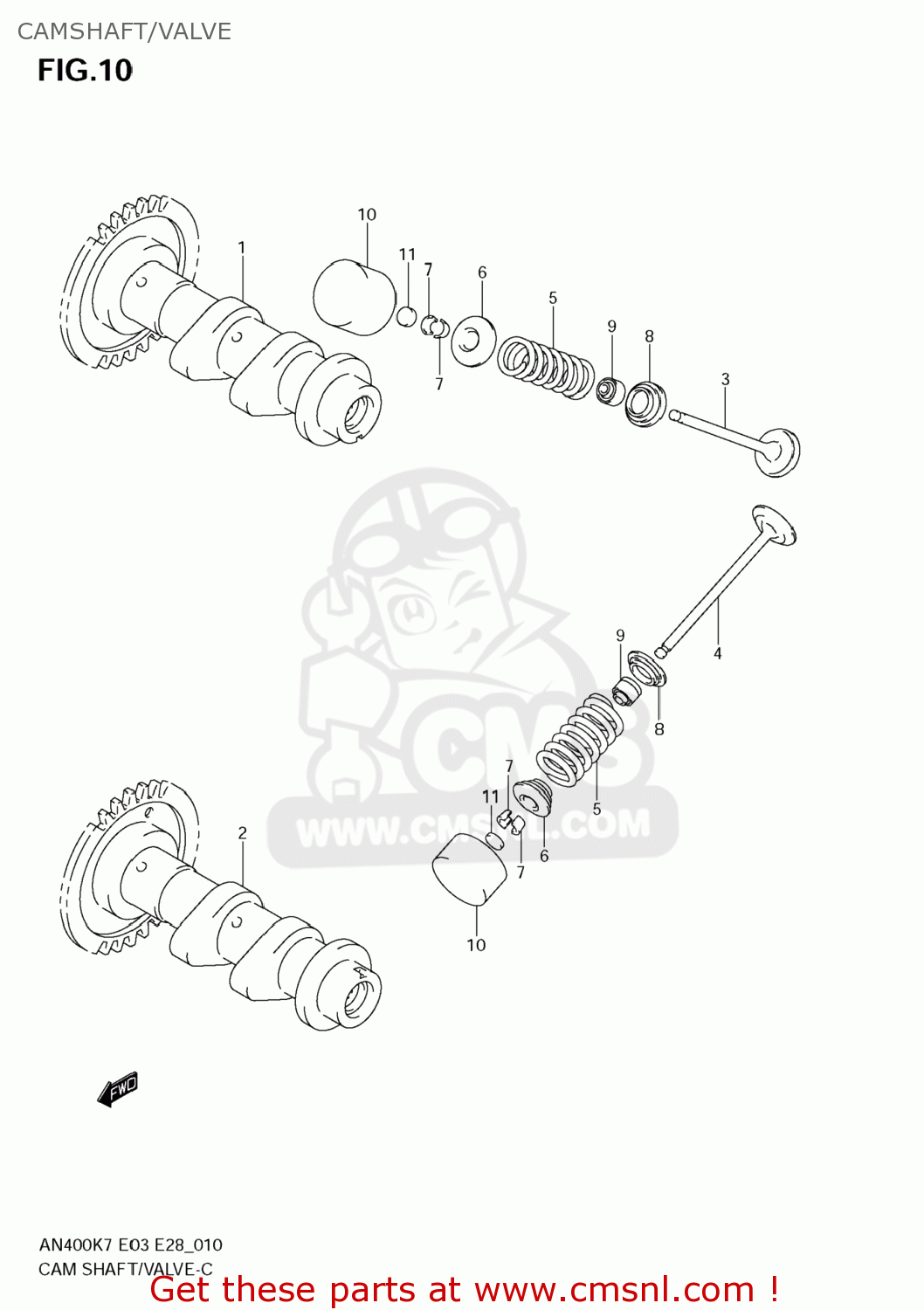

Camshaft/valve Schaubild AN400 BURGMAN 2007 (K7) USA (E03)

CAMSHAFT/VALVE AN400 BURGMAN 2007 (K7) USA (E03)
CAMSHAFT/VALVE AN400 BURGMAN 2007 (K7) USA (E03)
Preise sind in EUR
ref
Teil #
Beschreibung
Anzahl
1
1271005H00
ref: 1
CAMSHAFT,INTAKE
1271005H00
€ 256.50
2
1272005H00
ref: 2
CAMSHAFT,EXHAUST
€ 471.50
3
1291105H00
ref: 3
VALVE,INTAKE
1291105H00
€ 21.50
4
1291205H00
ref: 4
VALVE,EXHAUST
1291205H00
€ 33.50
5
1292105H00
ref: 5
SPRING,VALVE
1292105H00
€ 11.50
6
1293110G00
ref: 6
RETAINER,VALVE SPRING
€ 6.00
7
1293232C00
ref: 7
COTTER VALVE
1293232C00
€ 1.50
8
1293339E00
ref: 8
SEAT,VALVE SPRING
€ 5.00
9
0928904002
ref: 9
SEAL,OIL(4.5X10X8)
0928904002
€ 5.50
10
1289117E00
ref: 10
TAPPET
1289117E00
€ 51.00
11-1
1289205C00120
ref: 11-1
SHIM,TAPPET
€ 6.50
11-10
1289205C00165
ref: 11-10
SHIM,TAPPET
1289205C00165
€ 6.50
11-11
1289205C00170
ref: 11-11
SHIM,TAPPET
1289205C00170
€ 6.50
11-12
1289205C00175
ref: 11-12
SHIM,TAPPET
1289205C00175
€ 6.50
11-13
1289205C00180
ref: 11-13
SHIM,TAPPET
1289205C00180
€ 6.50
11-14
1289205C00185
ref: 11-14
SHIM,TAPPET
1289205C00185
€ 6.50
11-15
1289205C00190
ref: 11-15
SHIM,TAPPET
1289205C00190
€ 6.50
11-16
1289205C00195
ref: 11-16
SHIM,TAPPET
€ 6.50
11-17
1289205C00200
ref: 11-17
SHIM,TAPPET
1289205C00200
€ 6.50
11-18
1289205C00205
ref: 11-18
SHIM,TAPPET
€ 6.50
11-19
1289205C00210
ref: 11-19
SHIM,TAPPET
€ 6.50
11-2
1289205C00125
ref: 11-2
SHIM,TAPPET
€ 6.50
11-20
1289205C00215
ref: 11-20
SHIM,TAPPET
1289205C00215
€ 6.50
11-21
1289205C00220
ref: 11-21
SHIM,TAPPET
€ 6.50
11-3
1289205C00130
ref: 11-3
SHIM,TAPPET
€ 6.50
11-4
1289205C00135
ref: 11-4
SHIM,TAPPET
€ 6.50
11-5
1289205C00140
ref: 11-5
SHIM,TAPPET
1289205C00140
€ 6.50
11-6
1289205C00145
ref: 11-6
SHIM,TAPPET
1289205C00145
€ 6.50
11-7
1289205C00150
ref: 11-7
SHIM,TAPPET
1289205C00150
€ 6.50
11-8
1289205C00155
ref: 11-8
SHIM,TAPPET
1289205C00155
€ 6.50
11-9
1289205C00160
ref: 11-9
SHIM,TAPPET
1289205C00160
€ 6.50
12
1280005830
ref: 12
SHIM SET,TAPPET
1280005830
€ 350.50
12
1280005830
ref: 12
SHIM SET,TAPPET
1280005830
€ 350.50
12
1280005830
ref: 12
SHIM SET,TAPPET
1280005830
€ 350.50
13
9900069491
ref: 13
CASE,TAPPET SHIM
9900069491
€ 89.00
