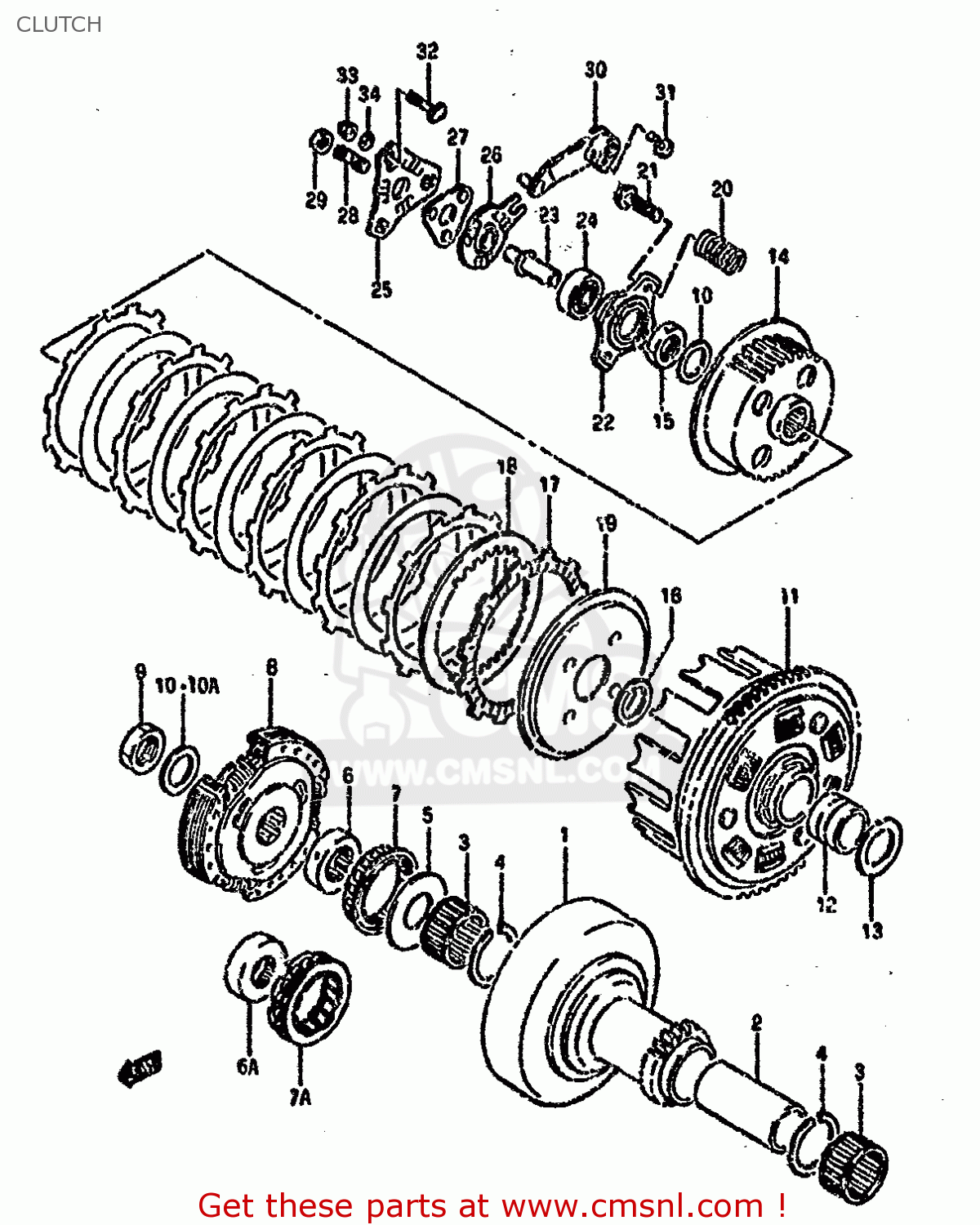

CLUTCH

ref

Teil #

Beschreibung

Anzahl

1-1

2111019B00
ref: 1-1
MODEL H

GEAR COMP,PRIMARY DRIVE

€ 142.50

1-2

2111019B11
ref: 1-2
MODEL J/K/L/M/N/P/R/

GEAR COMP,PRIMARY DRIVE

€ 126.50

2

0918022059
ref: 2
MODEL H

SPACER

€ 0.00

3

0926328023
ref: 3
MODEL H

ROLLER BEARING (28X32X1

€ 9.00

4

0938133002
ref: 4
MODEL H

CIRCLIP

€ 2.00

5

0916022036
ref: 5
MODEL H

WASHER (22X48X2.5)

€ 5.00

6

2163118A00
ref: 6
MODEL H

RACE,ONE WAY CLUTCH INNER

€ 13.00

6A

2163119B10
ref: 6A
MODEL J/K/L/M/N/P/R/

RACE,ONE-WAY CLUTCH IN

€ 22.00

7

2127301401
ref: 7
MODEL H

OVER RUN ONE WAY ASSY,NO.2

€ 112.00

7A

2127319B10
ref: 7A
MODEL J/K/L/M/N/P/R/

CLUTCH ASSY,ONE WAY

€ 97.00

8-1

2150019B00
ref: 8-1
MODEL H

SHOE,CLUTCH ASSEMBLY (NAS)

€ 329.00

8-2

2150019B11
ref: 8-2
MODEL J/K/L/M/N/P/R

SHOE,CLUTCH ASSEMBLY (NAS)

€ 182.00

8-3

2150019B21
ref: 8-3
MODEL S

CLUTCH ASSY,SHOE (NAS)

€ 182.00

8-4

2150019B21
ref: 8-4
E17

CLUTCH ASSY,SHOE (NAS)

€ 182.00

9-1

0914020013
ref: 9-1
MODEL H

NUT

€ 4.00

9-2

0914018012
ref: 9-2
MODEL J/K/L/M/N/P/R/

NUT

€ 6.50

10-1

0916420007
ref: 10-1
MODEL H

WASHER

€ 3.50

10-2

0916420007
ref: 10-2
MODEL J/K/L/M/N/P/R/

WASHER

€ 3.50

10A

0916418001
ref: 10A
MODEL J/K/L/M/N/P/R/

WASHER

€ 3.00

11

2120019B03
ref: 11
NT:60,-21200-19B02

GEAR ASSY,PRI DRIVEN

€ 223.00

12

0918022035
ref: 12

SPACER(22X28X23)

€ 15.50

13

0821122361
ref: 13

WASHER,THRUST

€ 3.50

14

2141024500
ref: 14

HUB,CLUTCH SLEEVE

€ 65.50

15

0914020002
ref: 15

NUT (20MM)

€ 3.00

16

0821120323
ref: 16

WASHER

€ 2.50

17-1

2144141B02
ref: 17-1
MODEL H/J/K/L/M/N/P

PLATE,CLUTCH DRIVE (NAS)

€ 10.50

17-2

2144122A01
ref: 17-2
MODEL R/S

PLATE,CLUTCH DRIVE (NAS)

€ 10.50

18-1

2145111900
ref: 18-1
MODEL H/J/K/L/M/N/P

PLATE,CLUTCH DRIVEN (NAS)

€ 4.50

18-2

2145101B40
ref: 18-2
MODEL R/S

PLATE,DRIVEN(T:1.4)

€ 4.50

19

2146224501
ref: 19

DISC,CLUTCH PRESSURE

€ 35.50

20

0944019017
ref: 20

SPRING

€ 4.50

21-1

0151706207
ref: 21-1
MODEL H/J/K/L/M/N/P

BOLT 6X20

€ 2.00

21-2

0155006203
ref: 21-2
MODEL R/S

BOLT

€ 1.50

22

2146524500
ref: 22

PLATE,RELEASE

€ 10.00

23

2312119B00
ref: 23

PIECE,CLUTCH PUSH

€ 16.00

24-1

0811060010
ref: 24-1
MODEL H/J/K/L/M/N/P

BEARING

€ 12.00

24-2

0926212001
ref: 24-2
MODEL R/S

BEARING(12X28X8)

€ 12.00

25-1

2323119B00
ref: 25-1
MODEL H/J/K/L/M/N/P

GUIDE,BALL

€ 18.50

25-2

2323119B10
ref: 25-2
MODEL R/S

BALL GUIDE,CL RELEASE OUTER

€ 18.50

26-1

2321124502
ref: 26-1
MODEL H/J/K/L/M/N/P

BALL GUIDE,CLUTCH RELEASE

€ 26.00

26-2

2321124201
ref: 26-2
MODEL R/S

BALL GUIDE,CL RELEASE INNER

€ 23.50

27-1

2325024500
ref: 27-1
MODEL H/J/K/L/M/N/P

BALL,CLUTCH RELEASE

€ 17.00

27-2

2325031003
ref: 27-2
MODEL R/S

BALL,CLUTCH RELEASE

€ 21.50

28

0913408009
ref: 28

SCREW(8X19.5)

€ 3.50

29-1

0831022088
ref: 29-1
MODEL H/J/K/L/M/N/P

NUT 8MM

€ 1.50

29-2

0914008012
ref: 29-2
MODEL R/S

NUT

€ 1.50

30

2322024500
ref: 30

ARM,CLUTCH RELEASE

€ 19.50

31-1

0110706207
ref: 31-1
MODEL H/J/K/L/M/N/P-

BOLT

€ 1.50

31-2

0150006207
ref: 31-2
MODEL R/S

BOLT

€ 1.50

32

0911906068
ref: 32

BOLT

€ 2.50

33-1

0831321064
ref: 33-1
MODEL H/J/K/L/M/N/P

NUT 6MM

€ 2.00

33-2

0831320063
ref: 33-2
MODEL R/S

NUT

€ 2.00

34

0916806023
ref: 34

GASKET(5.8X13X1.2) (NAS)

€ 1.50
