BACKUP LAMP (OPTIONAL)

LTF4WD 1991 (M) UNITED KINGDOM SWEDEN AUSTRALIA (E02 E17 E24)

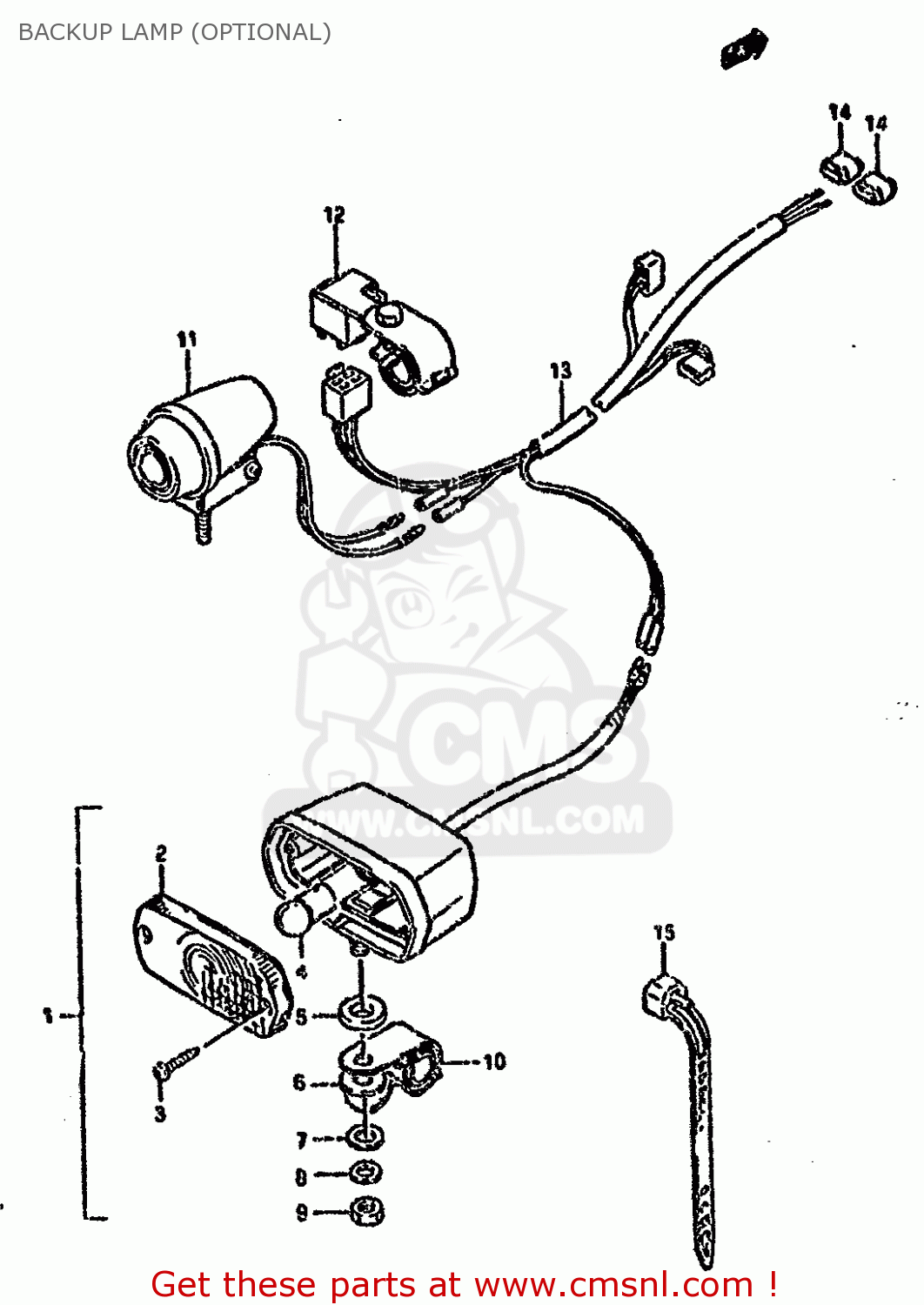

Backup lamp (optional) Schaubild LTF4WD 1991 (M) UNITED KINGDOM SWEDEN AUSTRALIA (E02 E17 E24)

BACKUP LAMP (OPTIONAL) LTF4WD 1991 (M) UNITED KINGDOM SWEDEN AUSTRALIA (E02 E17 E24)
BACKUP LAMP (OPTIONAL) LTF4WD 1991 (M) UNITED KINGDOM SWEDEN AUSTRALIA (E02 E17 E24)
Preise sind in EUR
ref
Teil #
Beschreibung
Anzahl
0
3870019860
ref: 0
BACKUP LAMP & BUZZER SWITCH
€ 138.00
1
3625019B00
ref: 1
LAMP ASSY,BACK UP
€ 52.50
2
3625219B00
ref: 2
LENS,BACK UP LAMP
€ 0.00
3
3626319B00
ref: 3
SCREW,BACKUP LAMP
€ 2.00
4
0947112003
ref: 4
BULB 12V 10W
€ 7.00
5
3569419B00
ref: 5
CUSHION NO.1
€ 0.00
6
3569519B00
ref: 6
CUSHION NO.2
€ 0.00
7-1
0832211088
ref: 7-1
MODEL H/J/K/L/M/N/P/
WASHER
0832211088
€ 1.50
7-2
0832201087
ref: 7-2
MODEL S
WASHER
0832201087
€ 1.50
8-1
0832121088
ref: 8-1
MODEL H/J/K/L/M/N/P/
LOCK WASHER
0832121088
€ 1.50
8-2
0832101087
ref: 8-2
MODEL S
WASHER,LOCK
0832101087
€ 1.50
9-1
0831012088
ref: 9-1
MODEL H/J/K/L/M/N/P/
NUT
0831012088
€ 1.50
9-2
0831000083
ref: 9-2
MODEL S
NUT
0831000083
€ 1.50
10
3629319B00
ref: 10
SPACER,BACKUP LAMP
€ 0.00
11
3875119B00
ref: 11
BUZZER ASSY,BACKUP
€ 0.00
12
3875219B00
ref: 12
RELAY ASSY,BACKUP
€ 0.00
13
3685619B00
ref: 13
WIRE,BACKUP LEAD
€ 0.00
14
3685936590
ref: 14
CONNECTOR,LEAD WIRE
3685936590
€ 6.50
15
0940714403
ref: 15
CLAMP(L:125)
0940714403
€ 2.50
4-3
0940718403
ref: 4-3
MODEL K/L/M E17
CLAMP L:165
€ 2.00
4-4
0940718403
ref: 4-4
CLAMP L:165
€ 2.00
4-5
0940725401
ref: 4-5
CLAMP(L:235)
0940725401
€ 4.00
5-1
3885219B00
ref: 5-1
MODEL H/J/K
LABEL (CAUTION MAX AMP)
€ 0.00
5-2
3885219B10
ref: 5-2
MODEL L/M/N/P/R/S
LABEL,CAUTION MAX AMP
€ 0.00
6-1
3864006B10
ref: 6-1
MODEL H/J/K
RELAY ASSY,HEADLAMP
3864006B10
€ 33.50
6-2
3873019B00
ref: 6-2
MODEL L/M/N/P/R/S
RELAY,NEUTRAL STARTER
3873019B00
€ 29.00
7-1
3674009301
ref: 7-1
MODEL H/J/K/L/M/N/P/
BOX ASSEMBLY,FUSE
€ 17.00
7-2
3674024B01
ref: 7-2
MODEL S
BOX ASSY,FUSE
3674024B01
€ 17.00
8
0948120101
ref: 8
FUSE(20A)
0948120101
€ 2.00
9-1
3674019B01
ref: 9-1
MODEL H/J/K/L/M/N/P/
BOX ASSEMBLY,FUSE
€ 15.00
9-2
3674004701
ref: 9-2
MODEL S
BOX ASSY,FUSE
3674004701
€ 15.00
10
0948115101
ref: 10
FUSE(15A)
0948115101
€ 1.50
11
4741019B00
ref: 11
HOLDER,ELECTRIC PARTS FR
€ 0.00
12-1
0110706166
ref: 12-1
MODEL H/J/K/L/M
BOLT
€ 1.50
12-2
0911806103
ref: 12-2
MODEL N/P/R/S
BOLT 6X12
€ 2.50
13
0832121066
ref: 13
WASHER,LOCK
0832121066
€ 1.50
14
0916006004
ref: 14
WASHER (6.5X24X1.6)
0916006004
€ 1.50
15-1
3711019B01
ref: 15-1
MODEL H/J/K/L
SWITCH ASSEMBLY,IGNITION
€ 66.50
15-2
3711019B02
ref: 15-2
MODEL M/N/P/R/S
SWITCH ASSY,IGNITION
3711019B02
€ 66.50
16
3714219B00
ref: 16
MASCOT,KEY
3714219B00
€ 3.50
17-1
3782024500
ref: 17-1
MODEL H/J/K E17
SWITCH ASSY,EMERGENCY
€ 0.00
17-2
3782019B00
ref: 17-2
MODEL L/M/N/P/R/S E1
SWITCH ASSY,EMERGENCY
€ 45.00
18
3782524500
ref: 18
MODEL H/J/K E17
WIRE,EMERGENCY SWITCH
€ 20.50
19-1
3850019B00
ref: 19-1
MODEL H,MODEL J/K/L/
HORN ASSEMBLY
3850019B00
€ 39.00
19-2
3850019B01
ref: 19-2
MODEL J/K/L/M/N/P/R/
HORN ASSEMBLY
€ 39.00
20
3783018A00
ref: 20
E17,E24,E2 OPT MODEL
SWITCH ASSY,HORN
€ 22.50
21-1
3674019B10
ref: 21-1
MODEL L/M/N/P/R E17,
BOX ASSY,COOLING FAN FUSE
3674019B10
€ 18.00
21-2
3674024510
ref: 21-2
MODEL S E17,E24
BOX ASSY,FUSE
€ 18.00
22
3862004570
ref: 22
MODEL L/M/N/P/R/S E1
BRACKET,TURN SIGNAL RELAY
€ 0.00
23-1
0211206126
ref: 23-1
MODEL L/M E17,E24
SCREW
0211206126
€ 1.50
23-2
0913806024
ref: 23-2
MODEL N/P E17,E24
SCREW(6X12)
€ 0.00
23-3
0911806103
ref: 23-3
MODEL R/S E17,E24
BOLT 6X12
€ 2.50
24
0832121066
ref: 24
MODEL L/M E17,E24
WASHER,LOCK
0832121066
€ 1.50
25
0916006059
ref: 25
MODEL L/M E17
WASHER,COVER,FRONT
€ 1.50
26-1
3714619B00
ref: 26-1
OPT
KEY,BLANK(TYPE:C)
3714619B00
€ 5.00
26-2
3714619B10
ref: 26-2
OPT
KEY,BLANK(TYPE:D)
3714619B10
€ 5.00
27
3960218A00
ref: 27
OPT
PLUG ASSY,POWER SOURCE
3960218A00
€ 26.50
28
3685219B00
ref: 28
E2 OPT
WIRE,HORN LEAD
€ 0.00
29
3685936590
ref: 29
E2 OPT
CONNECTOR,LEAD WIRE
3685936590
€ 6.50
30
3683119B00
ref: 30
E2 OPT
LEAD WIRE,HORN SWITCH (ORANGE)
€ 0.00
31
3685119B10
ref: 31
E2 OPT
WIRE,HORN SWITCH LEAD
€ 0.00
32
3685139D00
ref: 32
MODEL R E24
LEAD WIRE,EMERGENCY SWITCH
€ 0.00
