Front Bevel Gear

ZG1400CEF CONCOURS 14 2014 USA / ABS

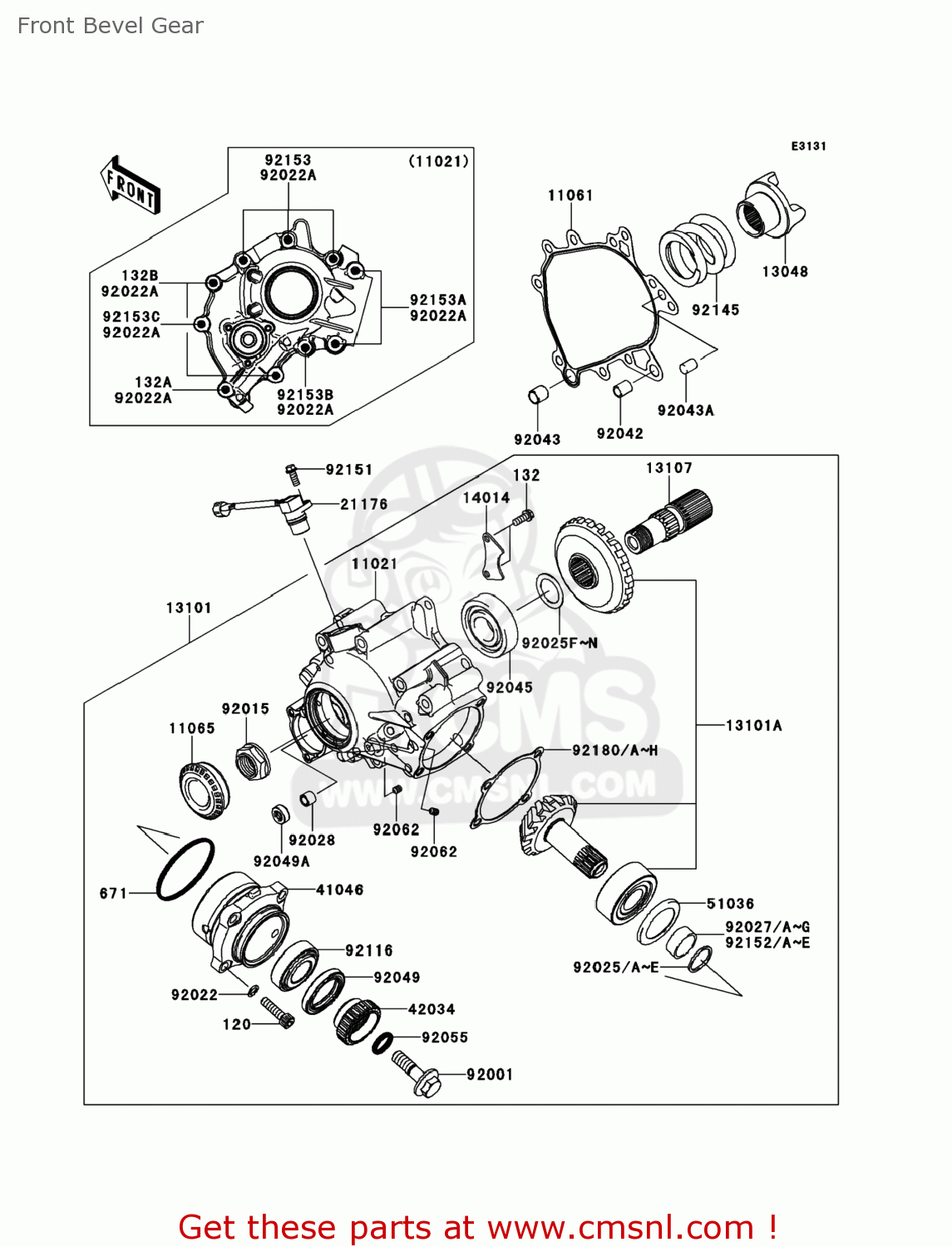

Front bevel gear Schaubild ZG1400CEF CONCOURS 14 2014 USA / ABS

Front Bevel Gear ZG1400CEF CONCOURS 14 2014 USA / ABS
Front Bevel Gear ZG1400CEF CONCOURS 14 2014 USA / ABS
Preise sind in EUR
ref
Teil #
Beschreibung
Anzahl
11021
110210014458
ref: 11021
CASE-ASSY,FR GEAR,P.S
€ 651.00
11061
110610310
ref: 11061
GASKET,FR GEAR CASE (NAS)
110610310
€ 19.00
11065
110650165
ref: 11065
CAP
110650165
€ 18.00
120
120CB0830
ref: 120
BOLT-SOCKET,8X30
120CB0830
€ 2.50
13048
130480004
ref: 13048
CAM-DAMPER
130480004
€ 56.00
13101
131010119458
ref: 13101
GEAR-ASSY,P.SILVER
€ 1,598.50
13101A
131015094
ref: 13101A
GEAR-ASSY
€ 528.50
13107
131070203
ref: 13107
SHAFT,DRIVE
€ 127.50
132
132BA0616
ref: 132
BOLT-FLANGED-SMALL,6X
132BA0616
€ 1.00
132A
132BB0850
ref: 132A
BOLT-FLANGED-SMALL,8X
132BB0850
€ 3.00
132B
132BD0835
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
14014
140140031
ref: 14014
PLATE-POSITION
€ 5.00
21176
211760037
ref: 21176
SENSOR,SPEED
211760037
€ 134.50
41046
410460024
ref: 41046
HOUSING-BEARING
€ 117.50
42034
420340058
ref: 42034
COUPLING,FR,DRIVEN
420340058
€ 91.00
51036
510361002
ref: 51036
CAP
510361002
€ 3.50
671
671D2570
ref: 671
O RING,69.4X3.1
671D2570
€ 3.50
92001
920011169
ref: 92001
BOLT,12X42
920011169
€ 14.50
92015
920151554
ref: 92015
NUT,24MM
920151554
€ 15.50
92022
920221028
ref: 92022
WASHER,8.5X13X1
920221028
€ 2.50
92022A
920221582
ref: 92022A
WASHER,8.5X16X1.2
€ 0.50
92025
920251072
ref: 92025
SHIM,1.70T
920251072
€ 6.00
92025A
920251073
ref: 92025A
SHIM,1.72T
920251073
€ 6.00
92025B
920251074
ref: 92025B
SHIM,1.74T
920251074
€ 6.00
92025C
920251075
ref: 92025C
SHIM,1.76T
920251075
€ 6.00
92025D
920251076
ref: 92025D
SHIM,1.78T
920251076
€ 6.00
92025E
920251077
ref: 92025E
SHIM,1.80T
920251077
€ 6.00
92025F
920251688
ref: 92025F
SHIM,25.3X36X0.15
920251688
€ 5.50
92025G
920251689
ref: 92025G
SHIM,25.3X36X0.50
920251689
€ 5.50
92025H
920251690
ref: 92025H
SHIM,25.3X36X0.60
920251690
€ 5.50
92025I
920251691
ref: 92025I
SHIM,25.3X36X0.70
920251691
€ 5.50
92025J
920251692
ref: 92025J
SHIM,25.3X36X0.80
920251692
€ 5.50
92025K
920251693
ref: 92025K
SHIM,25.3X36X0.90
920251693
€ 5.50
92025L
920251694
ref: 92025L
SHIM,25.3X36X1.0
920251694
€ 5.50
92025M
920251695
ref: 92025M
SHIM,25.3X36X1.1
920251695
€ 5.50
92025N
920251696
ref: 92025N
SHIM,25.3X36X1.2
920251696
€ 5.50
92027
920271403
ref: 92027
COLLAR,25.2X29.8X10.4
920271403
€ 7.00
92027A
920271404
ref: 92027A
COLLAR,25.2X29.8X10.5
920271404
€ 7.00
92027B
920271405
ref: 92027B
COLLAR,25.2X29.8X10.6
920271405
€ 7.00
92027C
920271406
ref: 92027C
COLLAR,25.2X29.8X10.7
920271406
€ 7.00
92027D
920271407
ref: 92027D
COLLAR,25.2X29.8X10.8
920271407
€ 7.00
92027E
920271408
ref: 92027E
COLLAR,25.2X29.8X10.9
920271408
€ 7.00
92027F
920271409
ref: 92027F
COLLAR,25.2X29.8X11.0
920271409
€ 7.00
92027G
920271410
ref: 92027G
COLLAR,25.2X29.8X11.1
920271410
€ 7.00
92028
920281750
ref: 92028
BUSHING,8X12X10
920281750
€ 4.00
92042
92042031
ref: 92042
PIN,DOWEL,12X14
92042031
€ 4.00
92043
920431279
ref: 92043
PIN,11.5X14X14
920431279
€ 3.00
92043A
920431506
ref: 92043A
PIN
920431506
€ 2.00
92045
920450063
ref: 92045
BEARING-BALL,6305-13
€ 41.00
92049
920491038
ref: 92049
OIL SEAL,TC35527
920491038
€ 12.00
92049A
920491566
ref: 92049A
SEAL-OIL
920491566
€ 4.50
92055
920550130
ref: 92055
RING-O,18.7X3.5
920550130
€ 1.50
92062
920621078
ref: 92062
NOZZLE
920621078
€ 3.00
92116
921161062
ref: 92116
BEARING-ROLLER,HI-CAP
921161062
€ 38.00
92145
921450430
ref: 92145
SPRING,CAM DAMPER
€ 44.00
92151
921511755
ref: 92151
BOLT
921511755
€ 1.50
92152
921520480
ref: 92152
COLLAR,25.2X29.8X11.2
921520480
€ 13.50
92152A
921520481
ref: 92152A
COLLAR,25.2X29.8X11.3
€ 13.50
92152B
921520482
ref: 92152B
COLLAR,25.2X29.8X11.4
€ 13.50
92152C
921520483
ref: 92152C
COLLAR,25.2X29.8X11.5
€ 13.50
92152D
921520484
ref: 92152D
COLLAR,25.2X29.8X11.6
€ 13.50
92152E
921520485
ref: 92152E
COLLAR,25.2X29.8X11.7
€ 13.50
92153
921530434
ref: 92153
BOLT,8X95
€ 2.50
92153A
921531874
ref: 92153A
BOLT,8X92
€ 7.00
92153B
921531953
ref: 92153B
BOLT,FLANGED,8X95
€ 2.50
92153C
921531954
ref: 92153C
BOLT,FLANGED-SMALL,8X
€ 2.00
92180
921800227
ref: 92180
SHIM,T=0.1
€ 10.50
92180A
921800228
ref: 92180A
SHIM,T=0.15
€ 10.50
92180B
921800229
ref: 92180B
SHIM,T=0.5
€ 10.50
92180C
921800230
ref: 92180C
SHIM,T=0.6
€ 10.50
92180D
921800231
ref: 92180D
SHIM,T=0.7
€ 10.50
92180E
921800232
ref: 92180E
SHIM,T=0.8
921800232
€ 10.50
92180F
921800233
ref: 92180F
SHIM,T=0.9
€ 10.50
92180G
921800234
ref: 92180G
SHIM,T=1.0
€ 10.50
92180H
921800235
ref: 92180H
SHIM,T=1.2
921800235
€ 10.50
