Cowling (Center)(CDF/CEF)

ZG1400CEF CONCOURS 14 2014 USA / ABS

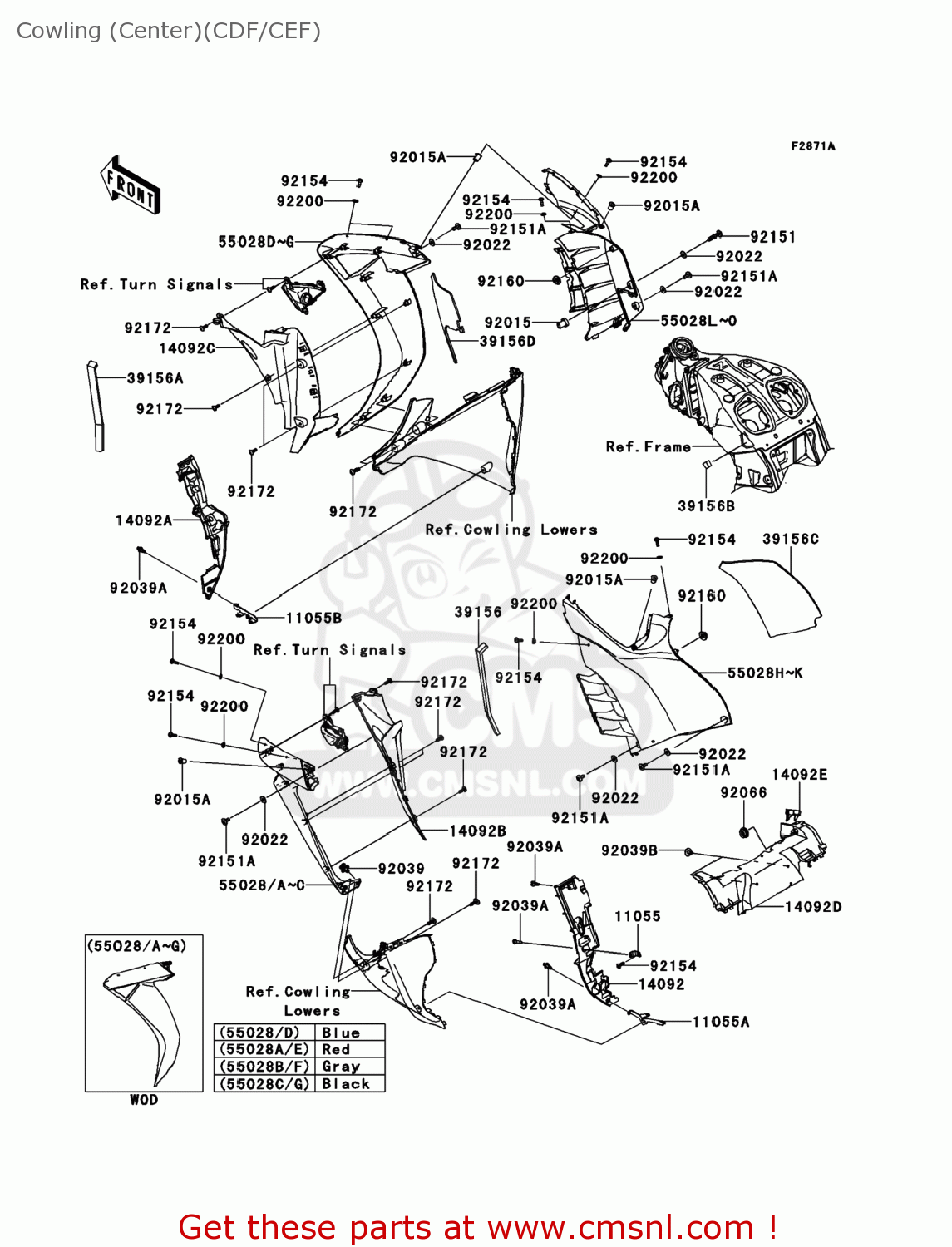

Cowling (center)(cdf/cef) Schaubild ZG1400CEF CONCOURS 14 2014 USA / ABS

Cowling (Center)(CDF/CEF) ZG1400CEF CONCOURS 14 2014 USA / ABS
Cowling (Center)(CDF/CEF) ZG1400CEF CONCOURS 14 2014 USA / ABS
Preise sind in EUR
ref
Teil #
Beschreibung
Anzahl
11055
110551837
ref: 11055
BRACKET,RESERVOIR
€ 2.50
11055A
110551838
ref: 11055A
BRACKET,LWR COWLING,L
€ 8.50
11055B
110551839
ref: 11055B
BRACKET,LWR COWLING,R
€ 4.00
14092
140920098
ref: 14092
COVER,HEAT GUARD,LH
€ 41.50
14092A
140920099
ref: 14092A
COVER,HEAT GUARD,RH
140920099
€ 41.50
14092B
140920102
ref: 14092B
COVER,SHROUD,LH
140920102
€ 57.00
14092C
140920103
ref: 14092C
COVER,SHROUD,RH
140920103
€ 57.00
14092D
140920135
ref: 14092D
COVER,HEAT GUARD,FR
€ 67.50
14092E
140920136
ref: 14092E
COVER,RADIATOR CAP
€ 8.00
39156
391560591
ref: 39156
PAD,SHROUD,LH
€ 2.50
39156A
391560593
ref: 39156A
PAD,SHROUD,RH
391560593
€ 2.50
39156B
391560594
ref: 39156B
PAD,20X20X14
391560594
€ 2.50
39156C
391560595
ref: 39156C
PAD,CNT COWLING,LH
391560595
€ 16.00
39156D
391560596
ref: 39156D
PAD,CNT COWLING,RH
€ 16.00
55028A
550280320L1
ref: 55028A
COWLING,SIDE,LH,C.C.R
€ 151.00
55028C
550280320660
ref: 55028C
COWLING,SIDE,LH,M.S.B
550280320660
€ 205.50
55028E
550280321L1
ref: 55028E
COWLING,SIDE,RH,C.C.R
€ 209.50
55028G
550280321660
ref: 55028G
COWLING,SIDE,RH,M.S.B
€ 205.50
55028I
550280388L1
ref: 55028I
COWLING,CNT,LH,C.C.RE
€ 271.00
55028K
550280388660
ref: 55028K
COWLING,CNT,LH,M.S.BL
€ 319.50
55028M
550280389L1
ref: 55028M
COWLING,CNT,RH,C.C.RE
€ 308.50
55028O
550280389660
ref: 55028O
COWLING,CNT,RH,M.S.BL
€ 313.50
92015
920151692
ref: 92015
NUT
920151692
€ 4.00
92015A
920151757
ref: 92015A
NUT,5MM
920151757
€ 4.50
92022
920221143
ref: 92022
WASHER,6.5X16X1
920221143
€ 2.50
92039
920390014
ref: 92039
RIVET
920390014
€ 2.00
92039A
920390051
ref: 92039A
RIVET
920390051
€ 3.00
92039B
920391289
ref: 92039B
RIVET
920391289
€ 1.50
92066
920661306
ref: 92066
PLUG
920661306
€ 3.00
92151
921511605
ref: 92151
BOLT,SOCKET,6X30
921511605
€ 1.50
92151A
921511654
ref: 92151A
BOLT,SOCKET,6X14
921511654
€ 1.00
92154
921540209
ref: 92154
BOLT,SOCKET,5X16
921540209
€ 1.50
92160
921601613
ref: 92160
DAMPER
921601613
€ 2.50
92172
921720238
ref: 92172
SCREW,TAPPING,5X16
921720238
€ 0.50
92200
922000006
ref: 92200
WASHER,NYLONE,5.3X11.
922000006
€ 1.00
