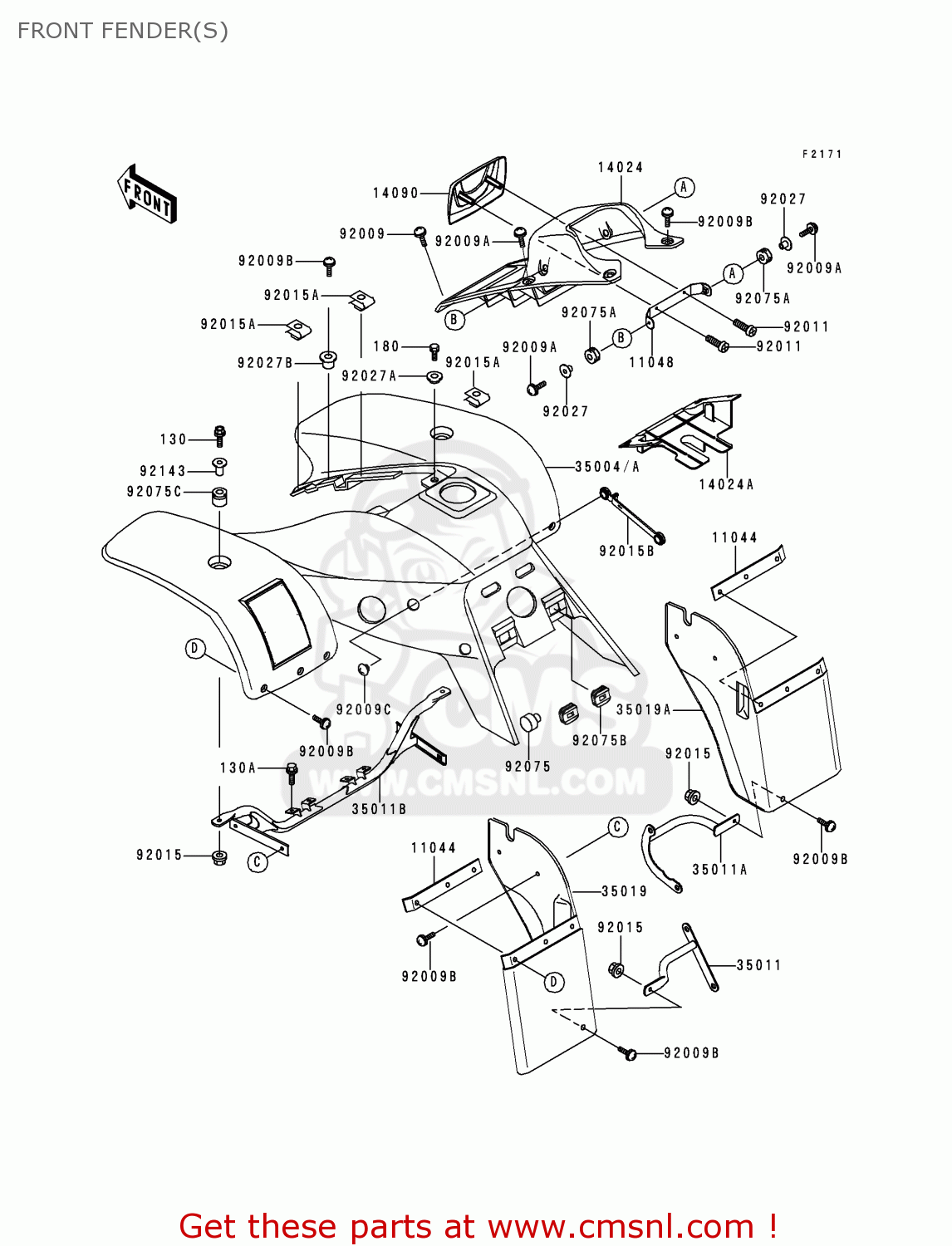

FRONT FENDER(S)

ref

Teil #

Beschreibung

Anzahl

130

130G0635
ref: 130

BOLT, FLANGED, 6X35

€ 0.50

130A

130P0612
ref: 130A

BOLT-FLANGED,6X12

€ 2.50

180

180D0635
ref: 180

BOLT-UPSET-WS,6X35

€ 1.50

11044

110441934
ref: 11044

BRACKET,FLAP

€ 8.50

11048

110481742
ref: 11048

BRACKET,HEAD LAMP COV

€ 18.50

14024

1402412686D
ref: 14024

COVER FR FENDER BLACK

€ 34.00

14024A

140241297
ref: 14024A

COVER,FRONT FENDER,IN

€ 11.00

14090

1409014956D
ref: 14090

COVER, HEADLAMP BLACK

€ 16.00

35004

3500413796A
ref: 35004

FENDER-FRONT,H.GREEN

€ 228.50

35004A

3500413796L
ref: 35004A

FENDER-FRONT,F.RED

€ 228.50

35011

3501116945A
ref: 35011

STAY,FRONT FLAP,LH,SI

€ 20.50

35011A

3501116955A
ref: 35011A

STAY,FRONT FLAP,RH,SI

€ 14.00

35011B

35011169710
ref: 35011B

STAY,FR FENDER,BLACK

€ 58.50

35019

350191172
ref: 35019

FLAP,LH

€ 23.00

35019A

350191173
ref: 35019A

FLAP,RH

€ 23.00

92009

920091181
ref: 92009

SCREW,6X18

€ 1.50

92009A

920091256
ref: 92009A

SCREW,6X22,BLACK

€ 1.50

92009B

920091288
ref: 92009B

SCREW,6X14

€ 1.50

92009C

920091508
ref: 92009C

SCREW,16MM

€ 4.00

92011

92011562
ref: 92011

SCREW 0.16X0.5

€ 1.50

92015

920151675
ref: 92015

NUT

€ 2.50

92015A

920151678
ref: 92015A

NUT

€ 3.50

92015B

920151701
ref: 92015B

NUT

€ 8.00

92027

920271450
ref: 92027

COLLAR,L=13.1,BLACK

€ 4.00

92027A

920271933
ref: 92027A

COLLAR,L=5.6

€ 3.00

92027B

920271964
ref: 92027B

COLLAR,L=4.7

€ 3.00

92075

92075023
ref: 92075

DAMPER RUBB-DUAL SEAT

€ 2.50

92075A

920751690
ref: 92075A

DAMPER,10X24X12

€ 3.00

92075B

920751834
ref: 92075B

DAMPER

€ 5.50

92075C

920751936
ref: 92075C

DAMPER

€ 3.00

92143

921431100
ref: 92143

COLLAR,L=19.6

€ 4.50
