CLUTCH

KEF300-A6 LAKOTA300 2000 USA CALIFORNIA

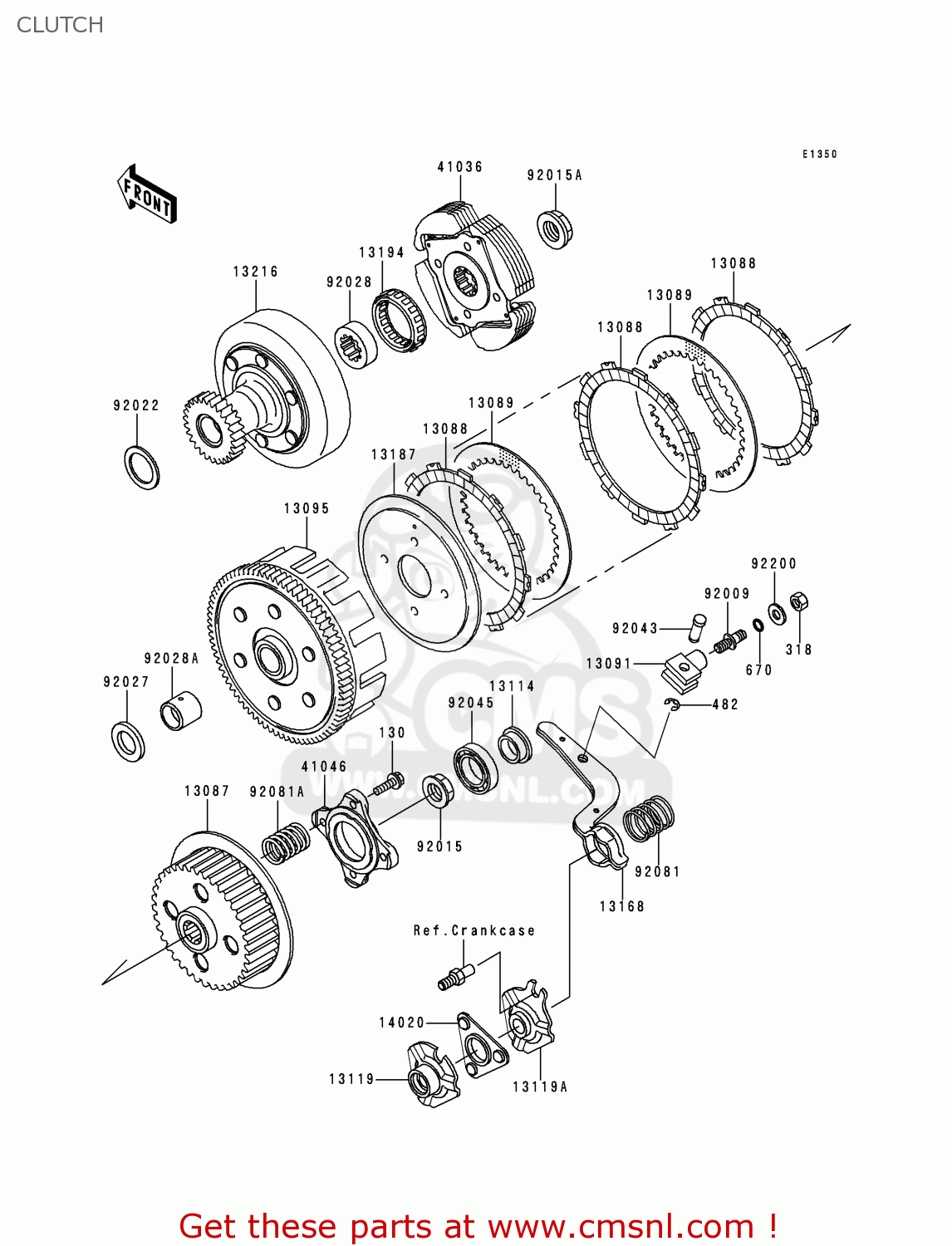

Clutch Schaubild KEF300-A6 LAKOTA300 2000 USA CALIFORNIA

CLUTCH KEF300-A6 LAKOTA300 2000 USA CALIFORNIA
CLUTCH KEF300-A6 LAKOTA300 2000 USA CALIFORNIA
Preise sind in EUR
ref
Teil #
Beschreibung
Anzahl
130
130P0620
ref: 130
BOLT-FLANGED,6X20
130P0620
€ 2.00
318
318B0800
ref: 318
NUT,8MM
318B0800
€ 0.50
482
482J6000
ref: 482
CIRCLIP-TYPE-E,6MM
482J6000
€ 0.50
670
670B1508
ref: 670
O RING,8MM
670B1508
€ 1.00
13087
130871065
ref: 13087
HUB-CLUTCH
130871065
€ 73.00
13088
13088041
ref: 13088
PLATE,CLUTCH FRICTION (NAS)
13088041
€ 11.00
13089
130891005
ref: 13089
PLATE,CLUTCH STEEL (NAS)
130891005
€ 7.00
13091
130911341
ref: 13091
HOLDER,CLUTCH RELEASE
130911341
€ 31.50
13095
130951365
ref: 13095
HOUSING-COMP-CLUTCH
€ 410.00
13114
131141056
ref: 13114
PUSHER-CLUTCH
131141056
€ 14.00
13119
131191073
ref: 13119
CAM-RELEASE
€ 28.00
13119A
131191074
ref: 13119A
CAM-RELEASE
131191074
€ 37.00
13168
131681263
ref: 13168
LEVER,CLUTCH RELEASE
131681263
€ 24.50
13187
131871081
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
131871081
€ 47.00
13194
131941055
ref: 13194
CLUTCH-ONEWAY
131941055
€ 85.50
13216
132161186
ref: 13216
GEAR-COMP
€ 141.50
14020
140201093
ref: 14020
RETAINER,CLUTCH RELEA
140201093
€ 12.50
41036
410361286
ref: 41036
HUB-ASSY,CLUTCH,FR
410361286
€ 349.50
41046
410461063
ref: 41046
HOUSING-BEARING
410461063
€ 38.50
92009
920091303
ref: 92009
SCREW,CLUTCH RELEASE
920091303
€ 8.00
92015
920151465
ref: 92015
NUT,16MM
920151465
€ 12.00
92015A
920151512
ref: 92015A
NUT,18MM
920151512
€ 12.00
92022
920221989
ref: 92022
WASHER,27.3X38X0.8
920221989
€ 3.00
92027
920271888
ref: 92027
COLLAR,20.5X34X4
€ 11.50
92028
920281370
ref: 92028
BUSHING,CLUTCH,FR
920281370
€ 26.50
92028A
920281371
ref: 92028A
BUSHING,CLUTCH
€ 18.00
92043
920431230
ref: 92043
PIN,CLUTCH RELEASE
920431230
€ 8.00
92045
92045036
ref: 92045
BEARING-BALL,#6905
92045036
€ 27.00
92081
920811681
ref: 92081
SPRING,
€ 4.00
92081A
920811848
ref: 92081A
SPRING,CLUTCH
920811848
€ 5.50
92200
922001213
ref: 92200
WASHER
€ 2.50
