MUFFLER

XR500R 1981 (B) USA

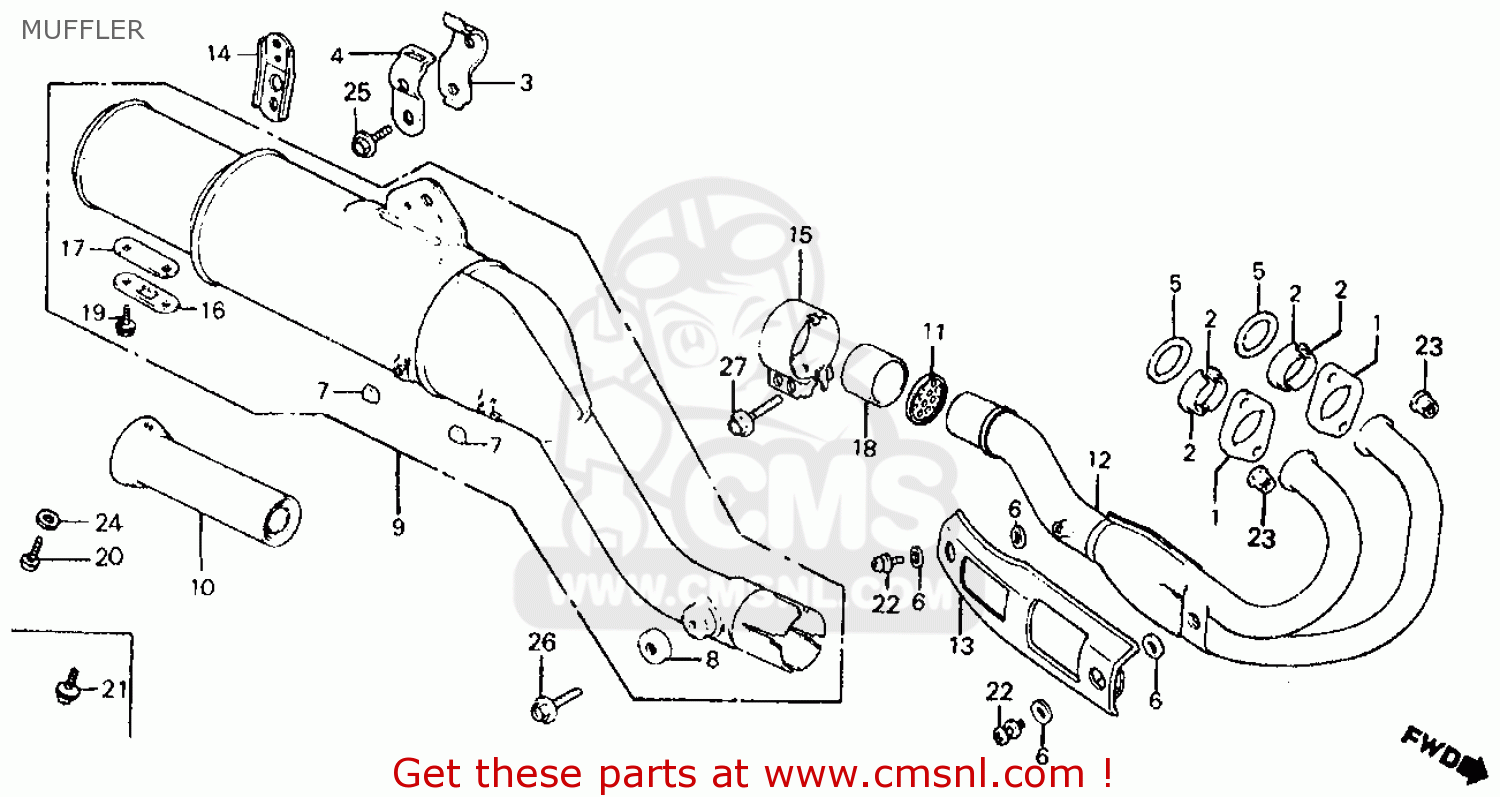

Muffler Schaubild XR500R 1981 (B) USA

MUFFLER XR500R 1981 (B) USA
MUFFLER XR500R 1981 (B) USA
Preise sind in EUR
ref
Teil #
Beschreibung
Anzahl
1
18231429000
ref: 1
JOINT,EX.PIPE
18231429000
€ 19.00
2
18233435000
ref: 2
COLLAR,EX.PIPE
18233435000
€ 7.00
3
18283MA0000
ref: 3
BAND A,MUFFLER
18283MA0000
€ 9.50
4
18284MA0000
ref: 4
BAND B,MUFFLER
18284MA0000
€ 9.50
5
18291216000
ref: 5
GASKET,EX PIPE (NAS)
18291216000
€ 4.50
6
18292KF9900
ref: 6
PACKING,PROTECTOR (NAS)
18292KF9900
€ 2.50
6
18292MM9740
ref: 6
PACKING,PROTECTOR (NAS)
18292MM9740
€ 2.50
6
18292415000
ref: 6
PACKING,PROTECTOR (MCA)
18292415000
€ 2.50
7
18293147000
ref: 7
RUBBER,PROTR.PKG. (NAS)
18293147000
€ 3.50
8
18295KS3920
ref: 8
PACKING B,MUFFLER
€ 8.00
8
18295KZ1670
ref: 8
PACKING,MUFF B (NAS)
18295KZ1670
€ 8.00
8
18295429000
ref: 8
PACKING B,MUFFLER (NAS)
18295429000
€ 8.00
9
18310MA0000
ref: 9
MUFFLER COMP.,EX.
€ 639.50
9
18310MA0010
ref: 9
MUFFLER COMP,EX.
€ 639.50
9
18310MA0651
ref: 9
MUFFLER COMP,EX.
€ 639.50
10
18311MA0000
ref: 10
PIPE COMP.,TAIL
€ 43.00
10
18311MA0010
ref: 10
PIPE COMP.,TAIL
18311MA0010
€ 43.00
12
18320MA0000
ref: 12
PIPE COMP.,EX.
18320MA0000
€ 278.00
13
18325429000
ref: 13
PROTECTOR,EX.PIPE
18325429000
€ 57.00
13
18325429010
ref: 13
PROTECTOR,EX.PIPE
18325429010
€ 57.00
15
18371MA0000
ref: 15
BAND,MUFFLER
18371MA0000
€ 24.00
15
18371MA0770
ref: 15
BAND,MUFFLER
18371MA0770
€ 24.00
15
18376KV0000
ref: 15
BAND,MUFFLER
18376KV0000
€ 24.00
16
18373429000
ref: 16
LID,MUFFER
€ 8.00
16
18373429010
ref: 16
LID,MUFFLER
18373429010
€ 8.00
17
18374MN1880
ref: 17
PACKING,MUFFLER L (NAS)
18374MN1880
€ 5.00
17
18374429000
ref: 17
PKG,MUFFLER,LID (MCA)
18374429000
€ 5.00
18
18391429000
ref: 18
PACKING,MUFFLER (MCA)
18391429000
€ 11.50
18
18391429010
ref: 18
PACKING,MUFFLER (NAS)
18391429010
€ 11.50
19
934010601207
ref: 19
BOLT-WASHER,6X12
934010601207
€ 1.00
19
934110601207
ref: 19
BOLT-WASH,6X12
934110601207
€ 1.00
19
934810601207
ref: 19
BOLT-WASHER,6X12
€ 1.00
21
938910601200
ref: 21
SCREW-WASHER 6X12
938910601200
€ 1.00
22
938910601207
ref: 22
SCREW-WASHER 6X12
938910601207
€ 1.50
25
957000801600
ref: 25
BOLT,FLANGE,8X16
957000801600
€ 1.00
25
957010801600
ref: 25
BOLT FLANGE 8X16
957010801600
€ 1.00
26
957000802000
ref: 26
BOLT,FLANGE, 8X20
957000802000
€ 1.00
26
957010802000
ref: 26
BOLT FLANGE 8X20
957010802000
€ 1.00
27
957280803500
ref: 27
BOLT FRANGE 8X35
957280803500
€ 1.50
