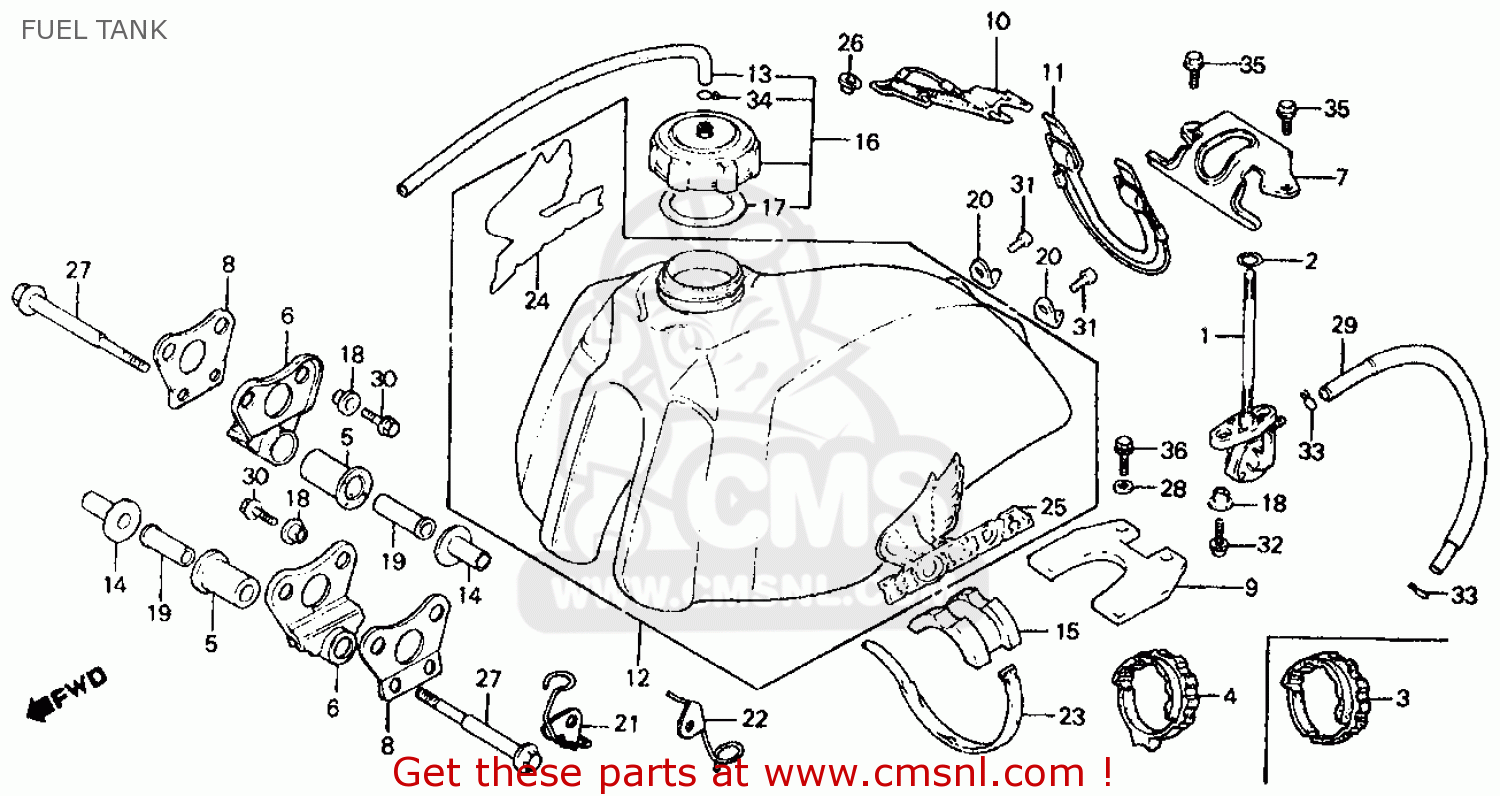

FUEL TANK

ref

Teil #

Beschreibung

Anzahl

1

16950KT0831
ref: 1

COCK ASSY,FUEL

€ 70.00

1

16950MA0015
ref: 1

COCK ASSY,FUEL

€ 70.00

2

16997467000
ref: 2

O-RING,11.8X3.55

€ 5.00

5

17508467000
ref: 5

RUB,FUELTANK MTG.

€ 5.50

6

17511KA2000
ref: 6

BRACKET,TANK.MOUN

€ 10.50

7

17513MA0000
ref: 7

STAY,RR.FUEL TANK

€ 21.00

8

17514MA0000
ref: 8

RUB.,FR.TANK MTG.

€ 5.00

9

17515MA0000
ref: 9

RUB.,RR.TANK MTG.

€ 8.00

11

17516MA0000
ref: 11

BAND,RR.TANK

€ 23.50

12

17520MA0000
ref: 12

TANK SUB,FUEL

€ 314.50

13

17521429000
ref: 13

TUBE,FUELCAP BRTH

€ 7.50

14

17525MA0000
ref: 14

COLLAR,TANK.MOUNT

€ 6.00

15

17611KA2000
ref: 15

CUSHION,FR.TANK

€ 5.00

16

17620MA0000
ref: 16

CAP,FUEL TANK

€ 69.50

16

17620MA0405
ref: 16

CAP COMP FUEL FIL

€ 69.50

17

17624467020
ref: 17

PKG,FUEL TANK CAP

€ 3.50

18

17626467000
ref: 18

COLLAR TANK SETT

€ 5.50

19

17628467010
ref: 19

COLLAR,SLIDER

€ 5.50

20

17629KA2000
ref: 20

HOOK,TANK RR.

€ 4.00

23

32161402000
ref: 23

BAND,WIRE

€ 4.00

24

87123MA0300
ref: 24

MARK,R.FUEL TANK

€ 7.50

25

87124MA0300
ref: 25

MARK,L.FUEL TANK

€ 7.50

27

90175MA0000
ref: 27

BOLT FUELTANK MTG

€ 14.00

28

90551033000
ref: 28

WASHER,SPRKT SETT

€ 2.50

29

91461MA0000
ref: 29

TUBE,FUEL,5.3X240

€ 6.00

30

9200006016
ref: 30

BOLT,HEX., 6X16

€ 0.50

30

92000060160A
ref: 30

BOLT,HEX 6X16

€ 0.50

30

92000060161A
ref: 30

BOLT,HEX.,6X16

€ 0.50

30

92100060160A
ref: 30

BOLT,HEX.,6X16

€ 0.50

30

92101060160A
ref: 30

BOLT,HEX.,6X16

€ 0.50

30

92200060160A
ref: 30

BOLT,HEX,6X16

€ 0.50

31

93500060120H
ref: 31

SCREW,PAN,6X12

€ 1.00

31

935000601208
ref: 31

SCREW,CROSS 6X12

€ 1.00

32

938910602008
ref: 32

SCREW-WASH,6X20

€ 1.00

34

9500250000
ref: 34

CLIP,TUBE 5.0MM

€ 1.00

35

957000601400
ref: 35

BOLT FLANGE 6X14

€ 1.00

35

957010601400
ref: 35

BOLT,FLANGE 6X14

€ 1.00

36

957000601600
ref: 36

BOLT,FLANGE,6X16

€ 1.00

36

957010601600
ref: 36

BOLT,FLANG,6X16

€ 1.00
