REAR COMBINATION LAMP

GS750B 1977 (B) USA (E03)

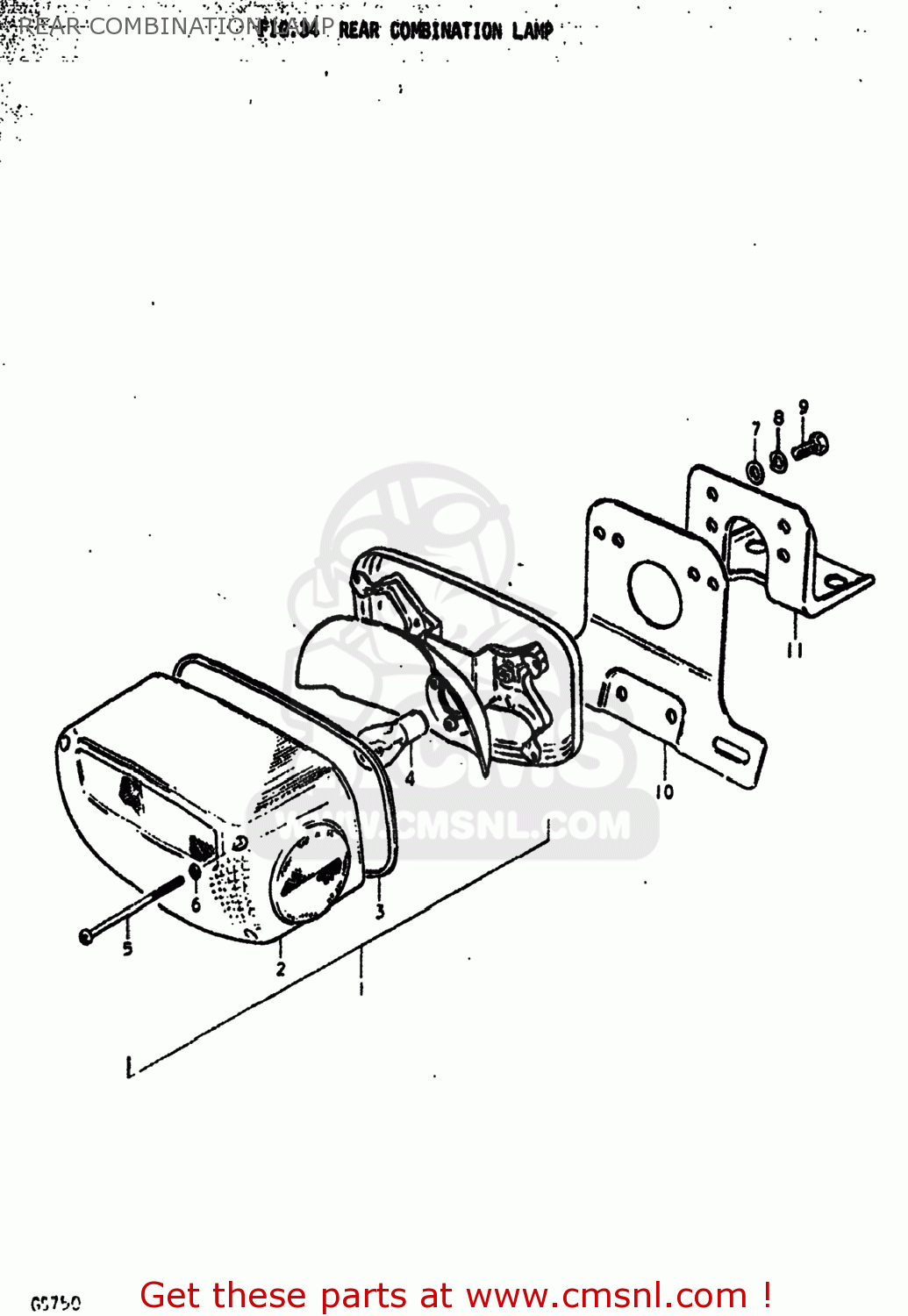

Rear combination lamp диаграмма GS750B 1977 (B) USA (E03)

REAR COMBINATION LAMP GS750B 1977 (B) USA (E03)
REAR COMBINATION LAMP GS750B 1977 (B) USA (E03)
цены в EUR
ссылка
часть #
описание
количество
1-1
3571045010
ссылка: 1-1
35710-45011
LAMP ASSEMBLY,REAR COMBINATION
€ 182.50
1-2
3571045011
ссылка: 1-2
LAMP ASSEMBLY,REAR COMBINATION
3571045011
€ 182.50
2-1
3571245010
ссылка: 2-1
35712-45013
LENS,REAR COMBINATION LAMP
€ 60.00
2-2
3571245011
ссылка: 2-2
35712-45013
LENS,REAR COMBINATION LAMP
€ 60.00
3
3571345010
ссылка: 3
GASKET (NAS)
3571345010
€ 8.50
4
0947112035
ссылка: 4
BULB(12V23W)
0947112035
€ 6.50
5
0211104558
ссылка: 5
02112-04558
SCREW
0211104558
€ 1.50
6
3562743010
ссылка: 6
GASKET (NAS)
3562743010
€ 1.50
7
0832221068
ссылка: 7
08322-01067
WASHER
0832221068
€ 1.50
8
0832121068
ссылка: 8
08321-01067
LOCK WASHER
0832121068
€ 1.50
9
0110706128
ссылка: 9
01500-06127
BOLT
0110706128
€ 2.00
10-1
3592745000
ссылка: 10-1
BRACKET,LICENSE PLATE
€ 16.00
10-2
3592745002
ссылка: 10-2
35927-45003
BRACKET,LICENSE PLATE
€ 16.00
11-1
3592845000
ссылка: 11-1
35928-45001
BRACKET,LICENSE PLATE
€ 7.00
11-2
3592845001
ссылка: 11-2
BRACKET,LICENSE PLATE
3592845001
€ 7.00
