HEATER UNIT-HEATER BLOWER

ACCORD 1976 3DR STD (KA)

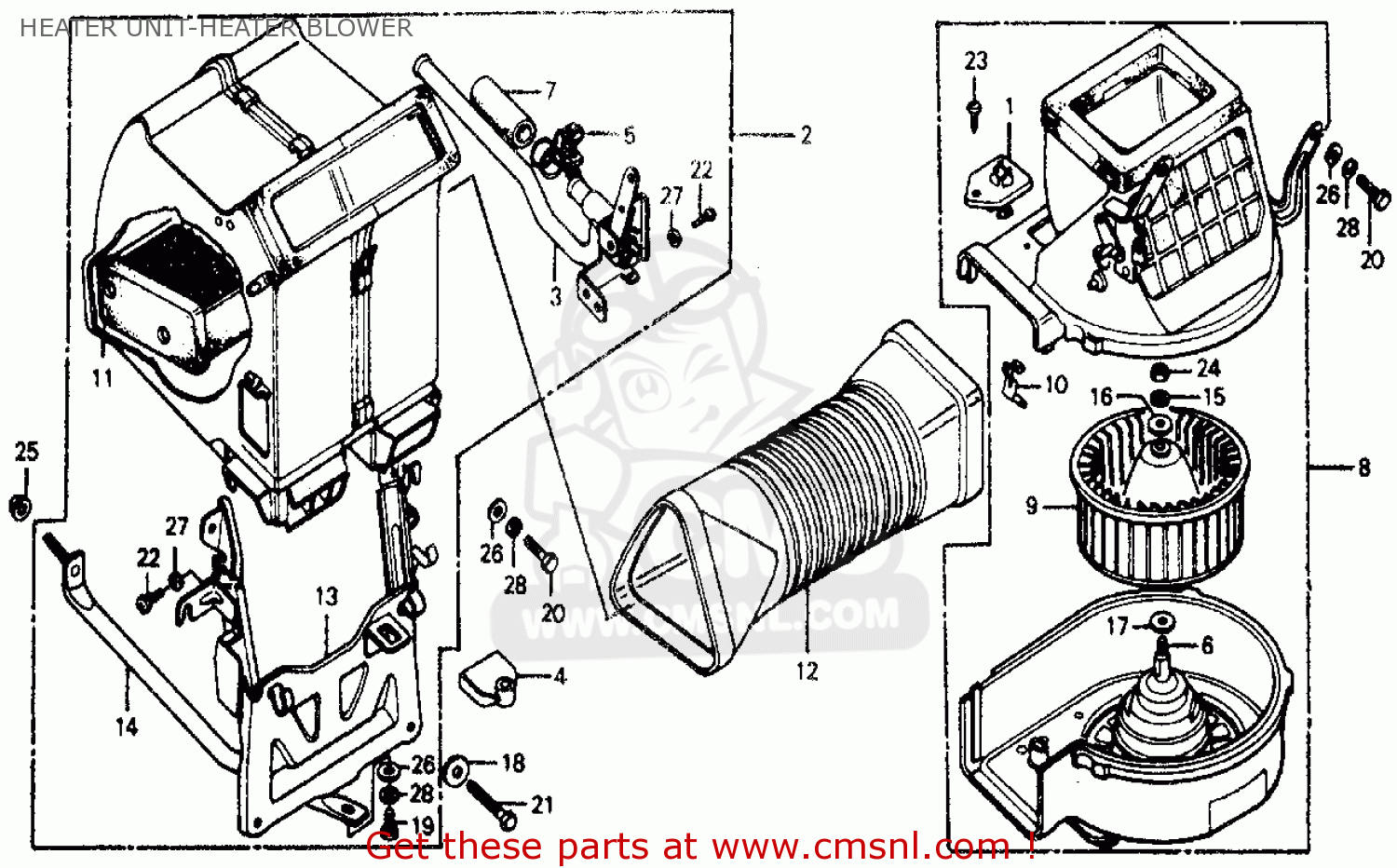

Heater unit-heater blower диаграмма ACCORD 1976 3DR STD (KA)

HEATER UNIT-HEATER BLOWER ACCORD 1976 3DR STD (KA)
HEATER UNIT-HEATER BLOWER ACCORD 1976 3DR STD (KA)
цены в EUR
ссылка
часть #
описание
количество
1
39107671000
ссылка: 1
KA
HMT 5MT
REGISTER
€ 43.00
2
39210671672
ссылка: 2
KA
2063328
HMT 5MT
HEATER UNIT
€ 453.50
3
39217671000
ссылка: 3
KA
HMT 5MT
VALVE,WATER
€ 87.00
4
39218671000
ссылка: 4
KA
HMT 5MT
HOLDER, CONTROL
€ 6.50
5
39219671000
ссылка: 5
KA
HMT 5MT
CLAMP,HOSE
€ 6.50
6
39230671671
ссылка: 6
KA
HMT 5MT
MOTOR ASSY.
€ 552.00
7
39236671000
ссылка: 7
KA
HMT 5MT
HOSE,WATER
39236671000
€ 14.00
8
39240671676
ссылка: 8
KA
HMT 5MT
BLOWER ASSY
€ 629.50
9
39242671670
ссылка: 9
KA
HMT 5MT
FAN
€ 98.00
10
39244671000
ссылка: 10
KA
HMT 5MT
CLAMP, CABLE
€ 7.50
11
39245671010
ссылка: 11
KA
HMT 5MT
EXCHANGER,HEATER
€ 580.00
12
39250671672
ссылка: 12
KA
HMT 5MT
DUCT,HEATER
€ 67.00
13
66115671670
ссылка: 13
KA
HMT 5MT
STAY
€ 41.00
14
66124671000
ссылка: 14
KA
HMT 5MT
STAY
€ 12.00
15
90503634000
ссылка: 15
KA
HMT 5MT
WASHER TOOTH 5MM
€ 0.50
16
90504634000
ссылка: 16
KA
HMT 5MT
WASHER PLAIN 5MM
€ 1.00
17
90505634000
ссылка: 17
KA
HMT 5MT
WASHER PLAIN 7MM
€ 3.50
18
91414538000
ссылка: 18
KA
HMT 5MT
WASHER, FLAT, 20MM
91414538000
€ 2.00
19
9200006012
ссылка: 19
KA
HMT 5MT
BOLT,HEX 6X12
9200006012
€ 1.00
19
92101060120A
ссылка: 19
KA
HMT 5MT
BOLT,HEX.,6X12
92101060120A
€ 1.00
20
92101060160A
ссылка: 20
KA
HMT 5MT
BOLT,HEX.,6X16
92101060160A
€ 0.50
21
920000603207
ссылка: 21
KA
HMT 5MT
BOLT, HEX. (6X32)
920000603207
€ 1.00
22
93500050100A
ссылка: 22
KA
HMT 5MT
SCREW,CROSS 5X10
93500050100A
€ 0.50
23
9390314210
ссылка: 23
KA
HMT 5MT
SCREW,4X10
€ 0.50
24
94001050000S
ссылка: 24
KA
HMT 5MT
NUT,HEX.,5MM
94001050000S
€ 1.00
25
9407008080
ссылка: 25
KA
HMT 5MT
NUT-WASH.,8MM
9407008080
€ 1.00
27
9411105000
ссылка: 27
KA
HMT 5MT
WASHER,SPG.,5MM
9411105000
€ 1.00
28
9411106000
ссылка: 28
KA
HMT 5MT
WASHER,SPRING,6MM
9411106000
€ 1.00
