CLUTCH

VS1400GLF 1993 (P) (E01 E04 E17 E21 E22 E24 E34)

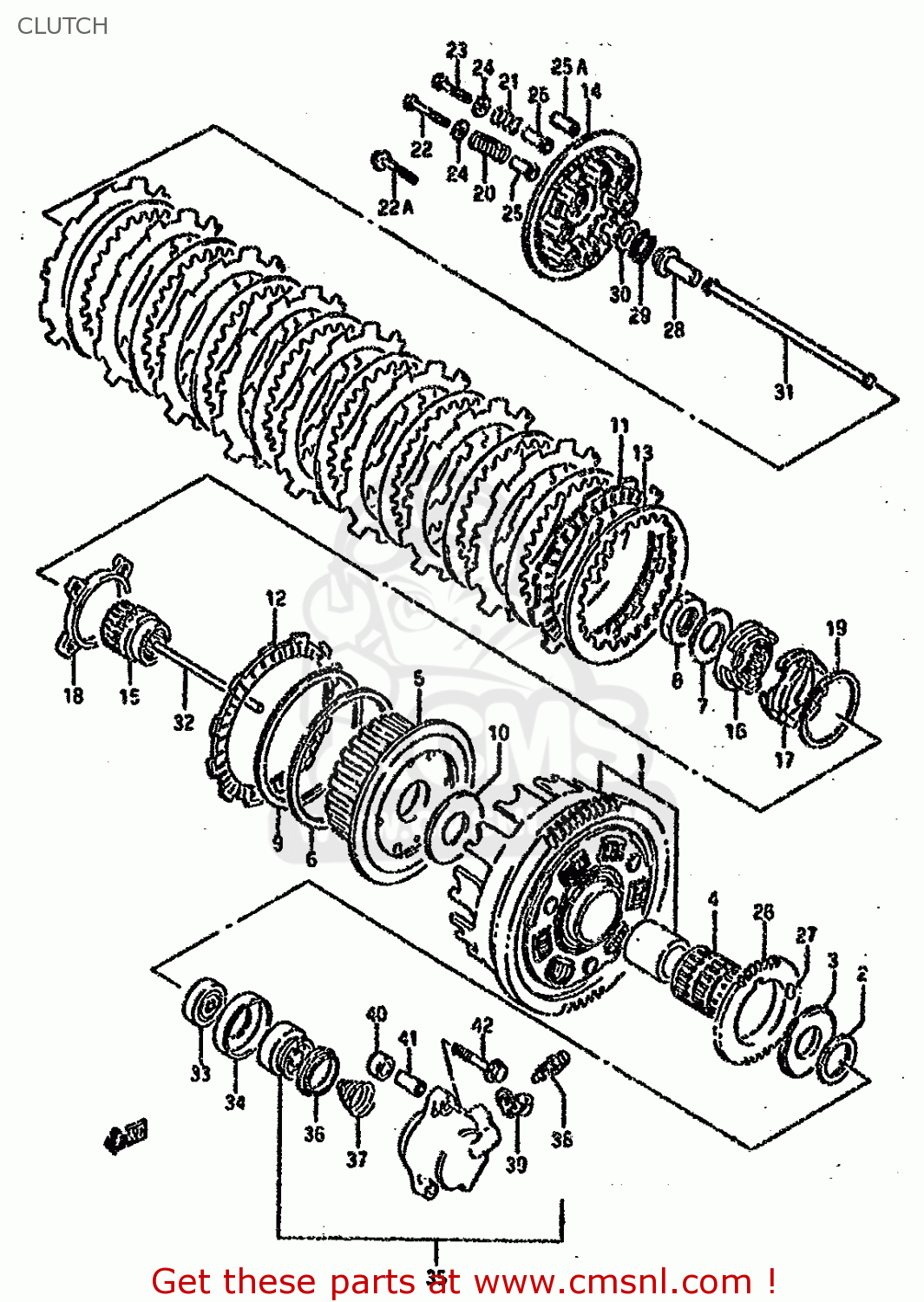

Clutch Schemat VS1400GLF 1993 (P) (E01 E04 E17 E21 E22 E24 E34)

CLUTCH VS1400GLF 1993 (P) (E01 E04 E17 E21 E22 E24 E34)
CLUTCH VS1400GLF 1993 (P) (E01 E04 E17 E21 E22 E24 E34)
ceny są w EUR
Ref
Część #
opis
Ilość
1
2120038821
Ref: 1
21200-38820
GEAR ASSEMBLY,PRIMARY DRIVE
€ 438.00
2
0916025066
Ref: 2
WASHER(25X38X2.5)
0916025066
€ 6.00
3
0916025067
Ref: 3
WASHER(25X54X2.5)
0916025067
€ 9.50
4
0926335017
Ref: 4
BEARING(35X40X35.8)
0926335017
€ 30.00
5
2141038B00
Ref: 5
HUB,CLUTCH SLEEVE
2141038B00
€ 127.00
6
2147137400
Ref: 6
SEAT,WAVE WASHER(T:1.4)
2147137400
€ 7.50
7
0916422008
Ref: 7
WASHER
€ 8.00
8
0914022011
Ref: 8
NUT
0914022011
€ 9.00
9
0916400004
Ref: 9
WASHER
0916400004
€ 7.50
10
0916025065
Ref: 10
WASHER(25X60X2.5)
€ 15.50
11
2144107A02
Ref: 11
PLATE,CLUTCH DRIVE (NAS)
2144107A02
€ 14.50
12
2144237401
Ref: 12
PLATE,CLUTCH DRIVE(T:3.5) (NAS)
2144237401
€ 11.50
13
2145105A00
Ref: 13
PLATE,CLUTCH DRIVEN (NAS)
2145105A00
€ 7.00
14
2146238B00
Ref: 14
DISC,CLUTCH PRESSURE
2146238B00
€ 49.00
15
2162138B00
Ref: 15
SPACER,CLUTCH SLEEVE HUB
2162138B00
€ 70.00
16
2611138B02
Ref: 16
CAM,CLUTCH NO.1
2611138B02
€ 56.50
17
2611238B01
Ref: 17
CAM,CLUTCH NO.2
€ 70.50
18
2161338B00
Ref: 18
SLIDER,CLUTCH SPRING
€ 61.50
19
0916054002
Ref: 19
WASHER(54X62X1)
0916054002
€ 9.00
20
0944014021
Ref: 20
SPRING
0944014021
€ 4.00
21
0944014022
Ref: 21
SPRING
0944014022
€ 4.00
22
0110706405
Ref: 22
MODEL H/J/K/L//N/P/R
BOLT
€ 2.00
22A
0911606135
Ref: 22A
MODEL S
BOLT(6X40)
0911606135
€ 2.50
23-1
0110706355
Ref: 23-1
MODEL H/J/K/L/M/N/P/
BOLT 6X35
€ 2.00
23-2
0150006353
Ref: 23-2
MODEL S
BOLT
€ 2.00
24-1
0916006092
Ref: 24-1
MODEL H/J/K/L/M/N/P/
WASHER
€ 2.50
24-2
0916006092
Ref: 24-2
MODEL S
WASHER
€ 2.50
25-1
0918006177
Ref: 25-1
~E.NO.104110
SPACER(6.4X10X22)
0918006177
€ 7.50
25-2
0918006177
Ref: 25-2
E.NO.104111~
SPACER(6.4X10X22)
0918006177
€ 7.50
25A
0918006192
Ref: 25A
E.NO.104111~
SPACER (6,1X9X24.1)
0918006192
€ 6.50
26
1632138B00
Ref: 26
NT:40
GEAR,OIL PUMP DRIVE
1632138B00
€ 57.00
27
0926106002
Ref: 27
PIN(6X6)
0926106002
€ 1.50
28
2312138B00
Ref: 28
PIECE,CLUTCH PUSH
2312138B00
€ 23.50
29
0926315003
Ref: 29
BEARING(15X28X2)
0926315003
€ 5.50
30-1
0916015015
Ref: 30-1
MODEL H/J/K/L/M/N/P
WASHER
€ 3.00
30-2
0916015045
Ref: 30-2
MODEL R/S
WASHER(15.5X28X1)
0916015045
€ 3.00
31
2311038B00
Ref: 31
Q
ROD,CLUTCH PUSH,R
2311038B00
€ 17.00
32
2311124A01
Ref: 32
ROD,CLUTCH PUSH,L
2311124A01
€ 12.00
33
0928506017
Ref: 33
SEAL,OIL(6X34X11)
0928506017
€ 9.00
34
2311738A00
Ref: 34
RETAINER,CL PUSH ROD OIL SEAL
2311738A00
€ 5.50
35
2316038B00
Ref: 35
CYLINDER,CLUTCH RELEASE
2316038B00
€ 116.00
36
2316306B00
Ref: 36
CUP
2316306B00
€ 5.00
37
2316405A00
Ref: 37
SPRING,CLUTCH CYLINDER
2316405A00
€ 3.50
38
5912101A00
Ref: 38
BLEEDER
5912101A00
€ 6.50
39
5912201A00
Ref: 39
CAP,BLEEDER
5912201A00
€ 4.00
40
0918009019
Ref: 40
SPACER(9X16X11)
€ 7.50
41
0920609011
Ref: 41
PIN(6.4X9X23)
0920609011
€ 7.50
42-1
0151706406
Ref: 42-1
MODEL H/J/K/L/M/N/P
BOLT
€ 2.00
42-2
0155006403
Ref: 42-2
MODEL R/S
BOLT
0155006403
€ 2.00
