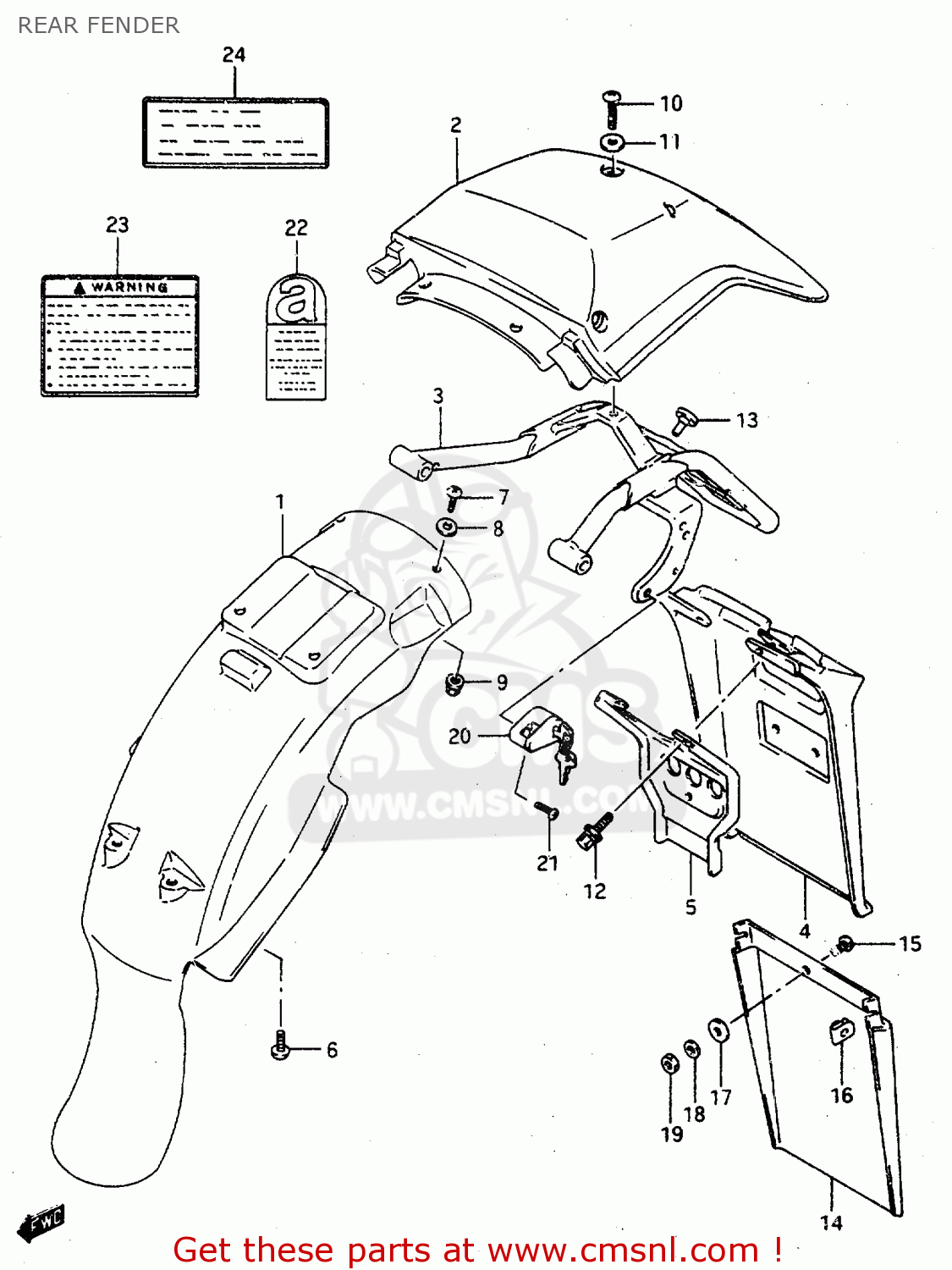

REAR FENDER
Rear fender Schemat
TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)
REAR FENDER TS125R 1992 (N) (E02 E04 E15 E17 E18 E21 E34 E53)
ceny są w EUR
1
BODY,RR FENDER FR
2-1
BODY, REAR FENDER, REAR (RED)
2-2
BODY,RR FENDER RR
2-3
BODY,RR FENDER RR
2-4
BODY, REAR FENDER, REAR (BLUE)
2-5
BODY, REAR FENDER, REAR (RED)
2-8
BODY,RR FENDER RR
3-1
REINFORCEMENT,RR FENDER
3-2
REINFORCEMENT, REAR FENDER
4-1
EXTENSION,RR FENDER
4-2
EXTENSION, REAR FENDER
5-1
REINFORCMENT,REAR FENDER
5-2
REINFORCEMENT,RR FENDER EXT
6
SCREW(6X16)
7-1
SCREW 6X12
7-2
SCREW 6X12
8
WASHER(6.5X18X1)
9-2
NUT
10
SCREW(6X25)
11
WASHER (6.5X18X2)
12-2
BOLT
13
CUSHION
14
MUDGUARD,RR FENDER RR
15
SCREW, LOWER
16
NUT
17
WASHER
18
LOCK WASHER
19
NUT
20
LOCK SET,HELMET
21
SCREW
22
LABEL,ASBESTOS WARNING
23-4
LABEL, WARNING SAFETY (SPANISH)
24-1
LABEL, UNLEADED FUEL
24-2
LABEL,CAUTION
25
LABEL, TIRE AIR PRESSURE
waluta w EUR
Uwagi: MODEL K/L FOR 14C
Uwagi: MODEL K/L/M/N/P FOR
Uwagi: MODEL K/M FOR 30HMOD
Uwagi: MODEL L/M/N FOR 0NF
Uwagi: MODEL K/L E24 FOR 14
Uwagi: MODEL K/L E24 FOR 25
Uwagi: MODEL K E24 FOR 30H
Uwagi: MODEL L E24 FOR 0NF
Uwagi: E24
Uwagi: E15,E17,E18
Uwagi: MODEL K/L/M
Uwagi: MODEL N/P/R
Uwagi: MODEL K/L/M/N/P
Uwagi: MODEL R
Uwagi: MODEL K/L/M/N/P
Uwagi: MODEL R
Uwagi: MODEL K/L/M/N/P
Uwagi: MODEL R
Uwagi: E15,E17,E18
Uwagi: E15,E17,E18
Uwagi: E15,E17,E18
Uwagi: E15,E17,E18
Uwagi: E15,E17,E18
Uwagi: E15,E17,E18
Uwagi: E2
Uwagi: E4,E21
Uwagi: E34
Uwagi: E53
Uwagi: E18
Uwagi: E15,E18
Uwagi: E2
Uwagi: WITH OUT DRAWING
Uwagi: MODEL K
Uwagi: MODEL K E4,E18,E21,E
Uwagi: MODEL L
Uwagi: MODEL L E4,E18,E21,E
Uwagi: MODEL M
Uwagi: MODEL M E4,E18,E21,E
Uwagi: MODEL N
Uwagi: M,ODEL N E4,E18,E21,
Uwagi: MODEL P
Uwagi: MODEL P E4,E18,E21
Uwagi: MODEL R
Uwagi: MODEL R E4,E18,E21WI
